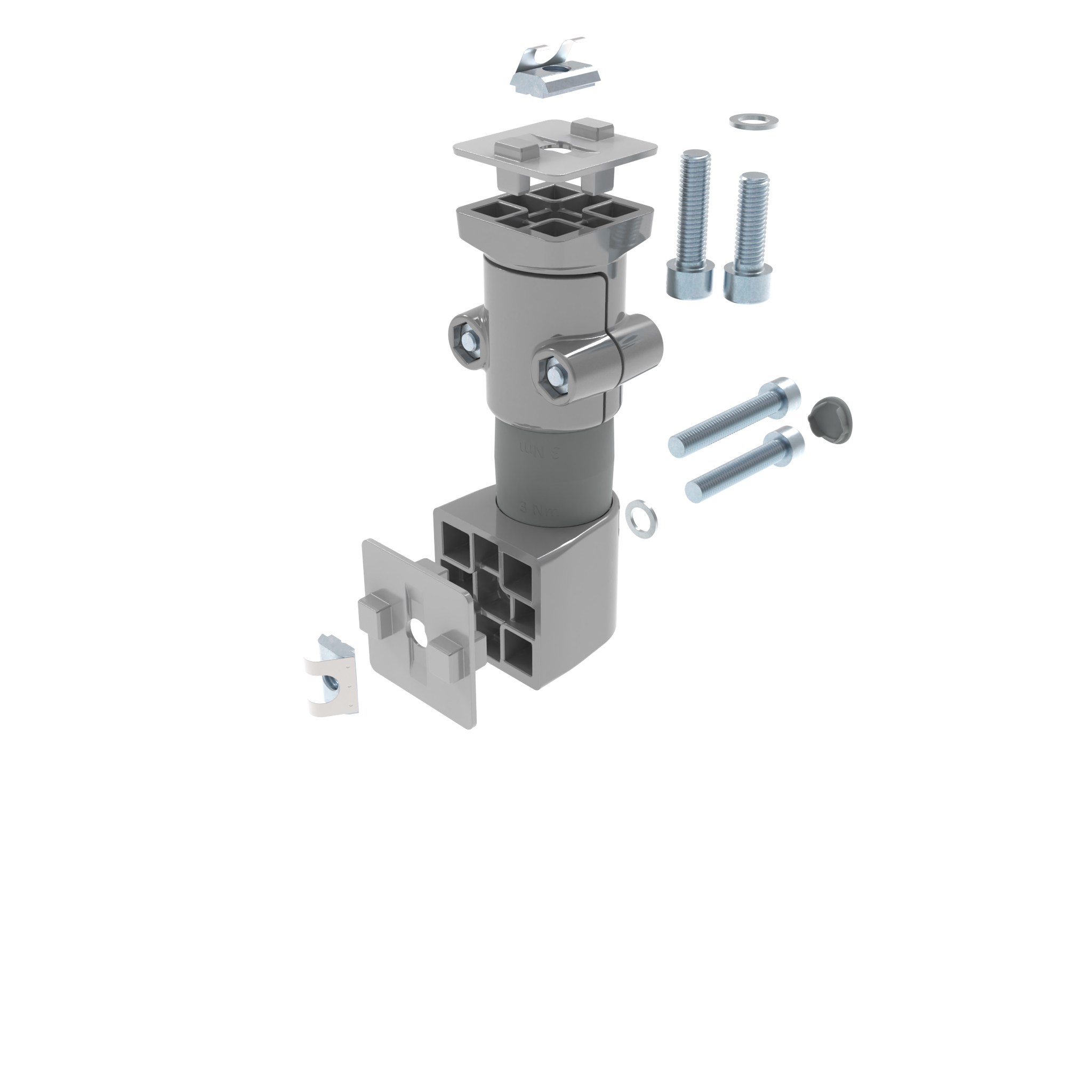

End Friction Joint B45-B40L for System Arm (Set)
Regular price:
€0.00
Part #:
061FAN4540LN10
Pack Quantity:
1 piece
Description:
Connection joint with friction for the creation of system arms using profile pieces; pivotable 360°;
End side can be attached lateral or transverse on the profile slot, friction axis is positioned at right angles to the profile;
Friction joint side can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 20 mm deep)
Connection joint with friction for the creation of system arms using profile pieces; pivotable 360°;
End side can be attached lateral or transverse on the profile slot, friction axis is positioned at right angles to the profile;
Friction joint side can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 20 mm deep)
Material:
Housing: Aluminum die-cast
Cover ring: Plastic
Inserts: Steel
Friction shaft: Steel
Cover caps: Plastic
Screws: Steel
Washers: Steel
Centering plates: Aluminum die-cast
T-slot nuts: Steel
Surface:
Housing: Powder coated
Centering plates: Powder coated
Screws: Zinc plated
Washers: Zinc plated
T-slot nuts: Zinc plated
Color:
Housing: Alu color
Cover ring: Gray ≈ RAL 7042
Cover caps: Gray ≈ RAL 7042
Centering plates: Alu color
Set:
1 end friction joint
1 cover cap,
1 screw DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side),
1 screw DIN EN ISO 4762 (DIN 912) - M8 x 25 (for T-slot nut end side),
1 screw DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side),
1 screw DIN EN ISO 4762 (DIN 912) - M8 x 30 (for core hole end side),
2 washers 8-FSt,
1 centering plate - slot 10 - 45 x 45,
1 centering plate - slot 10 - 40 x 40,
2 T-slot nuts - slot 10 - M8
Delivery Countries:
Worldwide
Housing: Aluminum die-cast
Cover ring: Plastic
Inserts: Steel
Friction shaft: Steel
Cover caps: Plastic
Screws: Steel
Washers: Steel
Centering plates: Aluminum die-cast
T-slot nuts: Steel
Surface:
Housing: Powder coated
Centering plates: Powder coated
Screws: Zinc plated
Washers: Zinc plated
T-slot nuts: Zinc plated
Color:
Housing: Alu color
Cover ring: Gray ≈ RAL 7042
Cover caps: Gray ≈ RAL 7042
Centering plates: Alu color
Set:
1 end friction joint
1 cover cap,
1 screw DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side),
1 screw DIN EN ISO 4762 (DIN 912) - M8 x 25 (for T-slot nut end side),
1 screw DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side),
1 screw DIN EN ISO 4762 (DIN 912) - M8 x 30 (for core hole end side),
2 washers 8-FSt,
1 centering plate - slot 10 - 45 x 45,
1 centering plate - slot 10 - 40 x 40,
2 T-slot nuts - slot 10 - M8
Delivery Countries:
Worldwide
