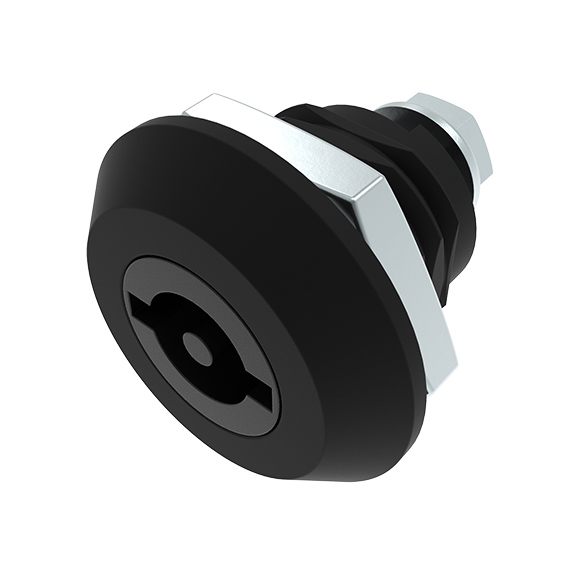

Extended Housing Quarter Turn Lock 22.5 / 18, PA
Regular price:
€0.00
Part #:
0810763
Pack Quantity:
10 pieces
Product information "Extended Housing Quarter Turn Lock 22.5 / 18, PA"
Color:
Insert: Black
Housing: Black
Seals: Black
Delivery Countries:
North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, Bulgaria
Description:

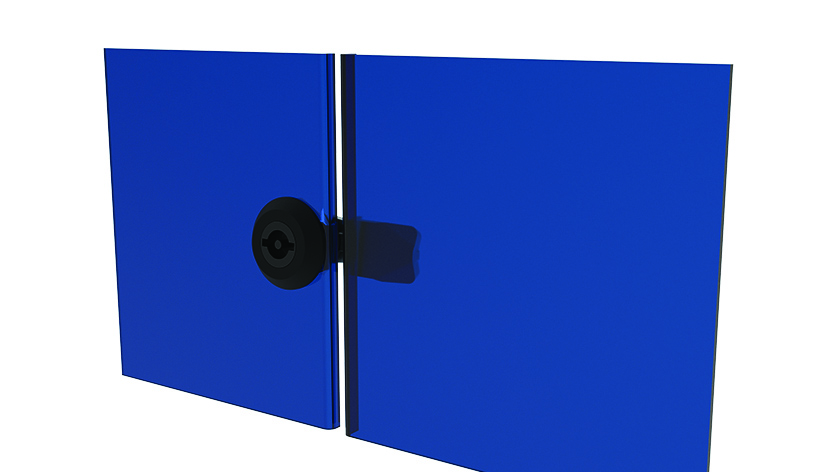

For easy and secure latching and locking of doors and flaps with padlock option;
Wide range of inserts, cams and accessories;
Two and four padlock holes
Material:
Insert: Zinc die-cast
Housing: Plastic PA
Seals: Rubber NBR
Nut: Zinc die-cast
Screw: Steel
Surface:
Insert: Powder coated
Nut: Zinc plated
Screw: Zinc plated
Tip:
Compatible Cams see 0810247 et sq.
Accessories see 0890032 et sq.
Insert: Black
Housing: Black
Seals: Black
Delivery Countries:
North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, Bulgaria
Description:
For easy and secure latching and locking of doors and flaps with padlock option;
Wide range of inserts, cams and accessories;
Two and four padlock holes
Material:
Insert: Zinc die-cast
Housing: Plastic PA
Seals: Rubber NBR
Nut: Zinc die-cast
Screw: Steel
Surface:
Insert: Powder coated
Nut: Zinc plated
Screw: Zinc plated
Tip:
Compatible Cams see 0810247 et sq.
Accessories see 0890032 et sq.
| Pack Quantity: | 10 pieces |
|---|---|
| Customs Tariff Number Export: | 83014090 |
| Door Version: | Right, left |
| Weight (g): | 40.3 |
| ECLASS 6.0: | 23199090 |
| ECLASS 7.0: | 23199090 |
| ECLASS 8.0: | 23199090 |
| ECLASS 9.0: | 23199090 |
| ECLASS 10.0: | 23199090 |
| ECLASS 11.0: | 23199090 |
| ECLASS 12.0: | 23199090 |
| ECLASS 13.0: | 23199090 |
| ERP Number: | 139028 |
| Zolltarifnummer: | 83014090000 |
