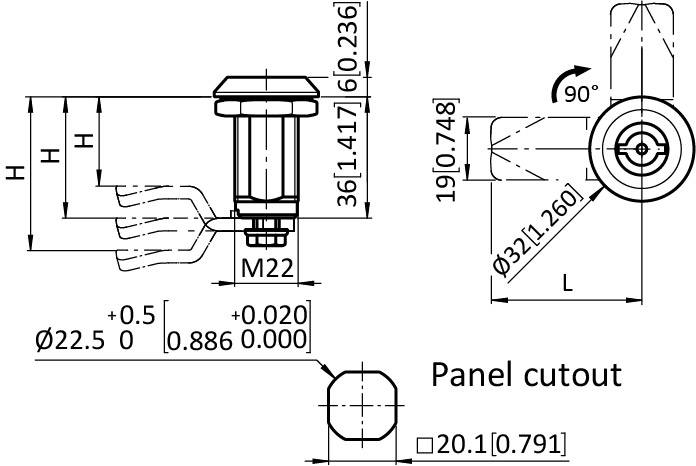

Extended Housing Quarter Turn Lock 22.5 / 36, PA

Description:

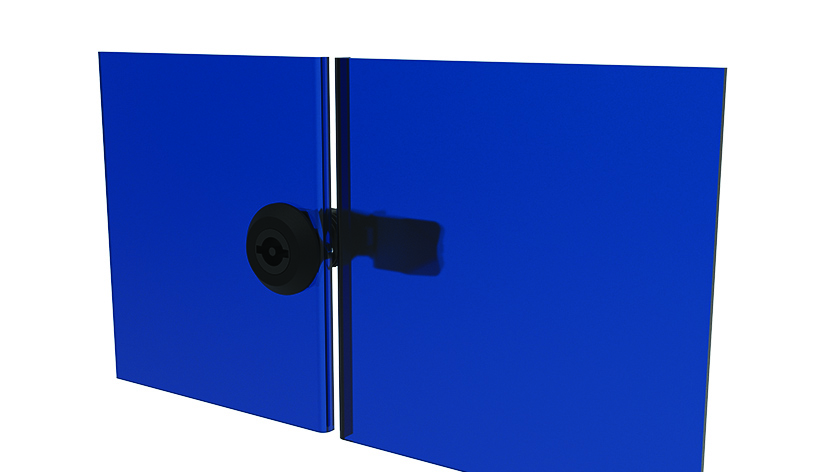

For easy and secure latching and locking of doors and flaps with padlock option;
Wide range of inserts, cams and accessories;
Two and four padlock holes

Material:
Insert: Zinc die-cast
Housing: Plastic PA
Seals: Rubber NBR
Extender: Zinc die-cast
Nut: Zinc die-cast
Screw: Steel

Surface:
Insert: Powder coated
Extender: Zinc plated
Nut: Zinc plated
Screw: Zinc plated

Color:
Insert: Black
Housing: Black
Seals: Black

Tip:
Compatible Cams see 0810247 et sq.
Accessories see 0890032 et sq.

Delivery Countries:
North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, Bulgaria

Pack Quantity:	10 pieces
Weight (g):	61.1
Door Version:	Right, left
ERP Number:	139191

Variants

Part #	Insert type	CAD

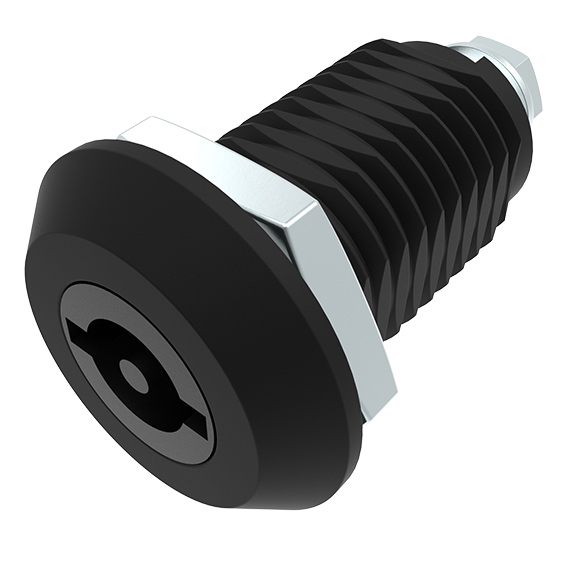

0810867	Double bit 3.0 mm
0810875	Double bit 4.0 mm
0810883	Double bit 5.0 mm
0810891	Slotted recess 2 x 4
0810899	Slotted recess 2 x 4 coin proof
0810907	Triangular 7.0 mm
0810915	Triangular 8.0 mm
0810923	Square 7.0 mm
0810931	Square 8.0 mm
0810939	Square 7.0 mm with slotted recess
0810947	Square 8.0 mm with slotted recess
0810955	Square 8.0 mm female
0810963	Female hexagon 8.0 mm
0810971	Female hexagon 9.0 mm
0810979	Female hexagon 8.0 mm with 3 mm pin
0810987	Male hexagon 10.0 mm
0810995	Triangular 10.0 mm with M5 screw hole
