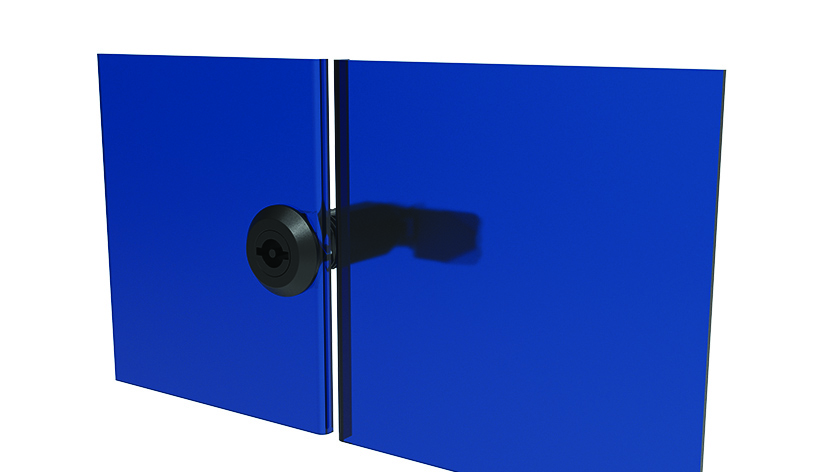

Extended Housing Quarter Turn Lock 22.5 / 60, ZN Black
€0.00
Part #:
0850057
Pack Quantity:
10 pieces
Product information "Extended Housing Quarter Turn Lock 22.5 / 60, ZN Black"
Color:
Insert: Black
Housing: Black
Seals: Black
Delivery Countries:
North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, Bulgaria
Description:
For easy and secure latching and locking of doors and flaps with padlock option;
Wide range of inserts, cams and accessories;
Two and four padlock holes
Material:
Insert: Zinc die-cast
Housing: Zinc die-cast
Seals: Rubber NBR
Extender: Zinc die-cast
Nut: Zinc die-cast
Screw: Steel
Surface:
Insert: Powder coated
Housing: Powder coated
Extender: Zinc plated
Nut: Zinc plated
Screw: Zinc plated
Tip:
Compatible Cams see 0810247 et sq.
Accessories see 0890032 et sq.
Insert: Black
Housing: Black
Seals: Black
Delivery Countries:
North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, Bulgaria
Description:
For easy and secure latching and locking of doors and flaps with padlock option;
Wide range of inserts, cams and accessories;
Two and four padlock holes
Material:
Insert: Zinc die-cast
Housing: Zinc die-cast
Seals: Rubber NBR
Extender: Zinc die-cast
Nut: Zinc die-cast
Screw: Steel
Surface:
Insert: Powder coated
Housing: Powder coated
Extender: Zinc plated
Nut: Zinc plated
Screw: Zinc plated
Tip:
Compatible Cams see 0810247 et sq.
Accessories see 0890032 et sq.
| Pack Quantity: | 10 pieces |
|---|---|
| Customs Tariff Number Export: | 83014090 |
| Door Version: | Right, left |
| Weight (g): | 149.3 |
| (ECLASS 6.0): | 23199090 |
| (ECLASS 7.0): | 23199090 |
| (ECLASS 8.0): | 23199090 |
| (ECLASS 9.0): | 23199090 |
| (ECLASS 10.0): | 23199090 |
| (ECLASS 11.0): | 23199090 |
| (ECLASS 12.0): | 23199090 |
| (ECLASS 13.0): | 23199090 |
| ERP Number: | 140309 |
| Zolltarifnummer: | 83014090000 |
