FIFO Monorail Rail 40
Product number:
02082PO.2400
Product information "FIFO Monorail Rail 40"
Delivery Countries:
Worldwide
Description:

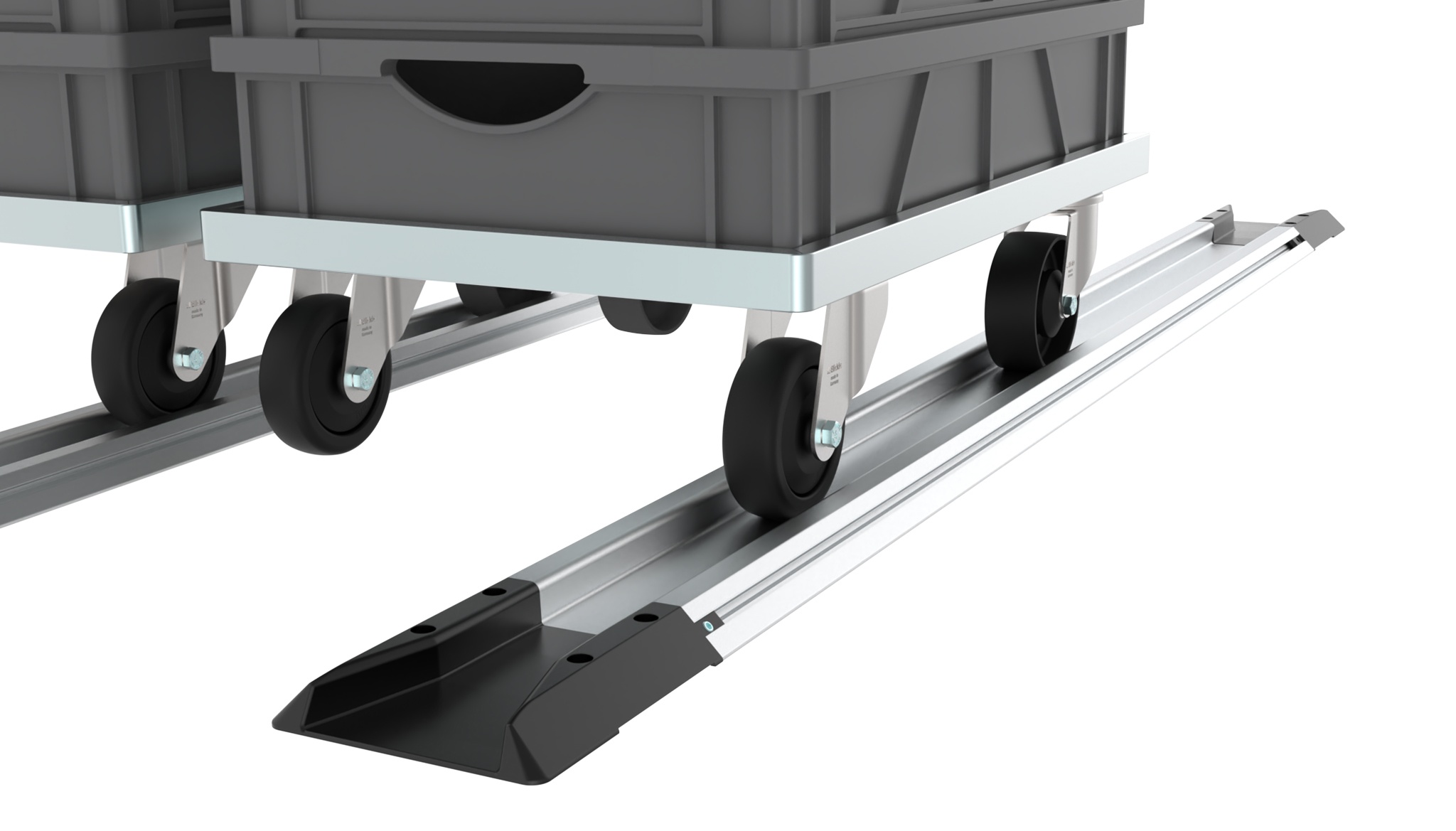

For guiding floor dollys on one side in FIFO stations, with a wheel width of up to 40 mm

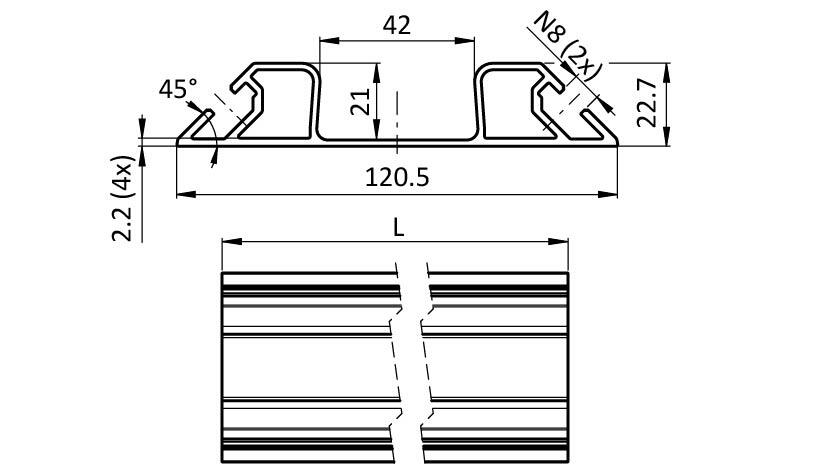

2 slots at the top, set at 45°; closed back side for optional full-surface adhesion to the floor
To extend two guiding rails, connect them face to face with connecting strip in the slots; posts can be mounted in the slot from above
Material:
Aluminum
Surface:
Anodized
Tip:
Compatible Connecting Strip see 096010S11
Compatible Infeed Cap for FIFO Monorail Rail (set) see 2082CCS02
Compatible Monorail Angle Connector for Post see 093WS30145S01
Compatible Mounting Set for Posts Support Struts see 93WS30145S02
Compatible Cover Profiles see 092050
Zolltarifnummer:
76042990900
Worldwide
Description:
For guiding floor dollys on one side in FIFO stations, with a wheel width of up to 40 mm
2 slots at the top, set at 45°; closed back side for optional full-surface adhesion to the floor
To extend two guiding rails, connect them face to face with connecting strip in the slots; posts can be mounted in the slot from above
Material:
Aluminum
Surface:
Anodized
Tip:
Compatible Connecting Strip see 096010S11
Compatible Infeed Cap for FIFO Monorail Rail (set) see 2082CCS02
Compatible Monorail Angle Connector for Post see 093WS30145S01
Compatible Mounting Set for Posts Support Struts see 93WS30145S02
Compatible Cover Profiles see 092050
Zolltarifnummer:
76042990900
| (ECLASS 6.0): | 21070390 |
|---|---|
| (ECLASS 7.0): | 21079290 |
| (ECLASS 8.0): | 21079290 |
| (ECLASS 9.0): | 21079290 |
| (ECLASS 10.0): | 21079290 |
| (ECLASS 11.0): | 21070490 |
| (ECLASS 12.0): | 21070490 |
| (ECLASS 13.0): | 21070490 |
| Model: | Aluminum, anodized |
| Pack Quantity: | 1 set (= 4 pieces) |
| Weight (g): | 13988.0 |
