Fixation Block 18, Gray

Product information "Fixation Block 18, Gray"

Color:
Gray ≈ RAL 7042

Delivery Countries:
Worldwide

Description:

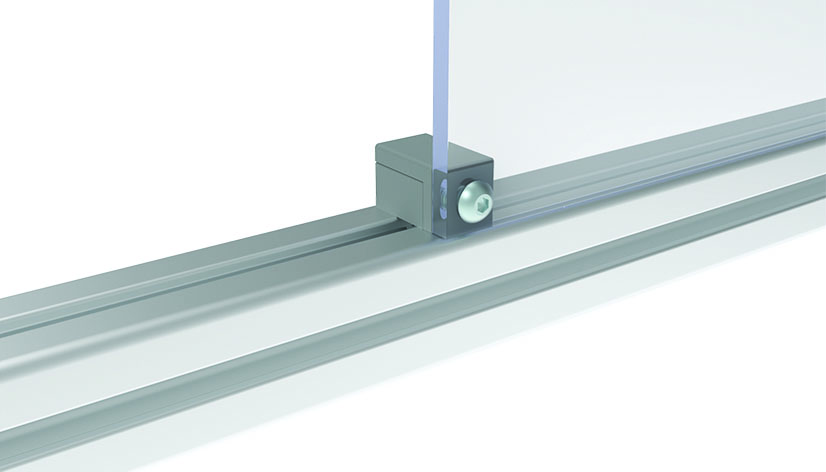

To attach panels easily to aluminum profiles

Material:
Block: Plastic PA, glass fiber reinforced
Nut: Zinc plated steel

Specials:
Customized hammer, other colors on request

Tip:
* A1 size with spacer!

Zolltarifnummer:
39269097900
(ECLASS 6.0): 23369290
(ECLASS 7.0): 23369290
(ECLASS 8.0): 23369290
(ECLASS 9.0): 23369290
(ECLASS 10.0): 23369290
(ECLASS 11.0): 23360492
(ECLASS 12.0): 23360492
(ECLASS 13.0): 23360492
Model: Plastic PA
Pack Quantity: 100 pieces
Weight (g): 5.0

Variants

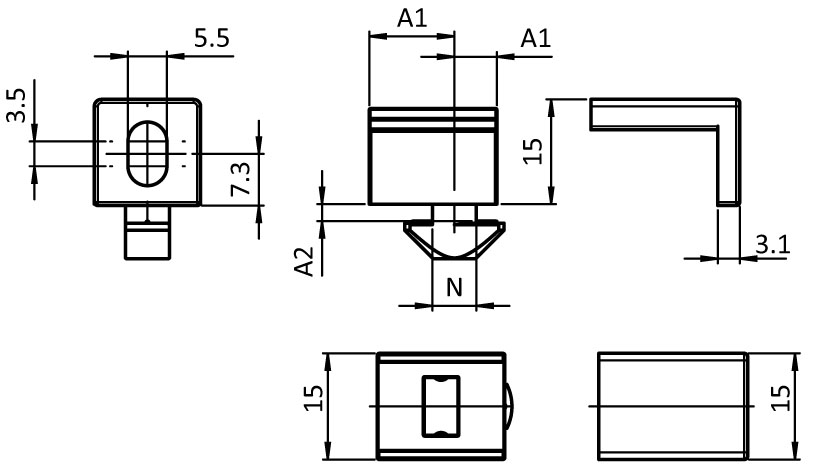

Product ID A2 (Profile) (mm) Profile Slot N (mm) M A1 (mm)
094501M5S01 2.7 (3.0) I 6 M5 6.0 / 9.0* / 12.0 / 15.0*
