Fixed Caster with Lifting Foot

Description:
Reliable and quiet fixed caster, trackless
With ball bearings and thread guard, integrated mounting plate for fixation to aluminum profiles with modular dimension 40 and 45mm without overhang
No additional transport and base plate needed;

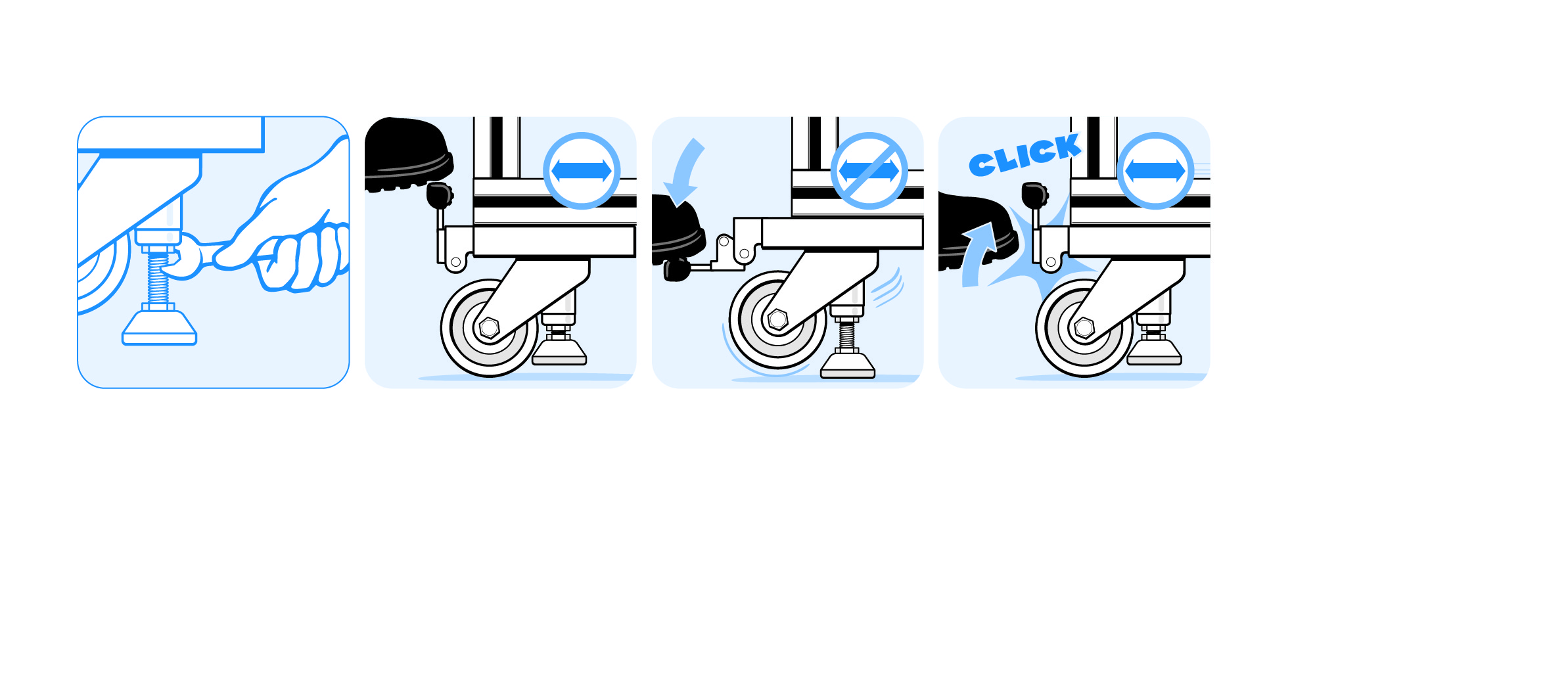

Roller movement locking by temporary positioning on lifting foot, actuation of the height adjustment of the lifting foot via foot pedal on the fixed caster housing

Material:
Die-cast aluminum / steel
Thread: See table
Wheel body: See table
Mounting plate: Steel
Leveling foot: Steel / zinc / TPE
Foot pedal: Plastic PUR / steel

Surface:
Housing: Powder coated / zinc plated
Mounting plate: Zinc plated
Leveling foot: Zinc plated
Foot pedal: Zinc plated

Color:
Housing: Alu color
Tread: See table
Wheel body: See table
Foot pedal: Black

Specials:
Other kinds of wheels, other colors, other surfaces on request

Delivery Countries:
Worldwide

Pack Quantity:	1 piece
Model:	With mounting plate
Weight (g):	2172.2
ERP Number:	152620
Old Part #:	098FF080EHF134110ESD

Variants

Part #	D (mm)	H (mm)	ESD	Max. Load (N)	Wheel Body	Fixed Caster Tread
098FF080AF134110	80	125	-	2500	PA, natural white	PA, white
098FF080EHF134110	80	125	-	1800	Aluminum die-cast, silver gray	PU, yellow
098FF080EHF134110-	80	125	ESD	1800	Aluminum die-cast, silver gray	PU, green
098FF080GF134110	80	125	-	1700	PA, black	Solid rubber, black
098FF080UF134110	80	125	-	1500	PA, gray ≈ RAL 7001	PU, black
098FF080UF134110-	80	125	ESD	1000	PA, gray ≈ RAL 7001	PU, black
098FF100AF134110	100	145	-	2500	PA, natural white	PA, white
098FF100EHF134110	100	145	-	2500	Aluminum die-cast, silver gray	PU, yellow
098FF100EHF134110-	100	145	ESD	2500	Aluminum die-cast, silver gray	PU, green
098FF100GF134110	100	145	-	2000	PA, black	Solid rubber, black
098FF100UF134110	100	145	-	2000	PA, gray ≈ RAL 7001	PU, black
098FF100UF134110-	100	145	ESD	1300	PA, gray ≈ RAL 7001	PU, black
