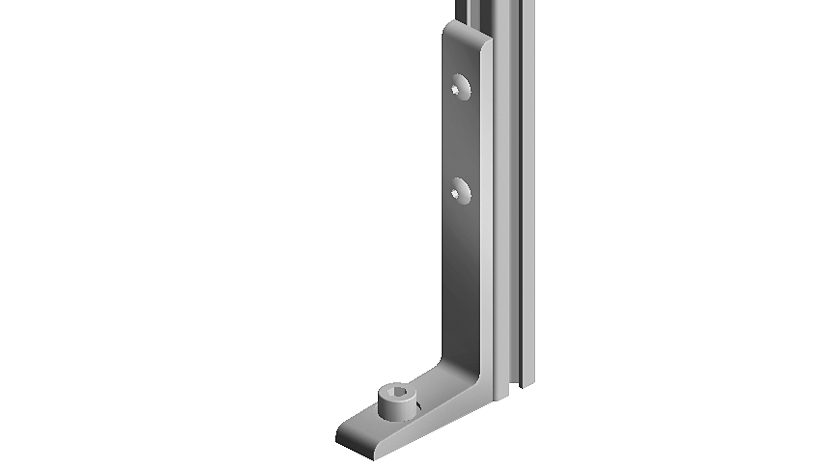

Floor Bracket AL 140, 1 Slot Version

Product information "Floor Bracket AL 140, 1 Slot Version"

Delivery Countries:
Worldwide

Description:
To securely fix aluminum profiles to the floor

Material:
Aluminum

Surface:
Anodized

Zolltarifnummer:
76169910990

(ECLASS 6.0):	23360290
(ECLASS 7.0):	23360290
(ECLASS 8.0):	23360290
(ECLASS 9.0):	23360290
(ECLASS 10.0):	23360290
(ECLASS 11.0):	23360290
(ECLASS 12.0):	23360290
(ECLASS 13.0):	23360290
Model:	Aluminum
Pack Quantity:	10 pieces
Weight (g):	111.0

Variants

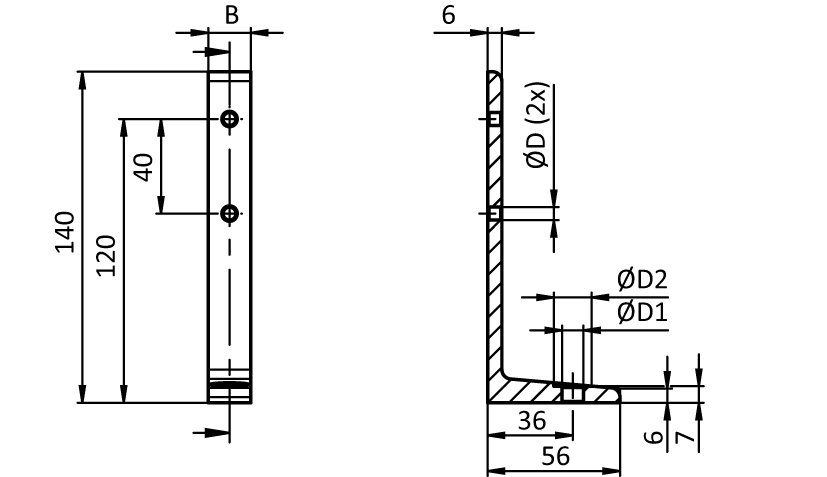

Product ID	ØD1 (mm)	ØD (mm)	ØD2 (mm)	Grid	B (mm)
093BA14020		5.5		20	18.0
093BA14025		7.0		25.4 (1")	23.0 (0.91")
093BA14030		7.0	22.0	30	27.0
093BA14038	13.5	9.0	28.0	38.1 (1.5")	34.0 (1.3")
093BA14040	13.5	9.0	28.0	40	36.0
093BA14045	13.5	9.0	29.5	45	41.0
