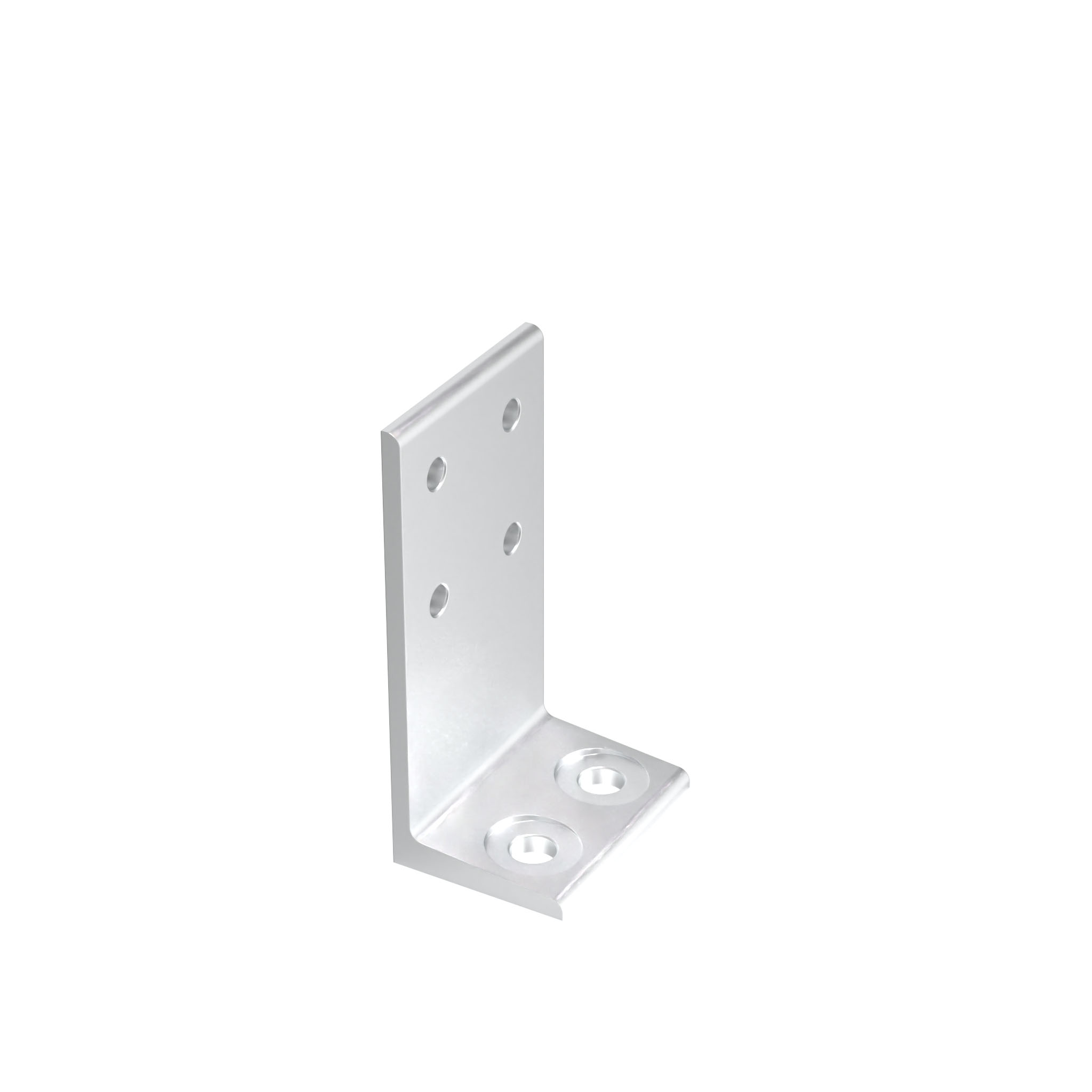

Floor Bracket AL 140, 2 Slots Version

Product information "Floor Bracket AL 140, 2 Slots Version"

Delivery Countries:
Worldwide

Description:
To securely fix aluminum profiles to the floor

Material:
Aluminum

Surface:
Anodized

Zolltarifnummer:
76169910990
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Model: Aluminum
Pack Quantity: 10 pieces
Weight (g): 236.0

Variants

Product ID ØD1 (mm) ØD2 (mm) B (mm) A (mm) ØD (mm) Grid
093BA140D40 38.0 20.0 5.5 20
093BA140D51 48.0 (1.89") 25.4 (1") 7.0 25.4 - (1")
093BA140D60 22.0 57.0 30.0 7.0 30
093BA140D76 13.5 28.0 72.0 (2.8") 38.1 (1.5") 9.0 76.2 (3")
093BA140D80 13.5 28.0 76.0 40.0 9.0 40
093BA140D90 13.5 28.0 86.0 45.0 9.0 45
