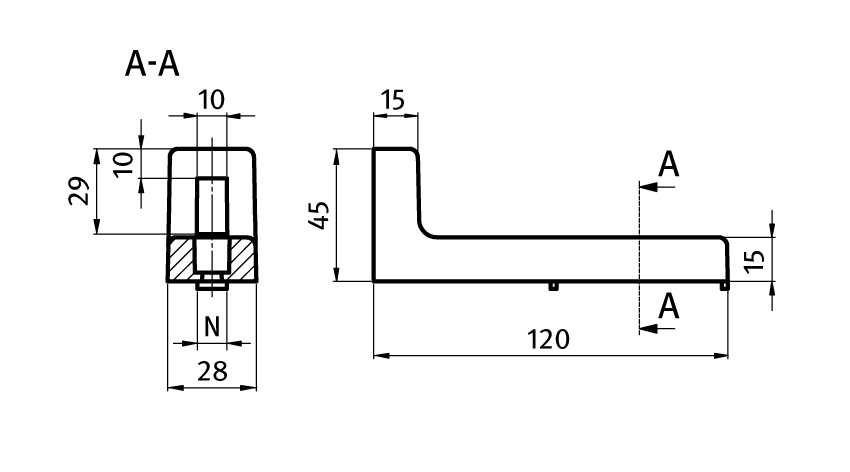

Floor Bracket ZN 120

Product information "Floor Bracket ZN 120"

Assembly Set:
1 floor bracket 120,
1 T-slot nut - Nut 6 - M6,
1 screw DIN EN ISO 7380 (DIN 34805) - M6 x 60

Color:
Black, alu color, -

Delivery Countries:
Worldwide

Description:

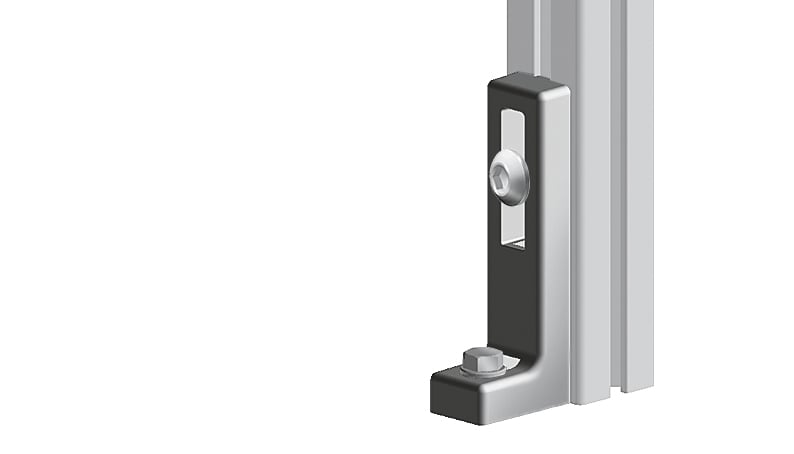

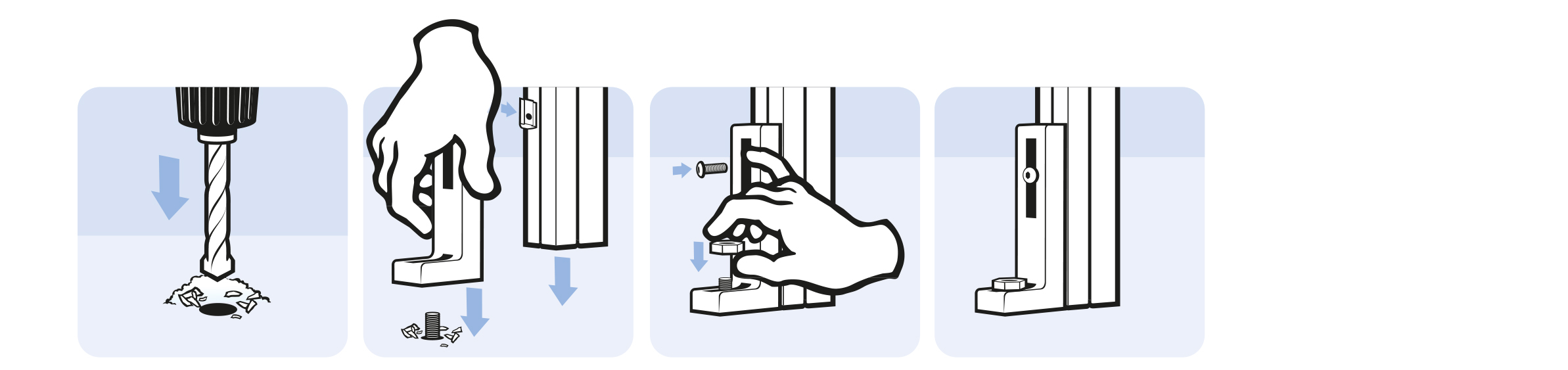

To securely fix aluminum profiles to the floor

Material:
Floor bracket: Zinc die-cast
Assembly set: Steel

Specials:
Other surfaces, other colors on request

Surface:
Floor bracket: Plain / powder coated
Assembly set: Zinc plated
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Customs Tariff Number Export: 79070000
Model: Zinc die-cast, profile 30 and up
Pack Quantity: 10 pieces / 10 set
Pack Quantity (1): 1
Weight (g): 190.0
Zolltarifnummer: 79070000900
pA Number: 100545

Variants

Product ID Slot N (mm) Surface Fig. Color
093B1201N06A 6 Powder coated Alu color
093B1201N06R 6 Plain
093B1201N06S 6 Powder coated Black
093B1201N06SS02 6 Powder coated Black
093B1201N08R 8 Plain
093B1201N08S 8 Powder coated Black
093B1201N10R 10 Plain
093B1201N10S 10 Powder coated Black
