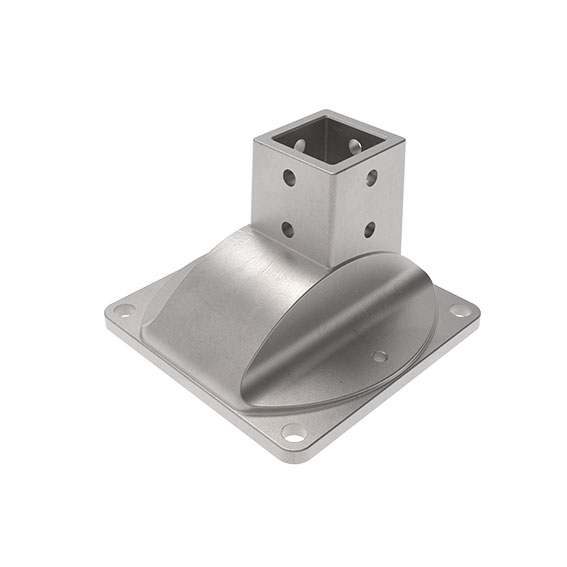

Floor Mount Base

€0.00

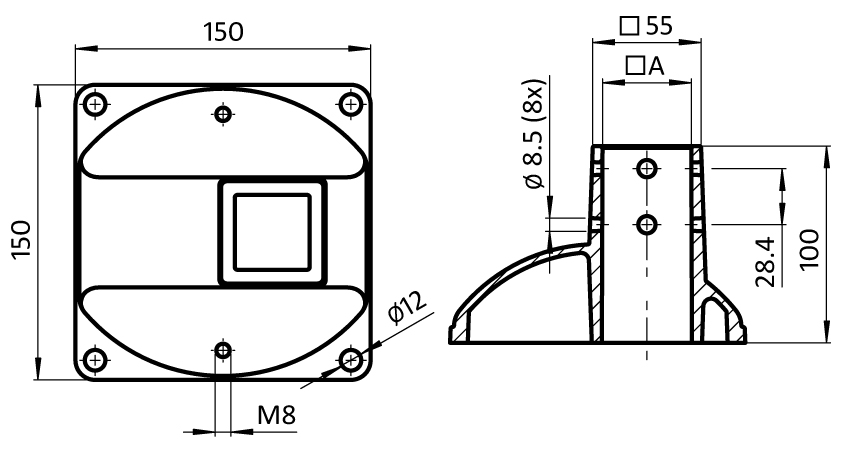

A (mm)

38.3 (1.51")

40.3

45.3

Modular Dimension (mm)

38.1 (1.5")

40

45

Part #: 098G40150A

Pack Quantity: 10 pieces

Product information "Floor Mount Base"

Delivery Countries:
Worldwide / North America

Description:

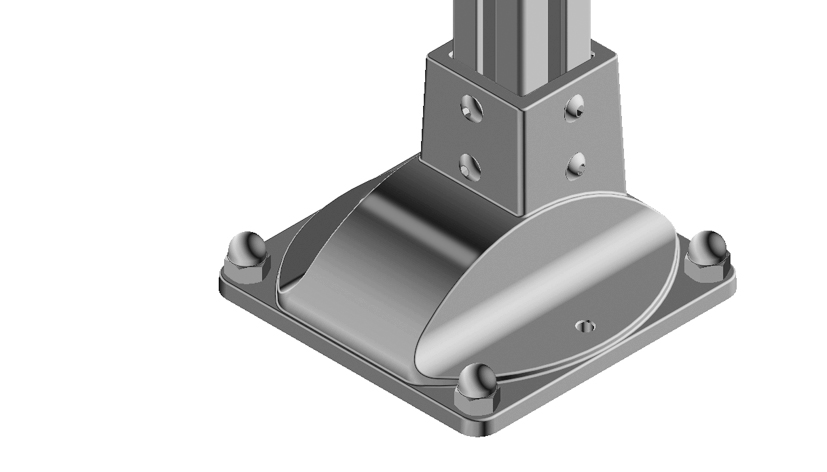

To mount aluminum profiles as posts

Material:
Aluminum die-cast

Surface:
Plain

Tip:
Compatible Double T-Slot Nut for Floor Mount Base see 096060S54

Pack Quantity:	10 pieces
Model:	Aluminum die-cast
Weight (g):	940.0
ERP Number:	104781

Variants

Part #	A (mm)	Modular Dimension (mm)
098G38150A	38.3 (1.51")	38.1 (1.5")
098G40150A	40.3	40
098G45150A	45.3	45

CAD Downloads

Classifications

ECLASS 6.0: 23369290
ECLASS 7.0: 23369290
ECLASS 8.0: 23369290
ECLASS 9.0: 23369290
ECLASS 10.0: 23369290
ECLASS 11.0: 23360192
ECLASS 12.0: 23360192
ECLASS 13.0: 23360192
Zolltarifnummer: 76109090950
Customs Tariff Number Export: 76109090

Certificates

Tags

Profile Type	Profile Type B, Profile Type I
Modular Dimension	Modular Dimension 40
Profile Form	T-slot Profiles

Matching accessories

Double T-slot Nut for Floor Mount Base

H (mm): 9.6 Profile: I B (mm): 17.0 Slot N (mm): 8

Delivery Countries:WorldwideDescription:Compatible Double T-Slot Nut for Floor Mount Base see 096060S54Material:Double T-slot nut: Steel Ball: Stainless steel Spring: Spring steelSpecials:Different lengths with multiple threads in different sizes available on requestSurface:Double T-slot nut: Zinc-plated Ball: Plain Spring: PlainTip:Compatible Floor Mount Base see 098G38150A
