Folding Door Element (Set)

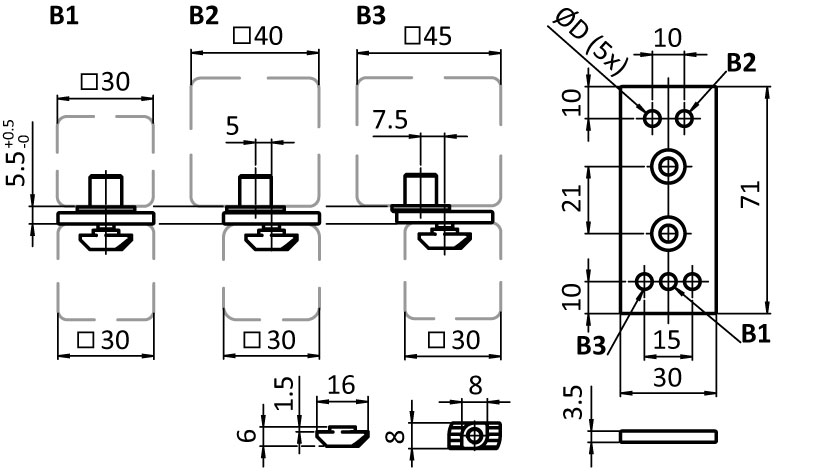

Folding Door Element (Set) – technical drawing

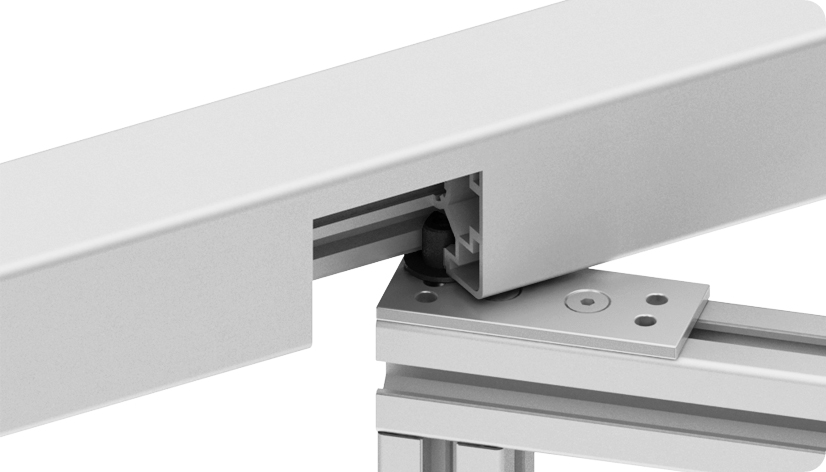

Folding Door Element (Set) – application example

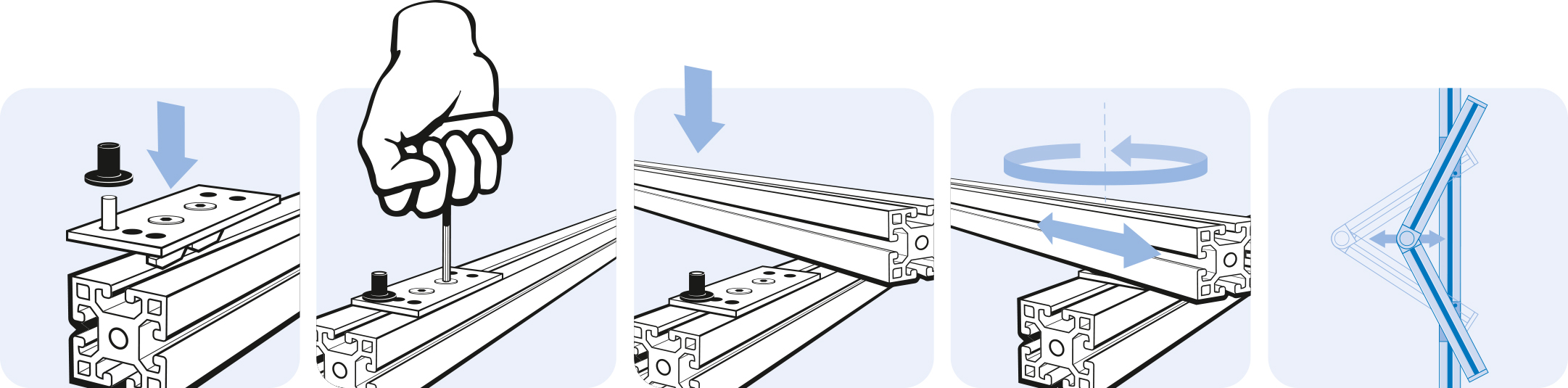

Folding Door Element (Set) – assembly graphic

€0.00

Profile

B

ØD (mm)

4.9

Part #: 093FDE30N0810

Pack Quantity: 10 pieces

Description:
To assemble folding doors, simultaeous turning and sliding movement; guide bush can be inserted in different positions for slot 8 and 10; high quality design

Material:
Folding door element: Aluminum
Screws: Steel
Hammer nuts: Steel
Pin: Steel
Guide bushes: POM

Surface:
Folding door element: Anodized
Screws: Zinc plated
Hammer nuts: Zinc plated
Pin: Zinc plated

Color:
Guide bushes: Black

Set:
1 folding door element,
2 screws DIN EN ISO 10642 (DIN 7991) - M5 x 10,
2 hammer nuts - slot 8 - M5,
1 pin DIN EN ISO 2338 (DIN 7) - D5 x 14,
1 guide bush - slot 8,
1 guide bush - slot 10

Specials:
Other surfaces on request

Delivery Countries:
Worldwide
