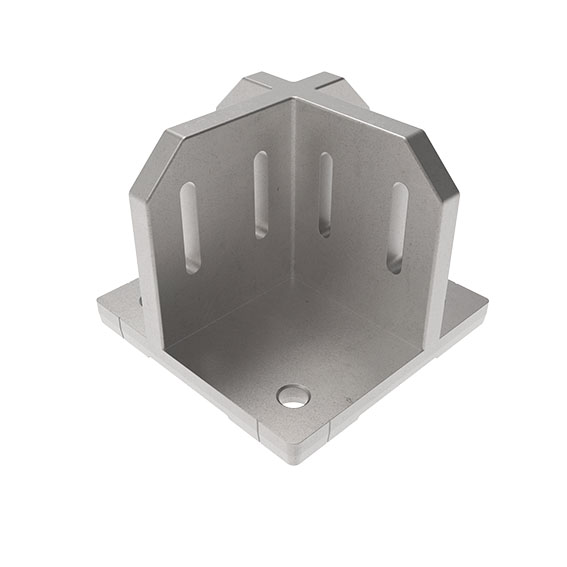

Foot Console 45 / 90 - 150
€0.00
Product information "Foot Console 45 / 90 - 150"
Worldwide
Description:

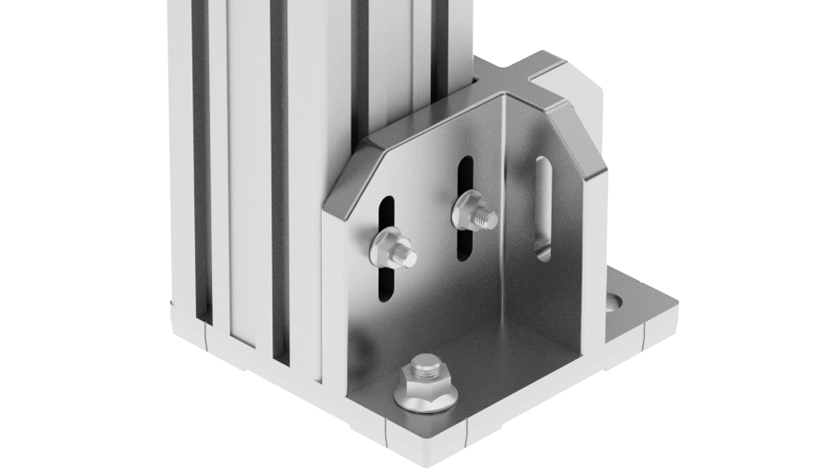

To mount aluminum profiles as posts
Material:
Aluminum die-cast
Surface:
Plain
Tip:

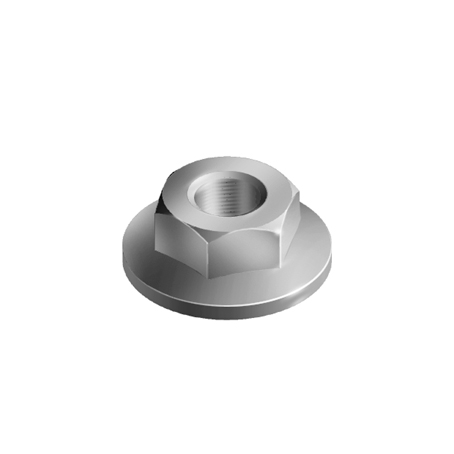

Compatible Hammer Screw see 096HK1045M0830; Compatible Flange Nut see 340ME154
| Pack Quantity: | 10 pieces |
|---|---|
| Model: | Aluminum die-cast |
| Weight (g): | 1719.0 |
| ERP Number: | 134083 |
Classifications
- ECLASS 6.0
- 23369290
- ECLASS 7.0
- 23369290
- ECLASS 8.0
- 23369290
- ECLASS 9.0
- 23369290
- ECLASS 10.0
- 23369290
- ECLASS 11.0
- 23360192
- ECLASS 12.0
- 23360192
- ECLASS 13.0
- 23360192
- Zolltarifnummer
- 76169910990
- Customs Tariff Number Export
- 76169910
Certificates
Matching accessories

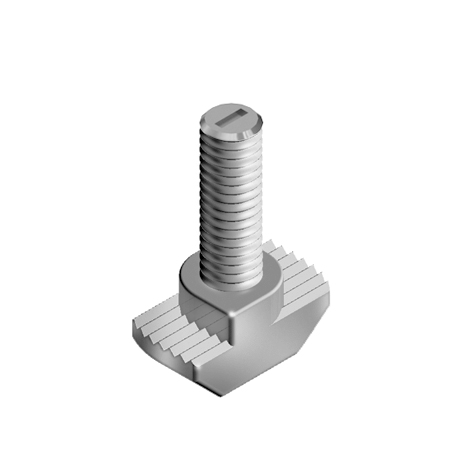

Delivery Countries:WorldwideDescription:To fasten components to profiles, breakes the anodized coat of the profile - thus ensuring a safe, electrically ESD conductive connectionMaterial:Steel / stainless steel SS316Specials:Turning help: Polyamide thread locking dot on request Surface: With dry film lubrication, zinc-nickel plated or with zinc lamellar plating on requestSurface:Zinc plated / plainTip:Compatible Flange Nut see 340ME154 *Made of hammer nut with glued threaded rod
Delivery Countries:WorldwideDescription:To be used in conjunction with a hammer head screwMaterial:Steel / stainless steelSurface:Zinc plated / plain
