Foot Console ST 40 x 80 / 45 x 90 - 105 x 155 / 110 x 165

New

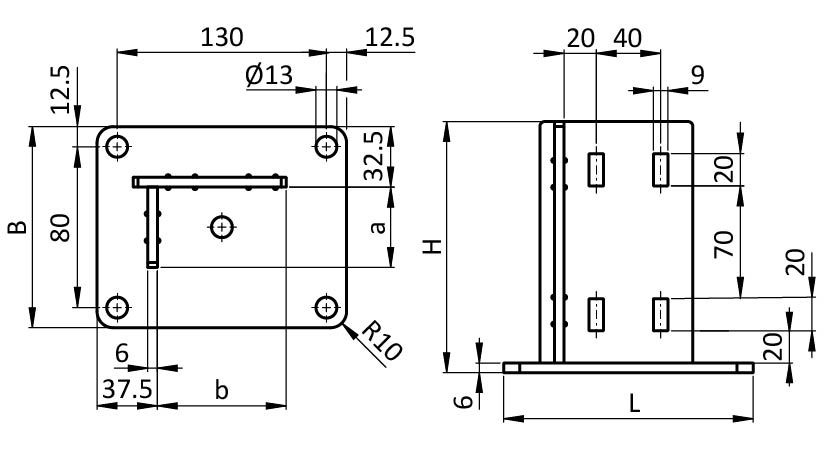

Foot Console ST 40 x 80 / 45 x 90 - 105 x 155 / 110 x 165 – technical drawing

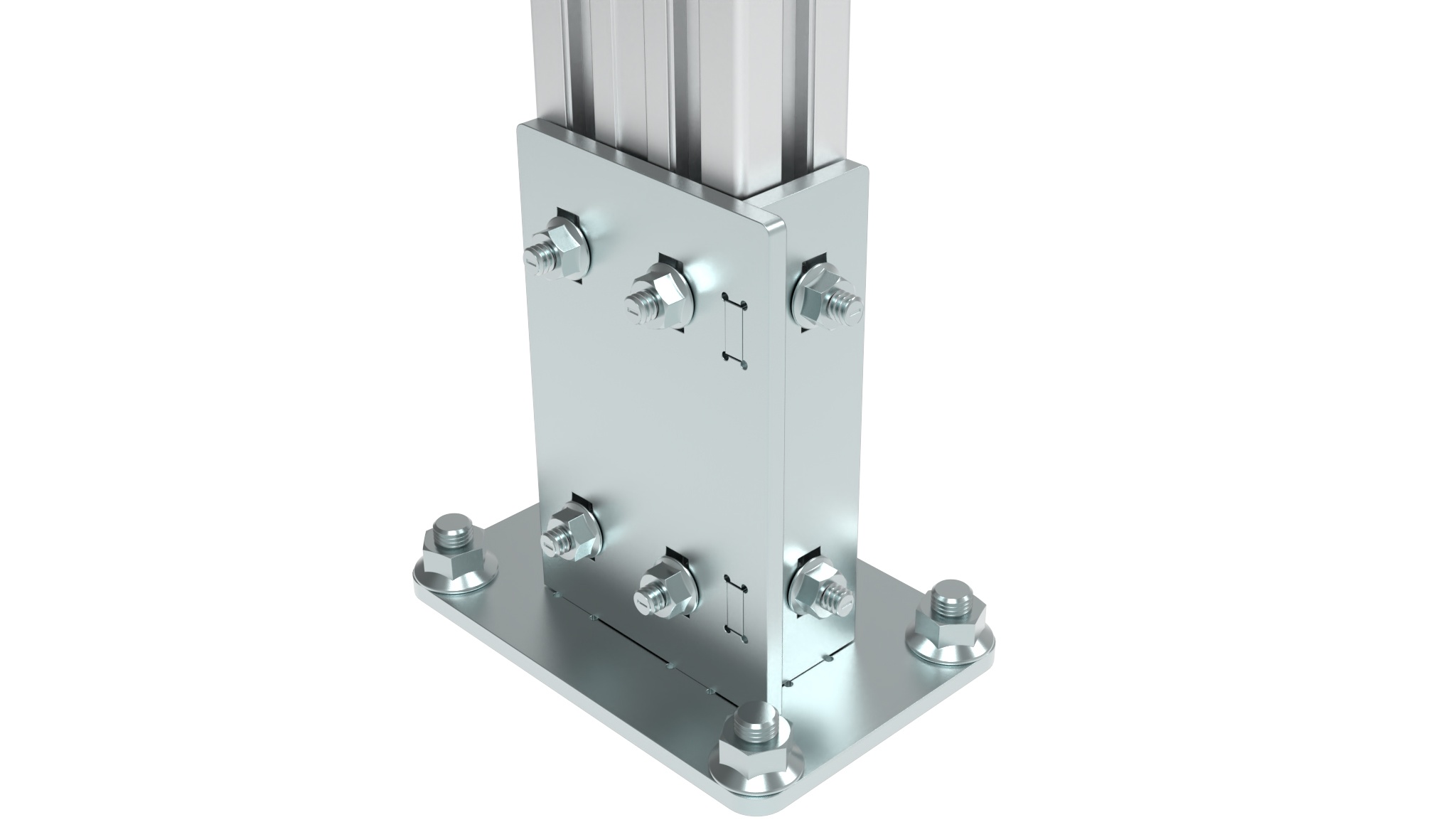

Foot Console ST 40 x 80 / 45 x 90 - 105 x 155 / 110 x 165 – application example

€0.00

This product will be released on 28 September 2026

Version

40 x 80

45 x 90

Surface

Powder coated

Zinc plated

L x B x H (mm)

155 x 105 x 156

165 x 110 x 156

a x b (mm)

40 x 80

50 x 95

Part #: 098G4080L105155V

Pack Quantity: 1 piece

Product information "Foot Console ST 40 x 80 / 45 x 90 - 105 x 155 / 110 x 165"

Color:
- / alu color

Delivery Countries:
Worldwide

Description:
To mount aluminum profiles as posts

Material:
Steel

Surface:
Zinc plated / powder coated

Tip:
Compatible Hammer Screw Slot 8 see 096HK0830M0820
Compatible Hammer Screw Slot 10 see 096HK1030M0820
Compatible Flange Nut M8 see 340ME154

Pack Quantity:	1 piece
Model:	Steel
Weight (g):	1627.0
GTIN-EAN:	4066061068812
ERP Number:	144754

Global keywords / tags:

Profile Form	T-slot Profiles

Variants

Part #	Version	Surface	L x B x H (mm)	a x b (mm)
098G4080L105155V New	40 x 80	Zinc plated	155 x 105 x 156	40 x 80
098G4080L105155VS- New	40 x 80	Powder coated	155 x 105 x 156	40 x 80
098G4590L110165V New	45 x 90	Zinc plated	165 x 110 x 156	50 x 95

Classifications

Zolltarifnummer: 73269098900
Customs Tariff Number Export: 73269098

Certificates
