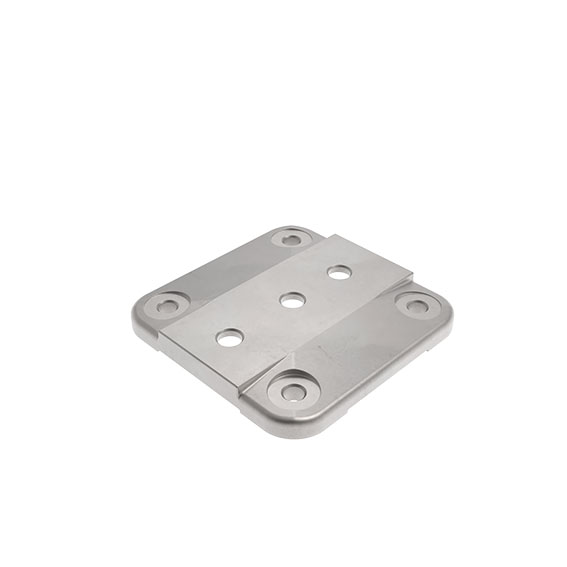

Foot Plate 45 / 60 / 90 - 135
€0.00
Product information "Foot Plate 45 / 60 / 90 - 135"
Worldwide
Description:

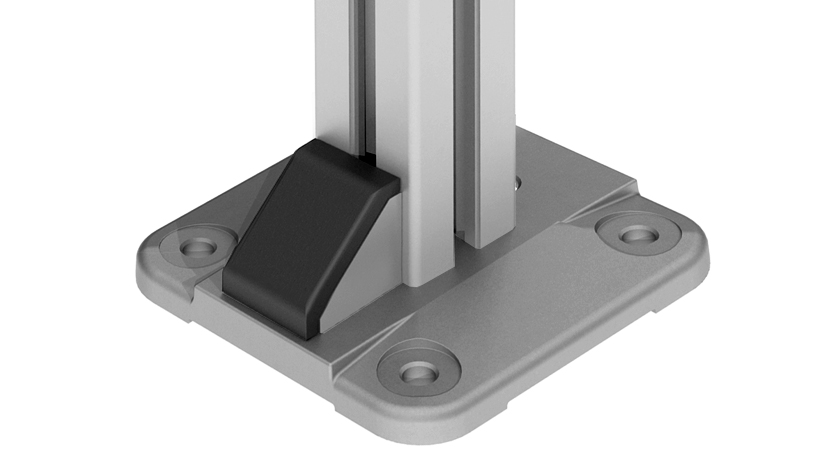

To mount aluminum profiles as posts
Material:
Aluminum die-cast
Surface:
Plain
Tip:

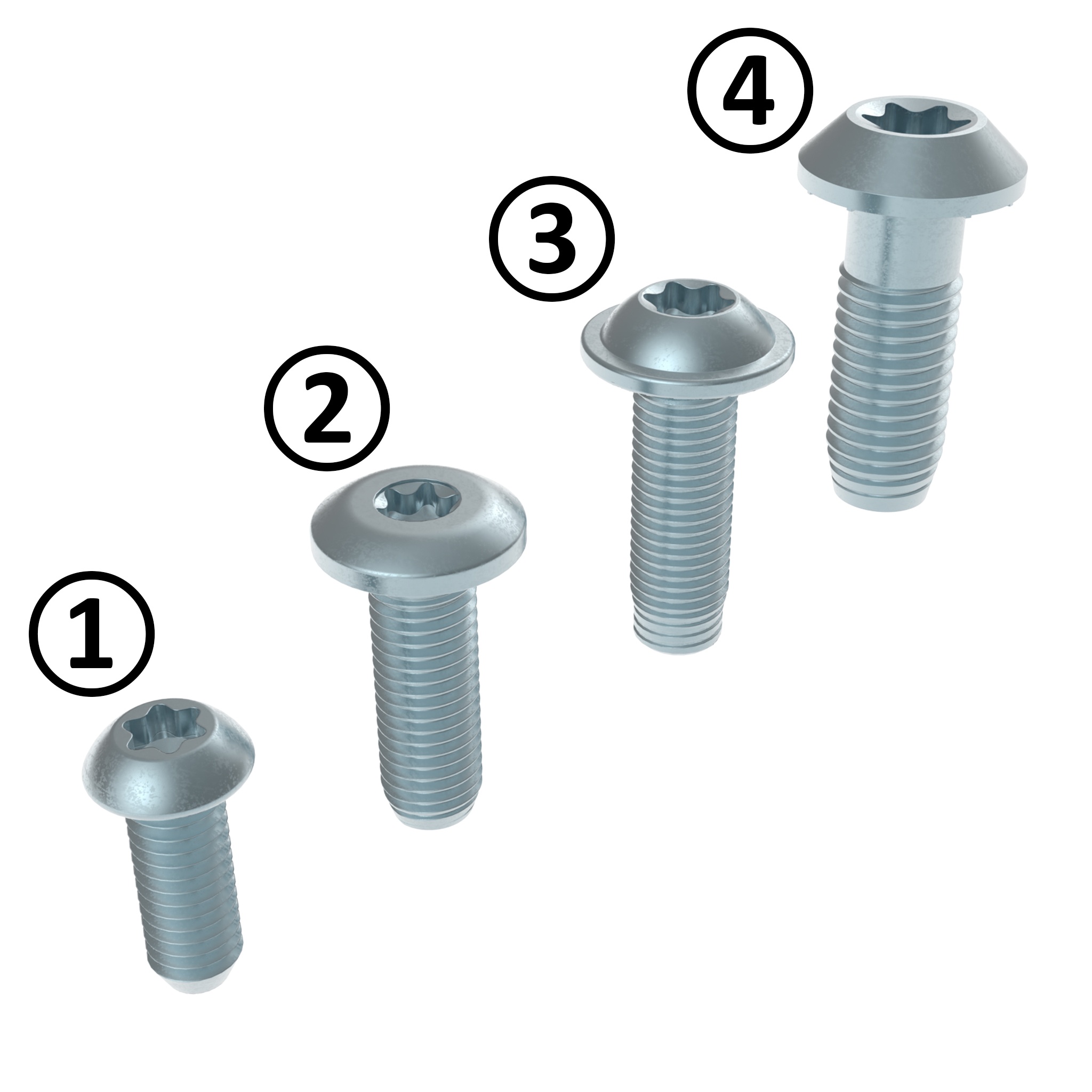

Compatible Self Forming Screw 093S1230T

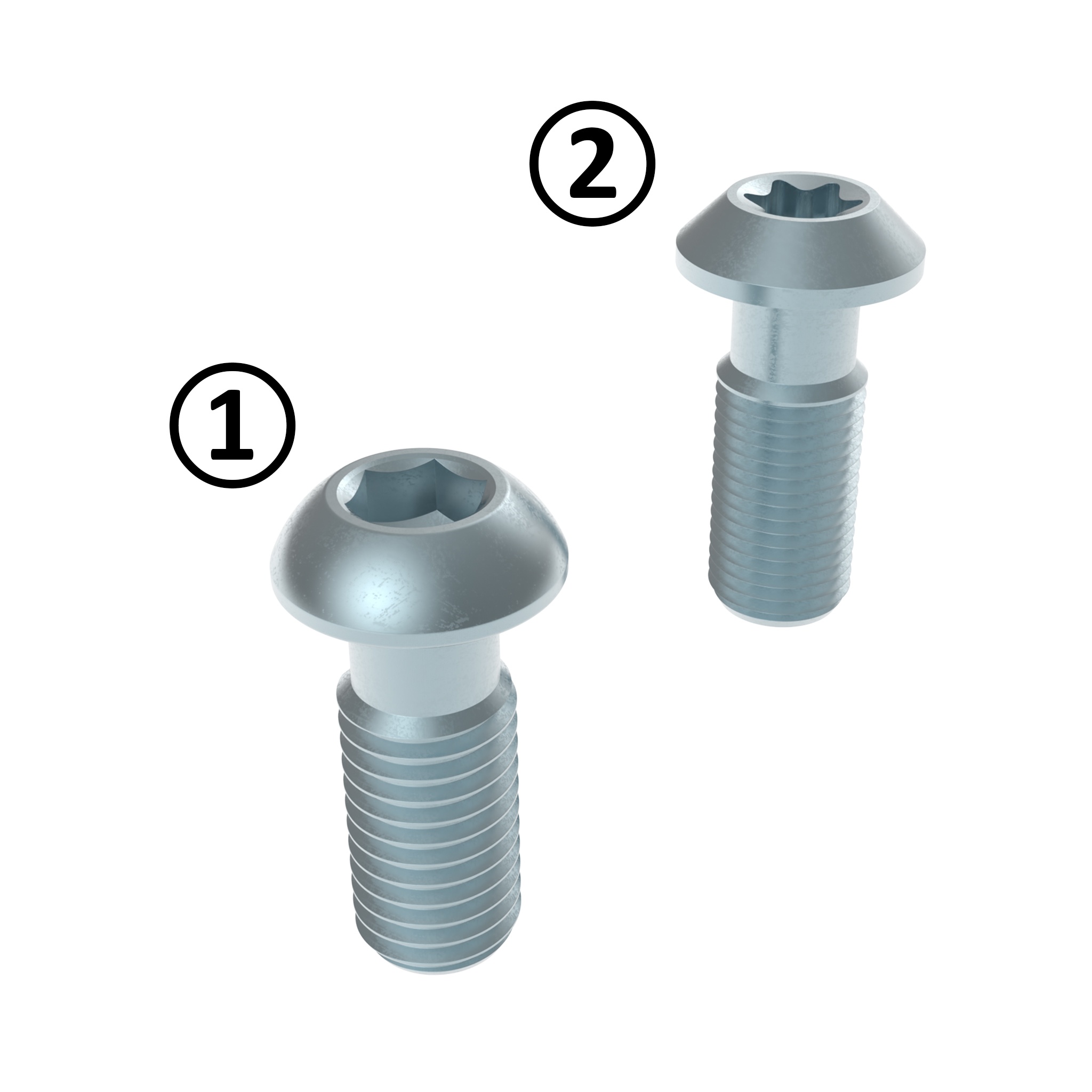

Compatible Connecting Screw 093M1230 and 093M1230T
| Pack Quantity: | 10 pieces |
|---|---|
| Model: | Aluminum die-cast |
| Weight (g): | 348.0 |
| ERP Number: | 141862 |
Classifications
- ECLASS 6.0
- 23369290
- ECLASS 7.0
- 23369290
- ECLASS 8.0
- 23369290
- ECLASS 9.0
- 23369290
- ECLASS 10.0
- 23369290
- ECLASS 11.0
- 23360192
- ECLASS 12.0
- 23360192
- ECLASS 13.0
- 23360192
- Zolltarifnummer
- 76169910990
- Customs Tariff Number Export
- 76169910
Certificates
Matching accessories
Delivery Countries:WorldwideDescription:To connect two aluminum profiles; no thread cutter is necessary to fix the screw; because of the special form of the head of the screw and the self-forming thread, a conductive connection of two aluminum profiles is achievedMaterial:SteelSurface:Zinc plated
Delivery Countries:WorldwideDescription:To connect two aluminum profilesMaterial:SteelSurface:Zinc plated
Delivery Countries:WorldwideDescription:To connect two aluminum profilesMaterial:SteelSurface:Zinc plated
