Frame Corner Connector 20 x 40 (Set)

Product information "Frame Corner Connector 20 x 40 (Set)"

Color:
Frame corner connector: Alu color
Screws: Steel
Cover cap: Gray ≈ RAL 7042

Delivery Countries:
Worldwide

Description:

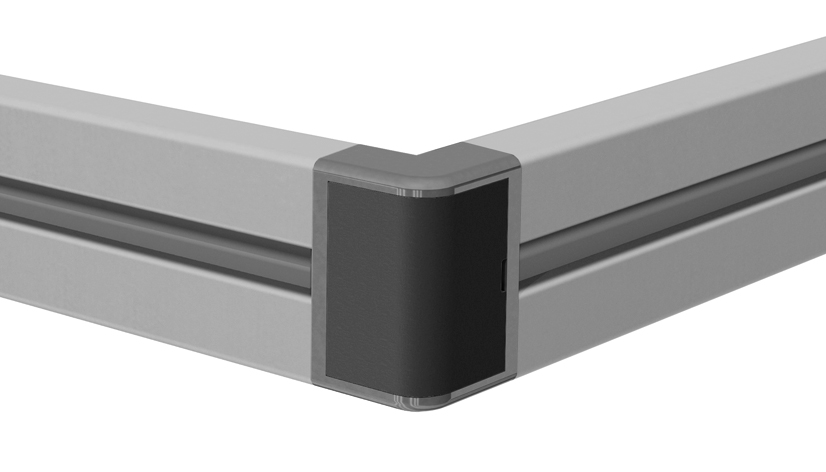

To connect two aluminum frame profiles 20 x 40 at right angles

Material:
Frame corner connector: Aluminum die-cast
Screws: Steel
Cover cap: Plastic PA, glass fiber reinforced

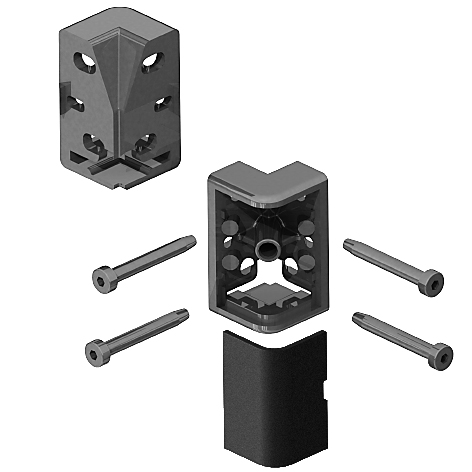

Set:
1 frame corner connector 20 x 40 - slot 8,
4 self-tapping screws - M4 x 20,
1 cover cap

Surface:
Frame corner connector: Powder coated
Screws: Zinc plated

Zolltarifnummer:
79070000900
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Model: Aluminum die-cast
Pack Quantity: 10 sets
Weight (g): 50.8

Variants

Product ID Profile Slot N (mm)
093WF20401N08S01 I 8
