Frame Corner Connector 22.5 x 45 (Set)

Product information "Frame Corner Connector 22.5 x 45 (Set)"

Delivery Countries:
Worldwide

Description:

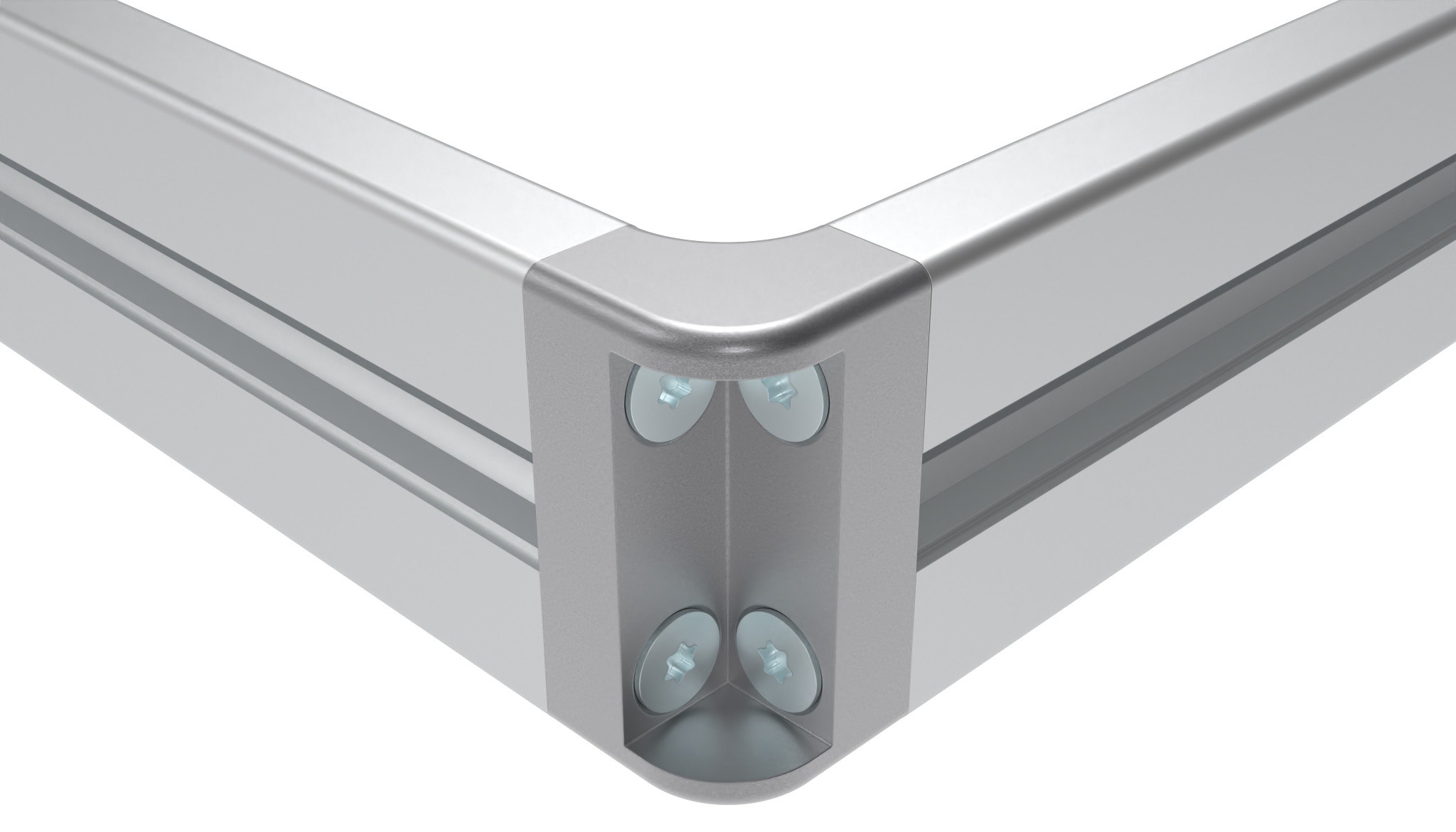

To connect two aluminum frame profiles 22.5 x 45 at right angles

Material:
Frame corner connector: Aluminum die-cast
Screws: Stainless steel SS 304

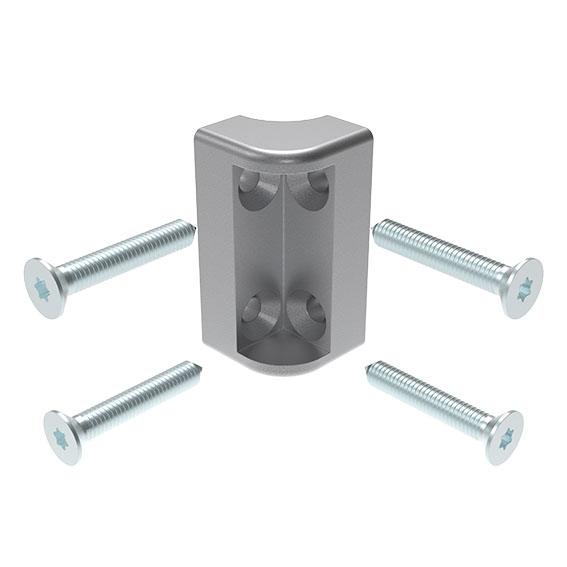

Set:
1 frame corner connector 22.5 x 45 - slot 10,
4 screws DIN 7982 - 4.8 x 30 - hexalobular socket T25

Specials:
Other surfaces, other colors on request

Surface:
Frame corner connector: Plain
Screws: Zinc plated

Zolltarifnummer:
76169910990
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Model: Aluminum die-cast
Pack Quantity: 10 sets
Weight (g): 46.0

Variants

Product ID Profile Slot N (mm)
093WF22451N10S01 B 10
