Frame Corner Connector Plate

Product information "Frame Corner Connector Plate"

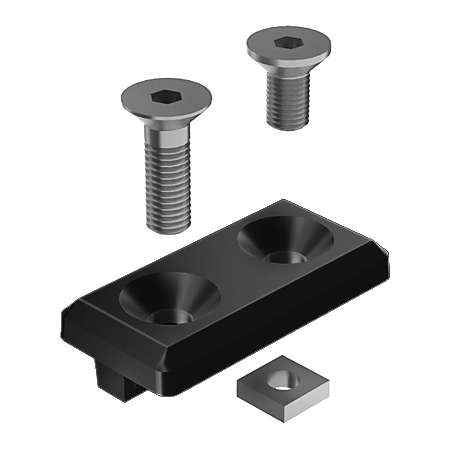

Assembly Set:
1 self forming countersunk screw S8 x 25,
1 countersunk screw DIN 7991 - M8 x 16,
1 square nut DIN 562 - M8

Color:
Corner connector plate: Black

Delivery Countries:
Worldwide

Description:

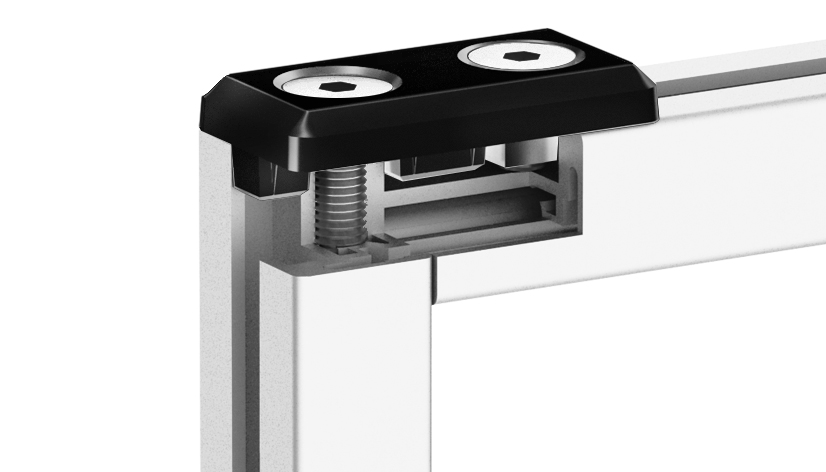

To connect two frame profiles 22.5 x 30 at right angles; ESD electrostatical discharging

Material:
Corner connector plate: Plastic PA, carbon fiber reinforced
Assembly set: Steel

Surface:
Assembly set: Zinc plated

Tip:
* Compatible Self Forming Countersunk Screw S8 x 25 see 093S0825C

Zolltarifnummer:
39269097900
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Model: Plastic PA, frame profile 22.5 x 30
Pack Quantity: 10 pieces / 10 set
Weight (g): 37.0

Variants

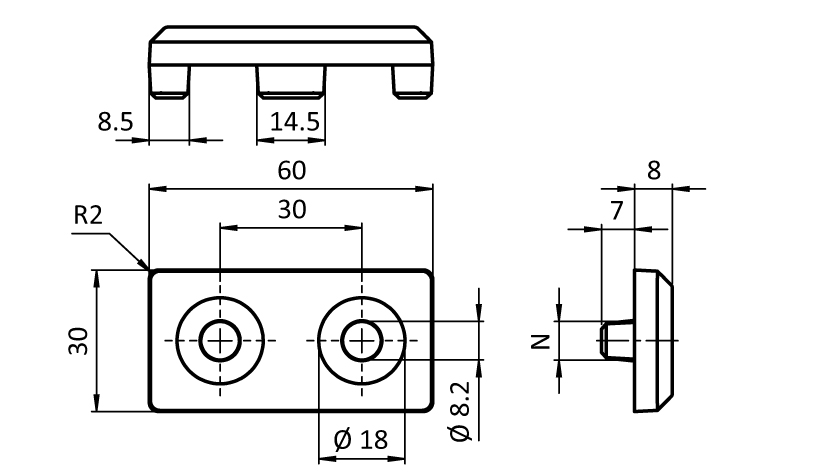

Product ID Slot N (mm) Version Profile
093VB3060N08 8
093VB3060N08S01 8 incl. assembly set B
