Friction Joint I40L for System Arm (Set)
Product number:
061FGN40LN08
Product information "Friction Joint I40L for System Arm (Set)"
Color:
Housing: Alu color
Cover ring: Gray ≈ RAL 7042
Cover caps: Gray ≈ RAL 7042
Centering plates: Alu color
Delivery Countries:
Worldwide
Description:

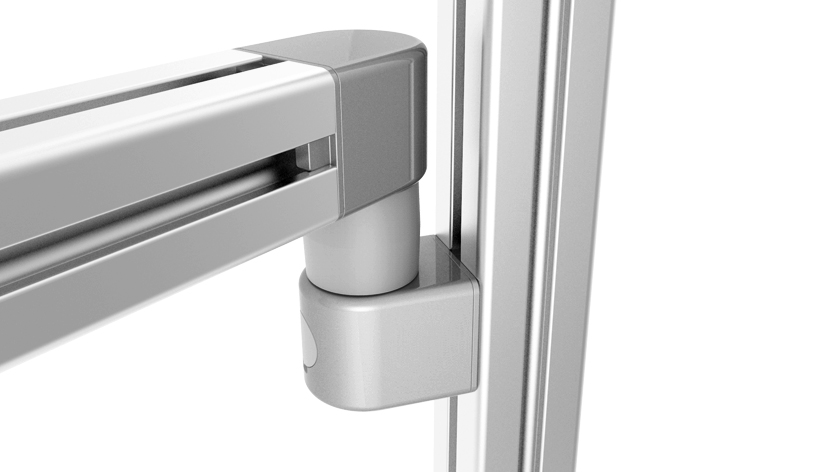

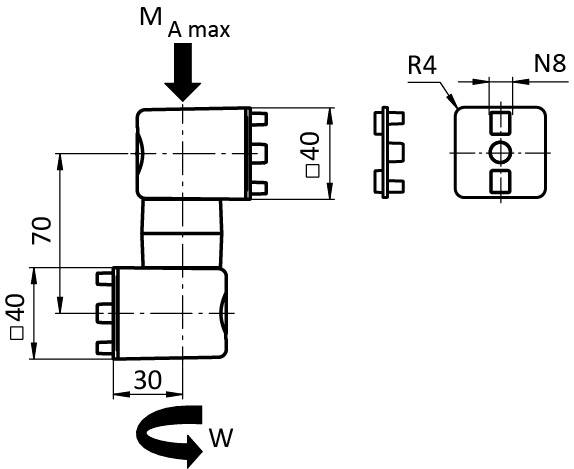

Connection joint with friction for the creation of system arms using profile pieces; pivotable 360°;
Friction joint can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)
Material:
Housing: Aluminum die-cast
Cover ring: Plastic
Inserts: Steel
Friction shaft: Steel
Cover caps: Plastic
Screws: Steel
Washers: Steel
Centering plates: Aluminum die-cast
T-slot nuts: Steel
Set:
1 friction joint
2 cover caps
2 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut)
2 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole)
2 washers 8-FSt
2 centering plates
2 T-slot nuts - slot 8 - M8
Surface:
Housing: Powder coated
Centering plates: Powder coated
Screws: Zinc plated
Washers: Zinc plated
T-slot nuts: Zinc plated
Zolltarifnummer:
76169990990
Housing: Alu color
Cover ring: Gray ≈ RAL 7042
Cover caps: Gray ≈ RAL 7042
Centering plates: Alu color
Delivery Countries:
Worldwide
Description:
Connection joint with friction for the creation of system arms using profile pieces; pivotable 360°;
Friction joint can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)
Material:
Housing: Aluminum die-cast
Cover ring: Plastic
Inserts: Steel
Friction shaft: Steel
Cover caps: Plastic
Screws: Steel
Washers: Steel
Centering plates: Aluminum die-cast
T-slot nuts: Steel
Set:
1 friction joint
2 cover caps
2 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut)
2 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole)
2 washers 8-FSt
2 centering plates
2 T-slot nuts - slot 8 - M8
Surface:
Housing: Powder coated
Centering plates: Powder coated
Screws: Zinc plated
Washers: Zinc plated
T-slot nuts: Zinc plated
Zolltarifnummer:
76169990990
| (ECLASS 6.0): | 23360301 |
|---|---|
| (ECLASS 7.0): | 23360301 |
| (ECLASS 8.0): | 23360301 |
| (ECLASS 9.0): | 23360301 |
| (ECLASS 10.0): | 23360301 |
| (ECLASS 11.0): | 23360301 |
| (ECLASS 12.0): | 23360301 |
| (ECLASS 13.0): | 23360301 |
| Model: | 40 mm modular dimension |
| Pack Quantity: | 1 set |
| Weight (g): | 783.0 |
