Friction Joint I80L for System Arm (Set)
Product number:
061FGM80LN08
Product information "Friction Joint I80L for System Arm (Set)"
Color:
Housing: Alu color
Cover ring: Gray ≈ RAL 7042
Cover caps: Gray ≈ RAL 7042
Centering plates: Alu color
Delivery Countries:
Worldwide
Description:

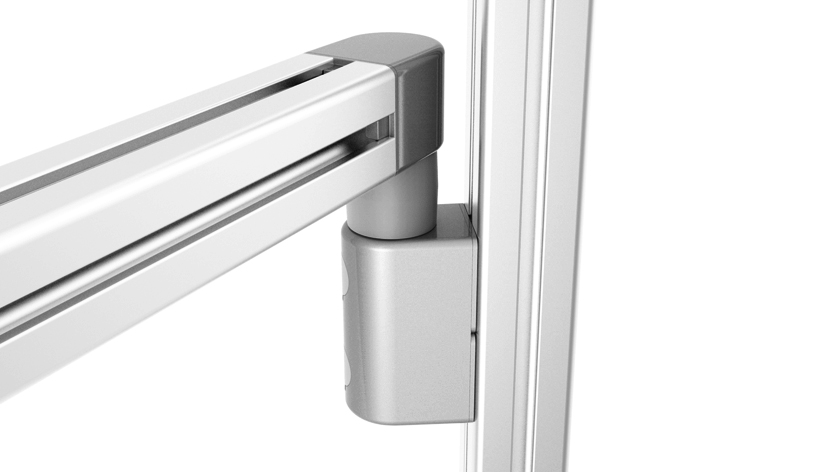

Connection joint with friction for the creation of system arms using profile pieces; pivotable 360°;
Friction joint can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)
Material:
Housing: Aluminum die-cast
Cover ring: Plastic
Inserts: Steel
Friction shaft: Steel
Cover caps: Plastic
Screws: Steel
Washers: Steel
Centering plates: Aluminum die-cast
T-slot nuts: Steel
Set:
1 friction joint
3 cover caps
3 screws DIN 912 - M8 x 45 (for T-slot nut)
3 screws DIN 912 - M8 x 50 (for core hole)
3 washers 8-FSt
3 centering plates
3 T-slot nuts - slot 8 - M8
Surface:
Housing: Powder coated
Centering plates: Powder coated
Screws: Zinc plated
Washers: Zinc plated
T-slot nuts: Zinc plated
Housing: Alu color
Cover ring: Gray ≈ RAL 7042
Cover caps: Gray ≈ RAL 7042
Centering plates: Alu color
Delivery Countries:
Worldwide
Description:
Connection joint with friction for the creation of system arms using profile pieces; pivotable 360°;
Friction joint can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)
Material:
Housing: Aluminum die-cast
Cover ring: Plastic
Inserts: Steel
Friction shaft: Steel
Cover caps: Plastic
Screws: Steel
Washers: Steel
Centering plates: Aluminum die-cast
T-slot nuts: Steel
Set:
1 friction joint
3 cover caps
3 screws DIN 912 - M8 x 45 (for T-slot nut)
3 screws DIN 912 - M8 x 50 (for core hole)
3 washers 8-FSt
3 centering plates
3 T-slot nuts - slot 8 - M8
Surface:
Housing: Powder coated
Centering plates: Powder coated
Screws: Zinc plated
Washers: Zinc plated
T-slot nuts: Zinc plated
| (ECLASS 6.0): | 23360301 |
|---|---|
| (ECLASS 7.0): | 23360301 |
| (ECLASS 8.0): | 23360301 |
| (ECLASS 9.0): | 23360301 |
| (ECLASS 10.0): | 23360301 |
| (ECLASS 11.0): | 23360301 |
| (ECLASS 12.0): | 23360301 |
| (ECLASS 13.0): | 23360301 |
| Customs Tariff Number Export: | 73269098 |
| Model: | 40 mm modular dimension |
| Pack Quantity: | 1 set |
| Weight (g): | 1077.0 |
| Zolltarifnummer: | 76169990990 |
| pA Number: | 144365 |
