Glazing Strip for Insert Profile I AL

Product information "Glazing Strip for Insert Profile I AL"

Color:
Gray

Delivery Countries:
Worldwide

Description:

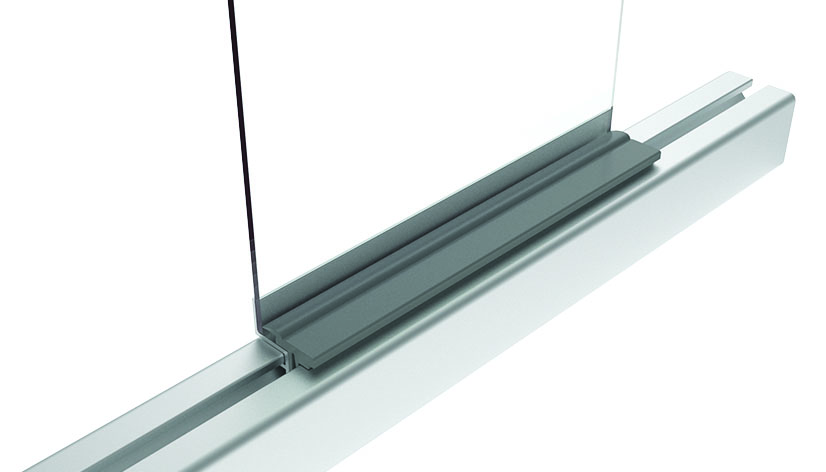

To insert panels with 2.0 to 8.0 mm thickness subsequently into assebled structures

Material:
Plastic PP + TPE, ≈ 78 Shore A

Tip:
Please note: You are ordering in meters!

Tip 2:
For a complete insert profile a suitable support strip I AL is required.

Zolltarifnummer:
39169050900
(ECLASS 6.0): 23369290
(ECLASS 7.0): 23369290
(ECLASS 8.0): 23369290
(ECLASS 9.0): 23369290
(ECLASS 10.0): 23369290
(ECLASS 11.0): 23360492
(ECLASS 12.0): 23360492
(ECLASS 13.0): 23360492
Model: Plastic PP + TPE, slot 8, subsequently insertable
Pack Quantity: 50 meters (25 pieces at 2 m)
Weight (g): 362.0

Variants

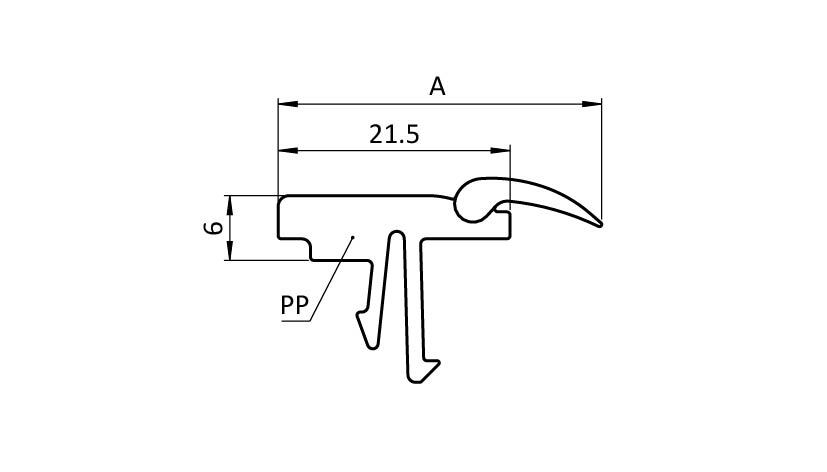

Product ID Profile Slot N (mm) Color for Panel A (mm)
092340 I 8 Gray ≈ RAL 7042 2 - 4 mm 30.0
092345 I 8 Gray ≈ RAL 7042 6 - 8 mm 26.0
092347S01 I 8 Gray ≈ RAL 7042 4 - 6 mm 28.0
