Gusseted Connection Angle AL 2 Hole, 1 Slot Version

Skip image gallery

€0.00*

Prices excl. VAT plus shipping costs

A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
F (mm)
G (mm)
Grid
H (mm)
Part #: 093W8104N06

Product information "Gusseted Connection Angle AL 2 Hole, 1 Slot Version "

Color:
Alu color

Delivery Countries:
North America

Description:

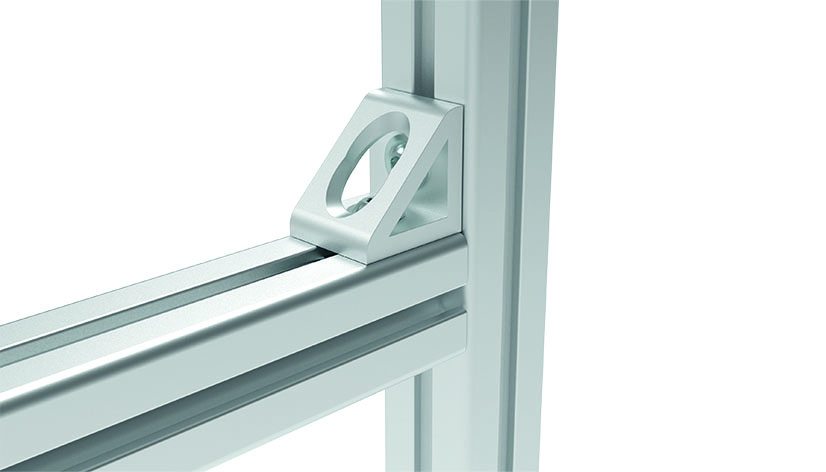

To connect two aluminum profiles at right angles

Material:
Aluminum

Surface:
Anodized
Customs Tariff Number Export: 76169990
Model: Aluminum
Pack Quantity: 10 pieces
Pack Quantity (1): 1
Weight (g): 15.4
pA Number: 150424

Variants

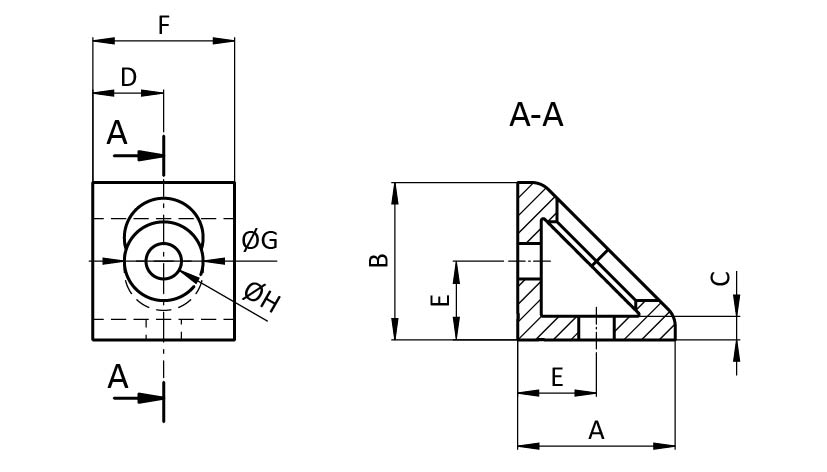

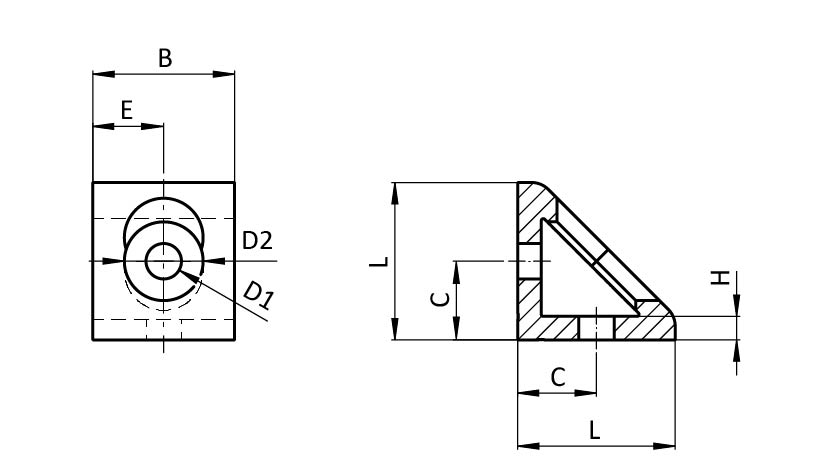

Product ID A (mm) D (mm) F (mm) G (mm) H (mm) C (mm) B (mm) E (mm) Grid
093W8104N06 25.4 (1") 11.2 (0.44") 22.4 (0.88") 12.7 (0.50") 6.9 (0.27") 4.8 (0.19") 25.4 (1") 12.7 (0.50") 25.4 (1")
093W8203N05 20.0 9.0 18.0 10.0 5.5 3.0 20.0 12.0 20
093W8303N08 30.0 13.5 27.0 15.0 7.0 5.0 30.0 14.0 30
093W8384N08 38.1 (1.50") 16.5 (0.65") 33.0 (1.30") 19.1 (0.75") 8.9 (0.35") 6.4 (0.25") 38.1 (1.50") 20.1 (0.79") 38.1 (1.5")
093W8404N08 40.0 18.0 36.0 20.0 9.0 6.0 40.0 20.0 40
093W8421N10 45.0 20.5 41.0 22.5 9.0 6.0 45.0 20.0 45

CAD Downloads

Certificates

RoHS Certificate
REACH Certificate
POP Certificate
Conflict Minerals Certificate
