Gusseted Connection Angle AL 4 Hole, 1 Slot Version

Product information "Gusseted Connection Angle AL 4 Hole, 1 Slot Version"

Color:
Alu color, black

Delivery Countries:
North America

Description:
To connect two aluminum profiles at right angles

Material:
Aluminum

Surface:
Anodized

Model:	Aluminum
Pack Quantity:	10 pieces
Customs Tariff Number Export:	76169990
Weight (g):	169.2
(ECLASS 6.0):	23360290
(ECLASS 7.0):	23360290
(ECLASS 8.0):	23360290
(ECLASS 9.0):	23360290
(ECLASS 10.0):	23360290
(ECLASS 11.0):	23360290
(ECLASS 12.0):	23360290
(ECLASS 13.0):	23360290
ERP Number:	166673

Variants

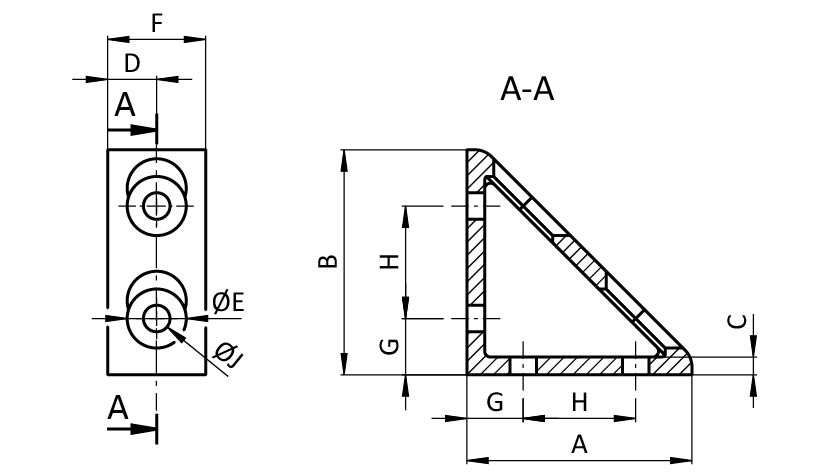

Part #	Color	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)	H (mm)	J (mm)	Grid
093W8103N06	Alu color	50.8 (2.00")	50.8 (2.00")	4.8 (0.19")	11.2 (0.44")	12.7 (0.50")	22.4 (0.88")	12.7 (0.50")	25.4 (1")	6.9 (0.27")	25.4 (1")
093W8103N06S	Black	50.8 (2.00")	50.8 (2.00")	4.8 (0.19")	11.2 (0.44")	12.7 (0.50")	22.4 (0.88")	12.7 (0.50")	25.4 (1")	6.9 (0.27")	25.4 (1")
093W8302N08	Alu color	60.0	60.0	5.0	13.5	14.0	27.0	15.0	30.0	7.0	30
093W8302N08S	Black	60.0	60.0	5.0	13.5	14.0	27.0	15.0	30.0	7.0	30
093W8383N08	Alu color	76.2 (3.00")	76.2 (3.00")	6.4 (0.25")	16.5 (0.65")	20.1 (0.79")	33.0 (1.30")	19.1 (0.75")	38.1 (1.50")	8.9 (0.35")	38.1 (1.5")
093W8383N08S	Black	76.2 (3.00")	76.2 (3.00")	6.4 (0.25")	16.5 (0.65")	20.1 (0.79")	33.0 (1.30")	19.1 (0.75")	38.1 (1.50")	8.9 (0.35")	38.1 (1.5")
093W8403N08	Alu color	80.0	80.0	6.0	18.0	20.0	36.0	20.0	40.0	9.0	40
093W8403N08S	Black	80.0	80.0	6.0	18.0	20.0	36.0	20.0	40.0	9.0	40
093W8451N10	Alu color	90.0	90.0	6.0	20.5	20.0	41.0	22.5	45.0	9.0	45
093W8451N10S	Black	90.0	90.0	6.0	20.5	20.0	41.0	22.5	45.0	9.0	45
