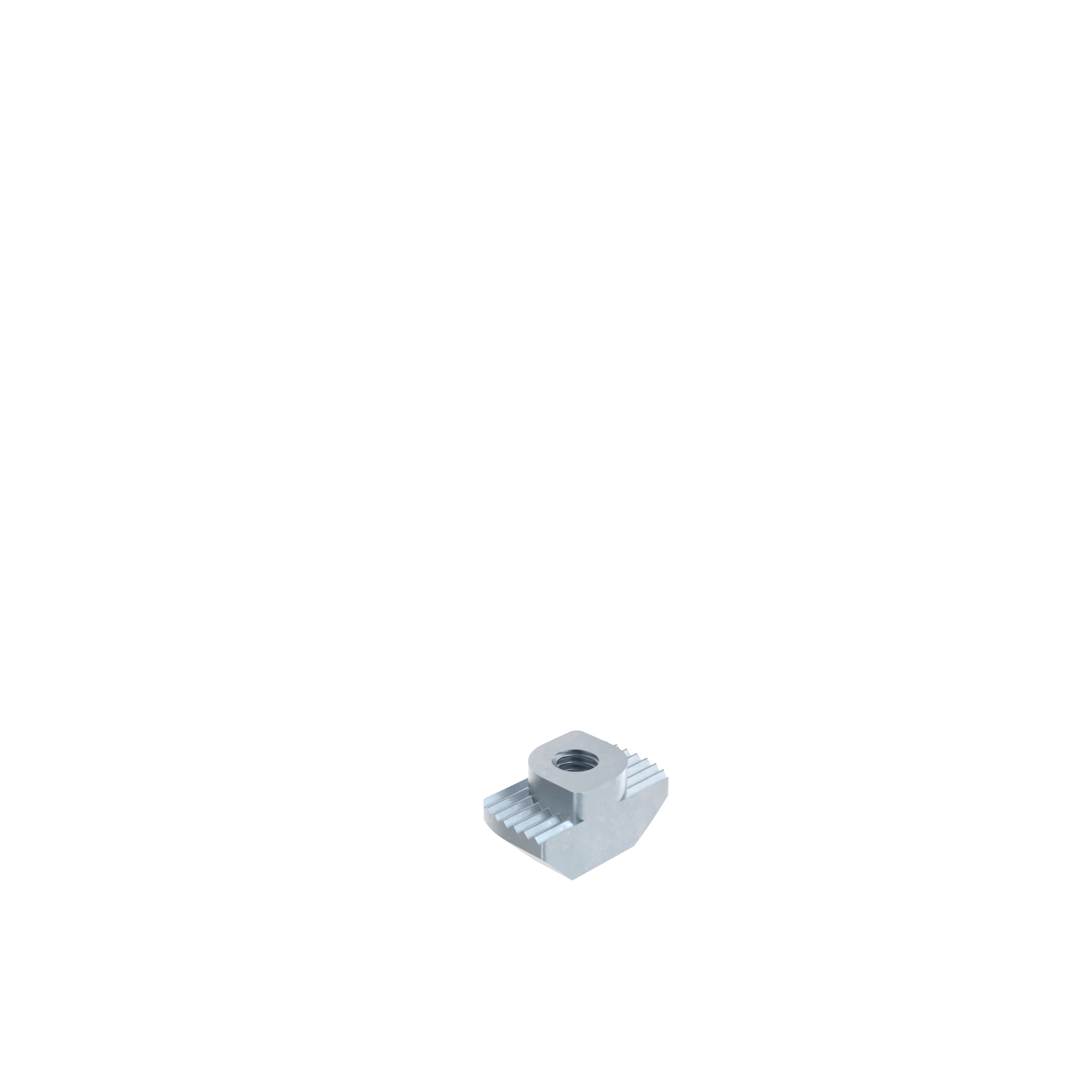

Hammer Nut Slot 10 with Turning Help

Product information "Hammer Nut Slot 10 with Turning Help"

Delivery Countries:
Worldwide

Description:
To fasten components to profiles, breakes the anodized coat of the profile - thus ensuring a safe, ESD electrostatical discharging connection;
with turning help: plastic thread locking dot

Material:
Steel

Surface:
Zinc plated
(ECLASS 6.0): 23110890
(ECLASS 7.0): 23110810
(ECLASS 8.0): 23110810
(ECLASS 9.0): 23110810
(ECLASS 10.0): 23110810
(ECLASS 11.0): 23110716
(ECLASS 12.0): 23110716
(ECLASS 13.0): 23110716
Customs Tariff Number Export: 73181692
Model: Slot 10, steel
Pack Quantity: 100 pieces
Weight (g): 7.8
Zolltarifnummer: 73181692900
pA Number: 144287

Variants

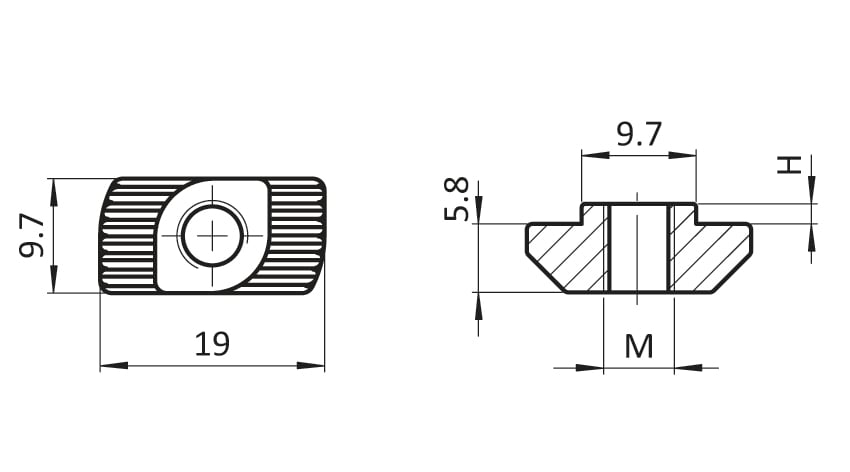

Product ID Profile H (mm) Slot N (mm) M
096H10430S20 B 3.0 10 M4
096H10517S20 B 1.5 10 M5
096H10530S20 B 3.0 10 M5
096H10617S20 B 1.5 10 M6
096H10630S20 B 3.0 10 M6
096H10817S20 B 1.5 10 M8
096H10830S20 B 3.0 10 M8
