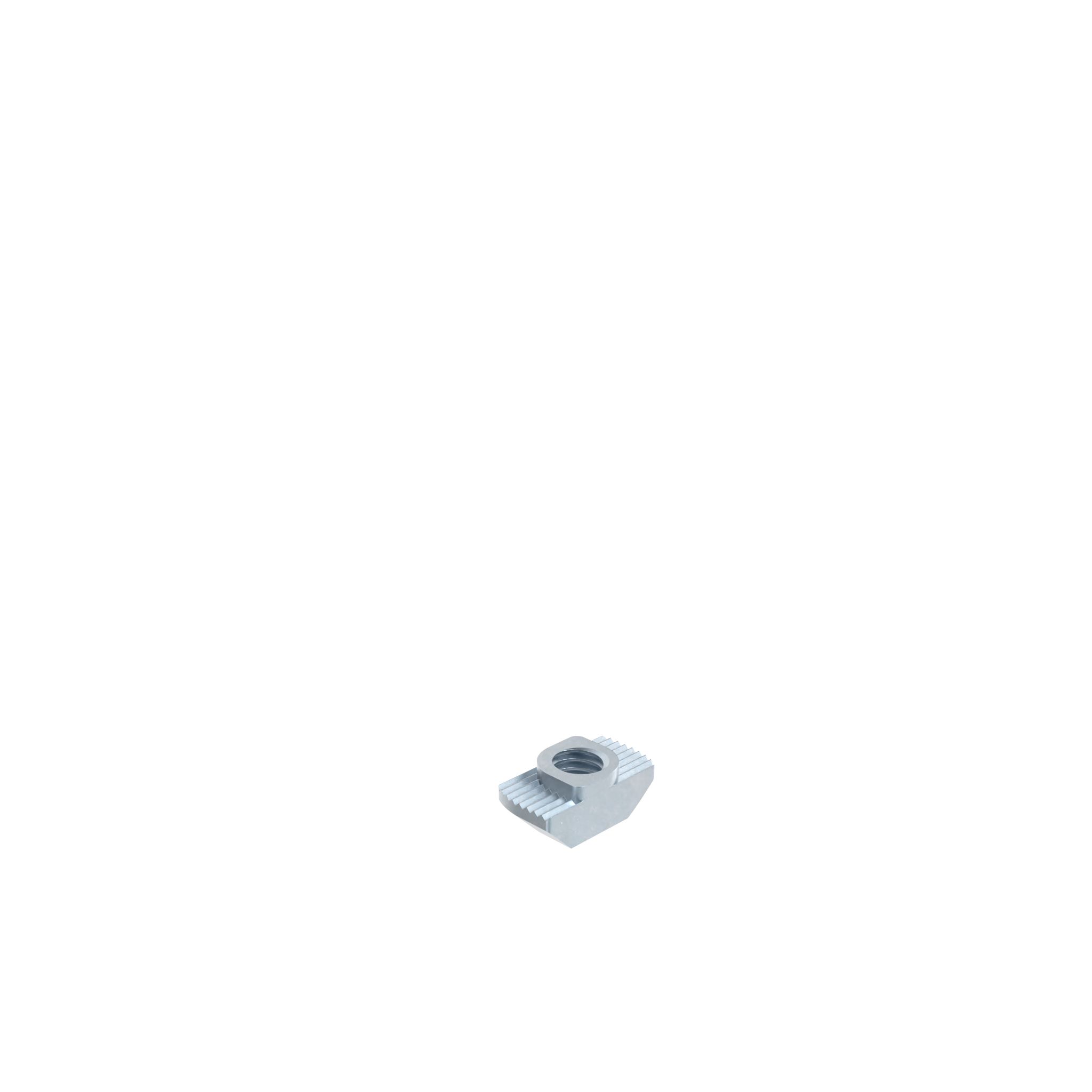

Hammer Nut Slot 8 with Turning Help, Step Height 1.5/3.0 mm

Product information "Hammer Nut Slot 8 with Turning Help, Step Height 1.5/3.0 mm"

Delivery Countries:
Worldwide

Description:

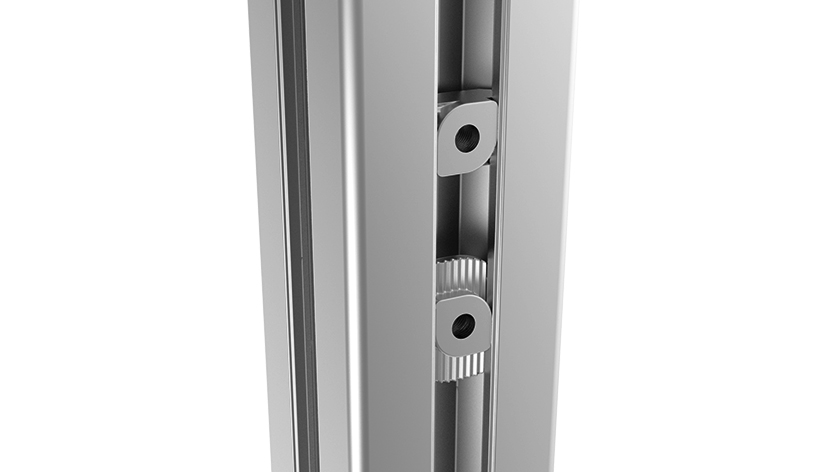

To fasten components to profiles, breakes the anodized coat of the profile - thus ensuring a safe, ESD electrostatical discharging connection;
with turning help: plastic thread locking dot

Material:
Steel

Surface:
Zinc plated

Zolltarifnummer:
73181692900
(ECLASS 6.0): 23110890
(ECLASS 7.0): 23110810
(ECLASS 8.0): 23110810
(ECLASS 9.0): 23110810
(ECLASS 10.0): 23110810
(ECLASS 11.0): 23110716
(ECLASS 12.0): 23110716
(ECLASS 13.0): 23110716
Model: Slot 8, steel
Pack Quantity: 100 pieces
Weight (g): 3.0

Variants

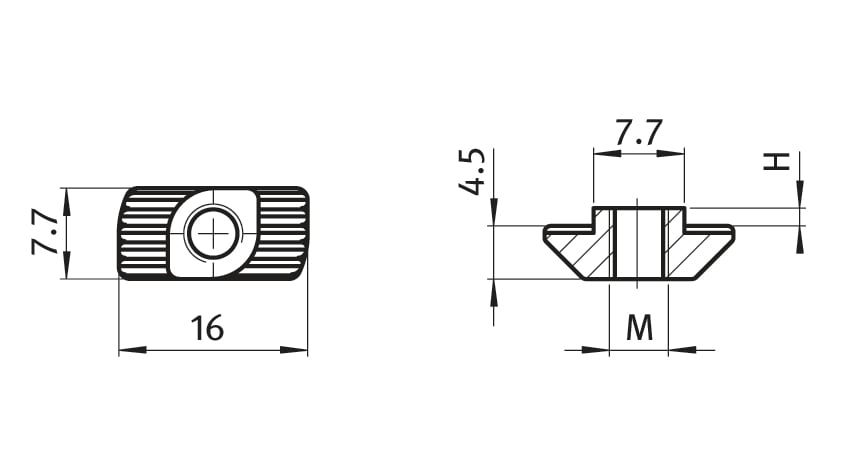

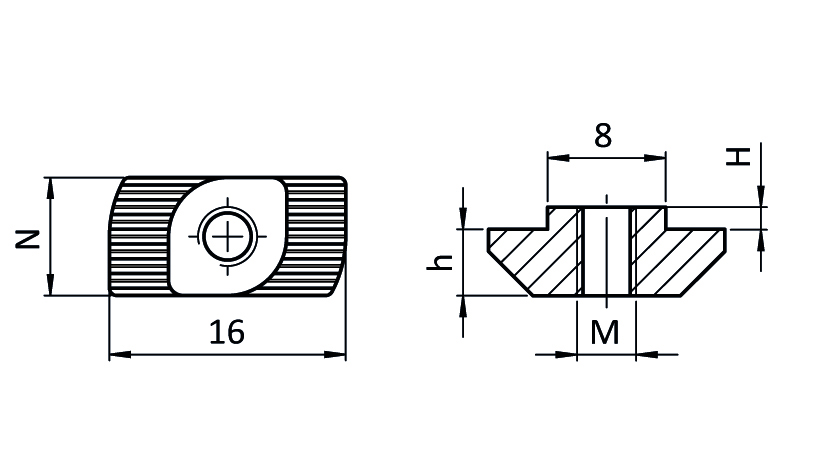

Product ID H (mm) Profile M
096H08415S20 1.5 B M4
096H08515S20 1.5 B M5
096H08530S20 3.0 I M5
096H08615S20 1.5 B M6
096H08630S20 3.0 I M6
