Handle Over-Center Draw Latch

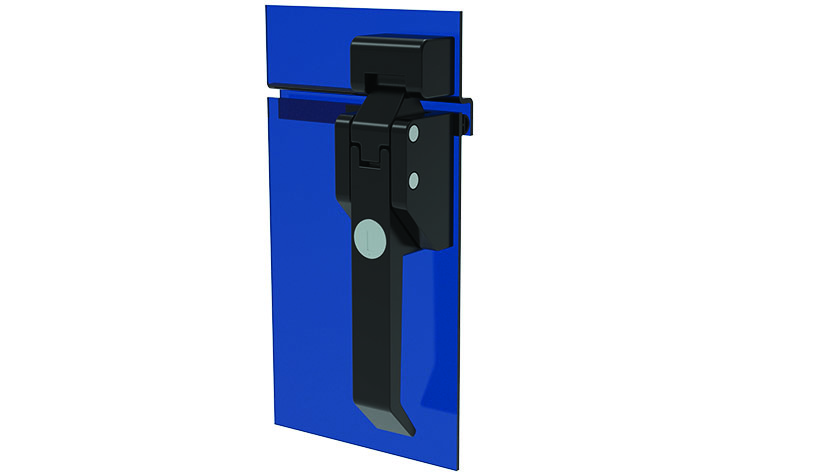

Handle Over-Center Draw Latch – application example

Product information "Handle Over-Center Draw Latch"

Color:
Handle: Black / chrome
Latch: Black / chrome
Housing: Black / chrome
Catch: Black / chrome

Delivery Countries:
North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, Bulgaria

Description:
For easy, secure and compressive latching and locking of doors and flaps;
Wide range of inserts, cams and accessories

Material:
Handle: Zinc die-cast / stainless steel SS316
Latch: Zinc die-cast / stainless steel SS316
Housing: Zinc die-cast / stainless steel SS316
Return spring: Spring steel SS9260
Catch: Zinc die-cast / stainless steel SS316
Pins: Stainless steel
Connector: Zinc die-cast / stainless steel SS316

Surface:
Handle: Powder coated / chrome plated / plain
Latch: Powder coated / chrome plated / plain
Housing: Powder coated / chrome plated / plain
Catch: Powder coated / chrome plated / plain
Connector: Zinc plated / plain

Pack Quantity:	10 pieces
Weight (g):	408.3
ERP Number:	139403

Global keywords / tags:

Application Area	Machinery & Plant Engineering

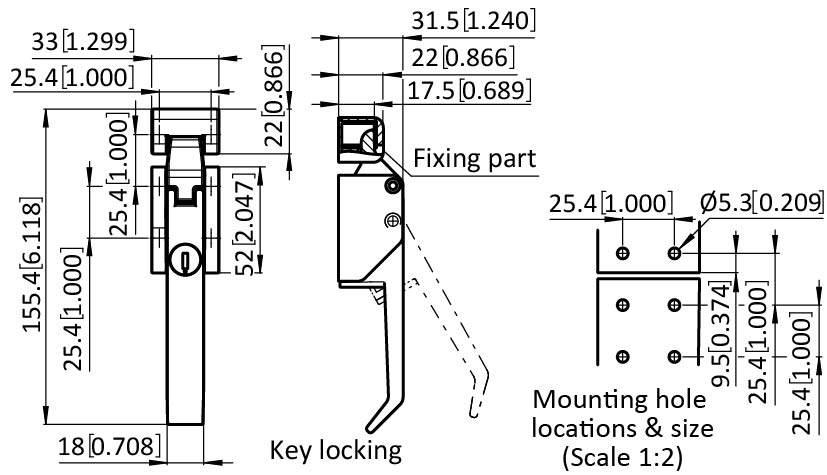

Variants

Part #	Material	Surface	Color	Insert type	Hole
0810430	Zinc die-cast	Powder coated	Black	Non-locking	M 5 x 0.8
0810431	Stainless steel SS316	-	-	Non-locking	M 5 x 0.8
0810432	Zinc die-cast	Chrome plated	Chrome	Non-locking	M 5 x 0.8
0810433	Zinc die-cast	Powder coated	Black	Key locking (Keyed FH751)	M 5 x 0.8
0810434	Stainless steel SS316	-	-	Key locking (Keyed FH751)	M 5 x 0.8
0810435	Zinc die-cast	Chrome plated	Chrome	Key locking (Keyed FH751)	M 5 x 0.8
0813052	Zinc die-cast	Powder coated	Black	Key locking (Keyed FH751)	10 - 32 UNC
0813053	Zinc die-cast	Chrome plated	Chrome	Key locking (Keyed FH751)	10 - 32 UNC
0813054	Stainless steel SS316	-	-	Key locking (Keyed FH751)	10 - 32 UNC
0813055	Zinc die-cast	Powder coated	Black	Non-locking	10 - 32 UNC
0813056	Zinc die-cast	Chrome plated	Chrome	Non-locking	10 - 32 UNC
0813057	Stainless steel SS316	-	-	Non-locking	10 - 32 UNC
