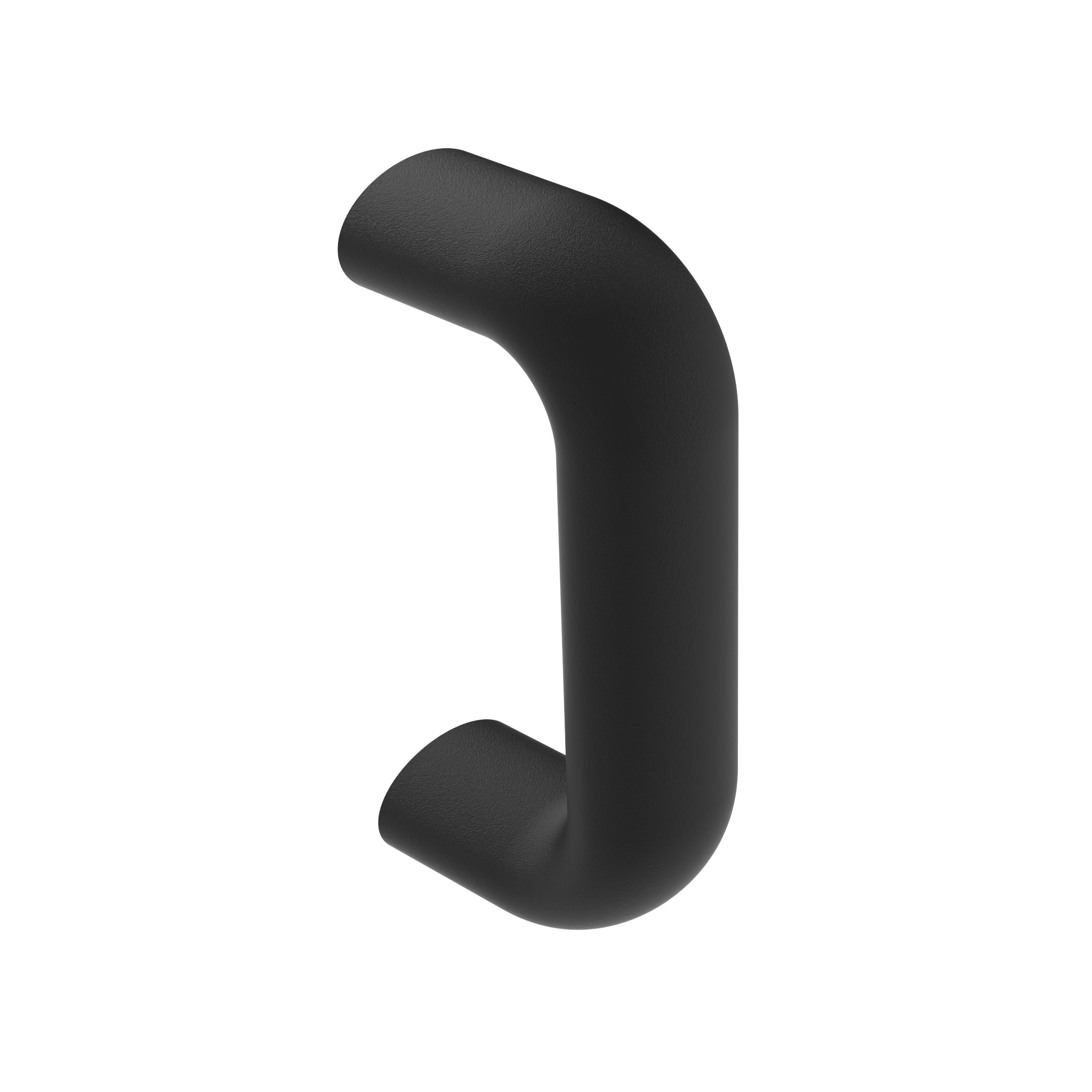

Handle PA Oval

Product information "Handle PA Oval"

Color:
Black

Delivery Countries:
North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, Bulgaria

Description:

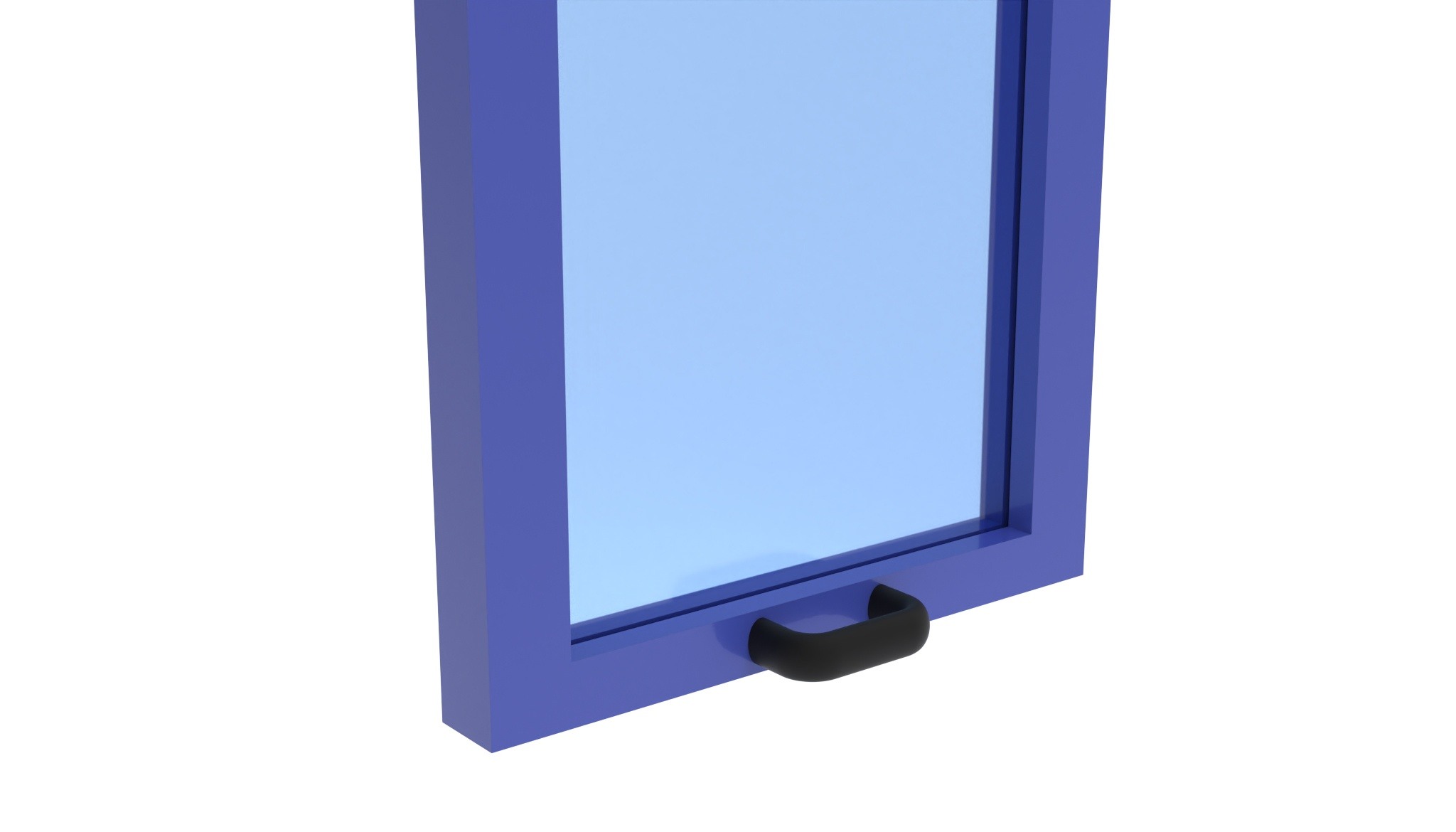

To mount on doors, flaps and aluminum profiles

Fastening:
From the back, using M6 or M8 screws

Material:
Plastic PA, glass fiber reinforced
Pack Quantity: 10 pieces
Weight (g): 239.6
ECLASS 6.0: 23010103
ECLASS 7.0: 23010103
ECLASS 8.0: 23010103
ECLASS 9.0: 23010103
ECLASS 10.0: 23010103
ECLASS 11.0: 23010103
ECLASS 12.0: 23010103
ECLASS 13.0: 23010103
Customs Tariff Number Export: 83024200
ERP Number: 121955

Variants

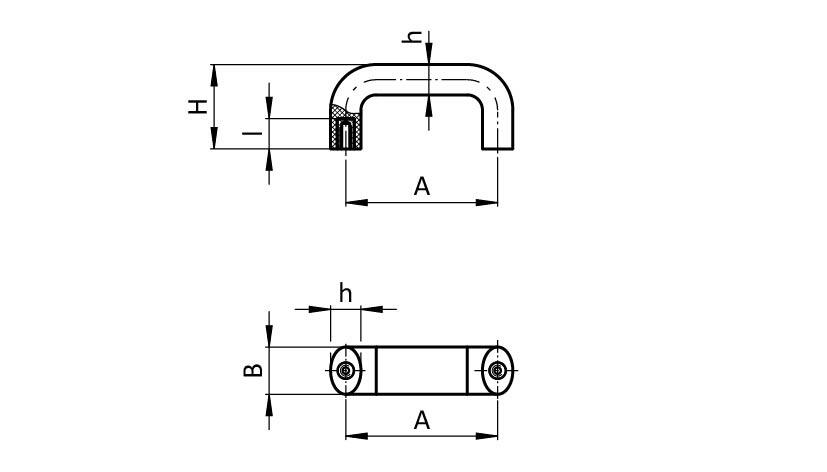

Part # H (mm) A (mm) B (mm) h (mm) for Screw l (mm)
0850018 50.0 90.0 28.0 18.0 M6 14.0
0850019 60.0 120.0 28.0 20.0 M8 16.0
0850020 60.0 180.0 28.0 20.0 M8 16.0
0850021 60.0 240.0 28.0 20.0 M8 16.0
