Heavy-duty Fixed Caster Ø 200 with Mounting Plate 40 / 45

Product information "Heavy-duty Fixed Caster Ø 200 with Mounting Plate 40 / 45"

Color:
Housing: Alu color
Tread: See table
Wheel body: See table

Delivery Countries:
Worldwide

Description:
Reliable and quiet fixed caster, trackless
With ball bearings and thread guard, integrated mounting plate for fixation to aluminum profiles with modular dimension 40 and 45mm without overhang
No additional transport and base plate needed

Material:
Housing: Steel
Tread: See table
Wheel body: See table

Specials:
Other kinds of wheels, other colors, other surfaces on request

Surface:
Housing: Powder coated

Zolltarifnummer:
73269098900
Model: With bolt hole pattern
Pack Quantity: 1 piece
Weight (g): 2750.0

Variants

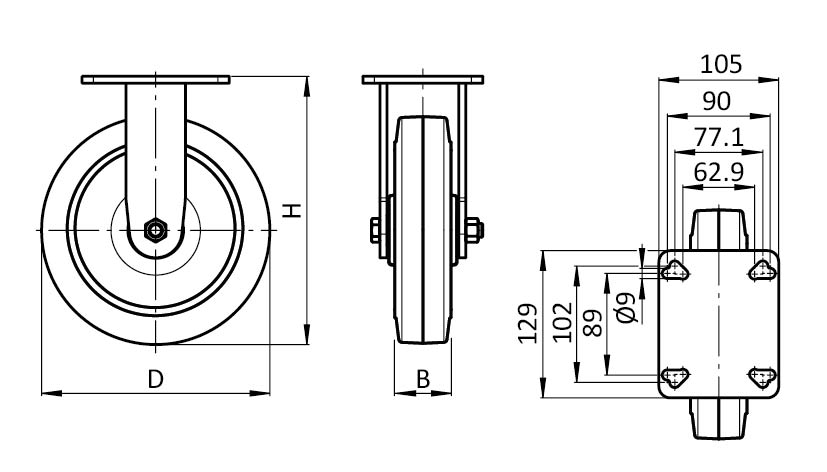

Product ID H (mm) B (mm) D (mm) ESD Max. Load (N) Wheel Body Fixed Caster Tread
098F200AH129105 235 50 200 5800 PA, white White
098F200EH129105 235 50 200 7800 Aluminum, gray PU, yellow
098F200EH129105ESD 235 50 200 ESD 7800 Aluminum, gray PU, gray
098F200GH129105 235 50 200 4900 PA, black Solid rubber, black
098F200UH129105 235 40 200 4900 PA, gray TPU, dark gray
098F200UH129105ESD 235 40 200 ESD 3100 PA, gray TPU, dark gray
