Heavy-duty Swivel Caster Ø 200 with Mounting Plate 40 / 45
Product number:
098S200EH129105
Product information "Heavy-duty Swivel Caster Ø 200 with Mounting Plate 40 / 45"
Color:
Housing: Alu color
Tread: See table
Wheel body: See table
Delivery Countries:
Worldwide
Description:
Reliable and quiet swivel caster, trackless

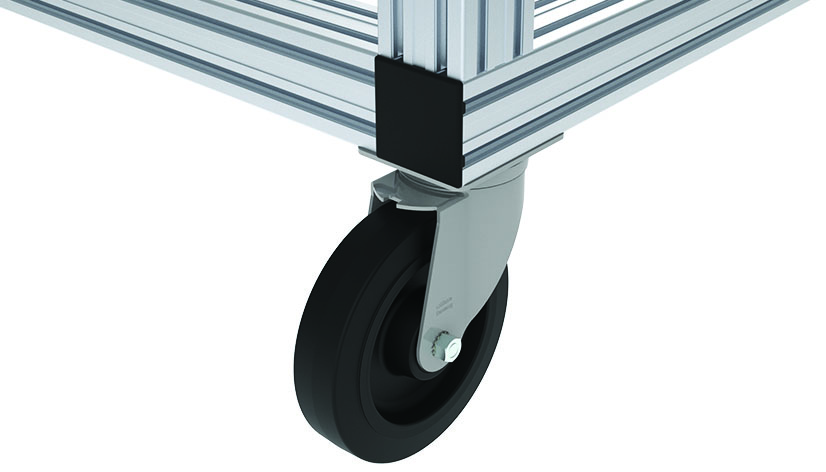

With ball bearings and thread guard integrated mounting plate for fixation to aluminum profiles with modular dimension 40 and 45 mm without overhang
No additional transport and base plate needed
Material:
Housing: Steel
Tread: See table
Wheel body: See table
Specials:
Other kinds of wheels, other colors, other surfaces on request
Surface:
Housing: Powder coated
Zolltarifnummer:
73269098900
Housing: Alu color
Tread: See table
Wheel body: See table
Delivery Countries:
Worldwide
Description:
Reliable and quiet swivel caster, trackless
With ball bearings and thread guard integrated mounting plate for fixation to aluminum profiles with modular dimension 40 and 45 mm without overhang
No additional transport and base plate needed
Material:
Housing: Steel
Tread: See table
Wheel body: See table
Specials:
Other kinds of wheels, other colors, other surfaces on request
Surface:
Housing: Powder coated
Zolltarifnummer:
73269098900
Model: | With bolt hole pattern |
---|---|
Pack Quantity: | 1 piece |
Weight (g): | 2590.0 |
Variants

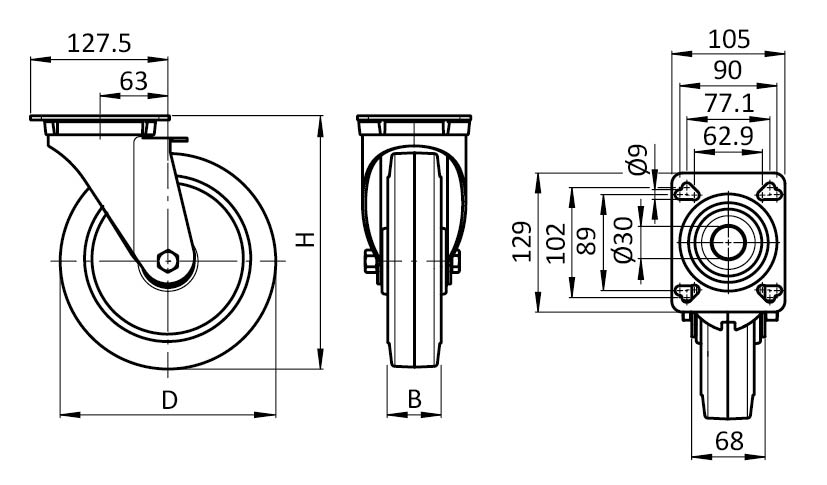

Product ID | H (mm) | B (mm) | ESD | D (mm) | Max. Load (N) | Wheel Body | Swivel Caster Tread |
---|---|---|---|---|---|---|---|
098S200AH129105 | 235 | 50 | 200 | 5800 | PA, white | PA, white | |
098S200EH129105 | 235 | 50 | 200 | 7800 | Aluminum, gray | PU, yellow | |
098S200EH129105ESD | 235 | 50 | ESD | 200 | 7800 | Aluminum, gray | PU, gray |
098S200GH129105 | 235 | 50 | 200 | 4900 | PA, black | Solid rubber, black | |
098S200UH129105 | 235 | 40 | 200 | 4900 | PA, gray | TPU, dark gray | |
098S200UH129105ESD | 235 | 40 | ESD | 200 | 3100 | PA, gray | TPU, dark gray |
