Holding Bracket AL D28

Product information "Holding Bracket AL D28"

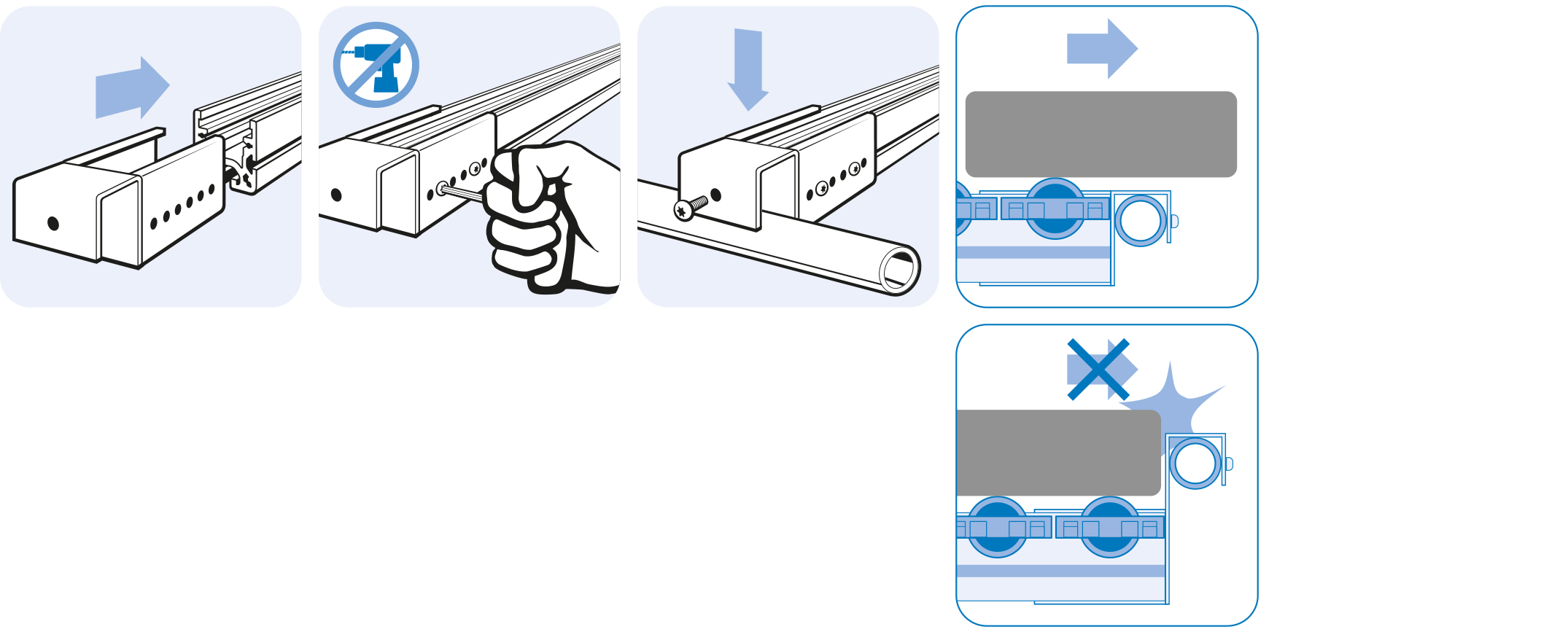

Assembly Set:
5 self-drilling screws DIN 7504 Form N - 3.9 x 16

Delivery Countries:
Worldwide

Description:

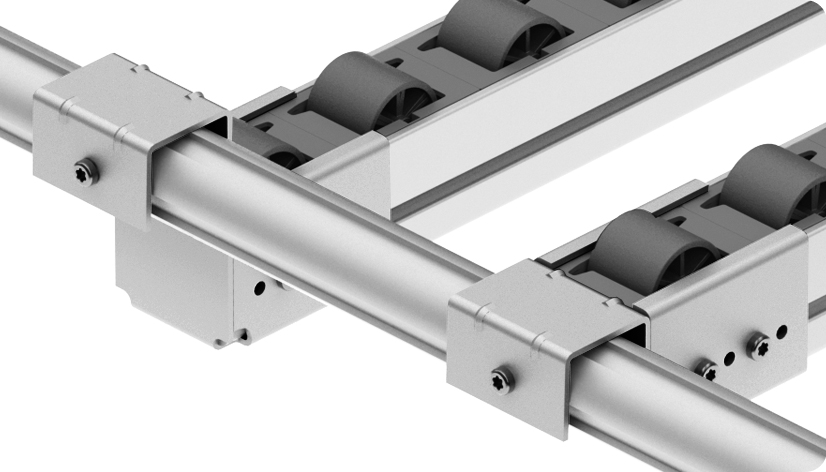

To mount AL roller track profiles to tubular frame profiles with Ø 28 mm outer diameter, preventing inserts from slipping out

Material:
Steel

Specials:
Other surfaces, other colors on request

Surface:
Zinc plated
(ECLASS 6.0): 36120490
(ECLASS 7.0): 36120490
(ECLASS 8.0): 36120490
(ECLASS 9.0): 36120490
(ECLASS 10.0): 36120490
(ECLASS 11.0): 36120492
(ECLASS 12.0): 36120492
(ECLASS 13.0): 36120492
Customs Tariff Number Export: 73269098
Model: For roller tracks AL
Pack Quantity: 10 pieces
Weight (g): 198.5
Zolltarifnummer: 73269098900
pA Number: 135023

Variants

Product ID Fig. Version
062AHD28M Without end stop
062AHD28MS01 Without end stop, with assembly set
062AHSD28M With end stop
062AHSD28MS01 With end stop, with assembly set
