Hook-and-loop Block

Product information "Hook-and-loop Block"

Color:
Cable binding block: Black
Hook-and-loop strap: Black

Delivery Countries:
Worldwide

Description:

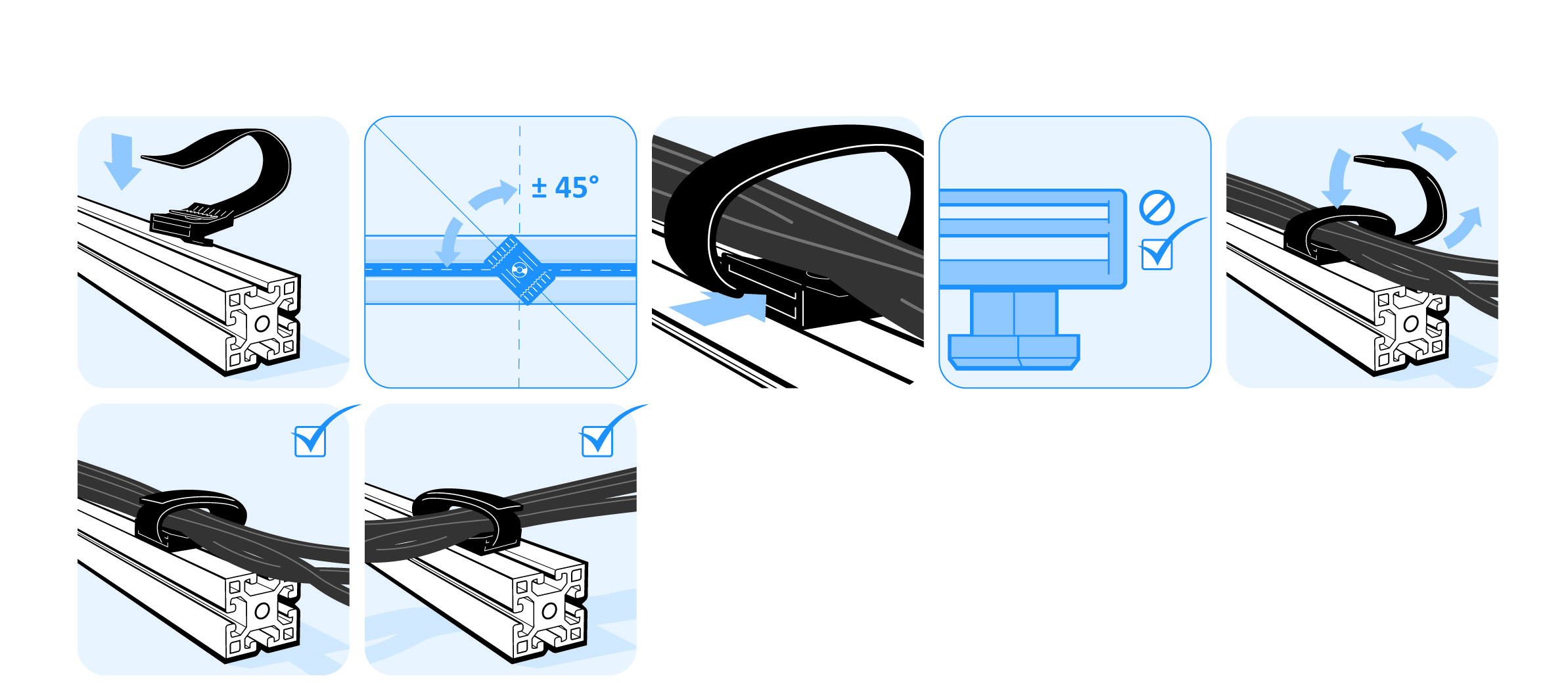

To fix cables to aluminum profiles in two directions without the need for cable ties, can be opened and closed again; can be mounted into the slot by an eight of a turn

Material:
Cable binding block: Plastic PA, glass fiber reinforced
Hook-and-loop strap: Plastic PP (UL94-V2)

Zolltarifnummer:
39269097900
(ECLASS 6.0): 27140701
(ECLASS 7.0): 27140701
(ECLASS 8.0): 27140701
(ECLASS 9.0): 27140701
(ECLASS 10.0): 27140701
(ECLASS 11.0): 27140701
(ECLASS 12.0): 27140701
(ECLASS 13.0): 27140701
Model: Plastic PA, Slot 8, 10
Pack Quantity: 10 pieces
Weight (g): 10.5

Variants

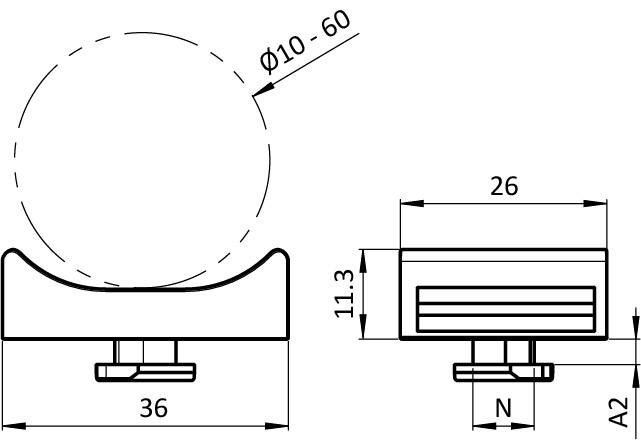

Product ID ØD (mm) Profile A2 (Profile) (mm) Slot N (mm)
093803N08S01 10 - 60 I 4.6 (4.5) 8
093809N10S01 10 - 60 B 5.8 (6.0) 10
