Hydraulic Lift Caster (Set)

Product information "Hydraulic Lift Caster (Set)"

Delivery Countries:
Worldwide

Description:

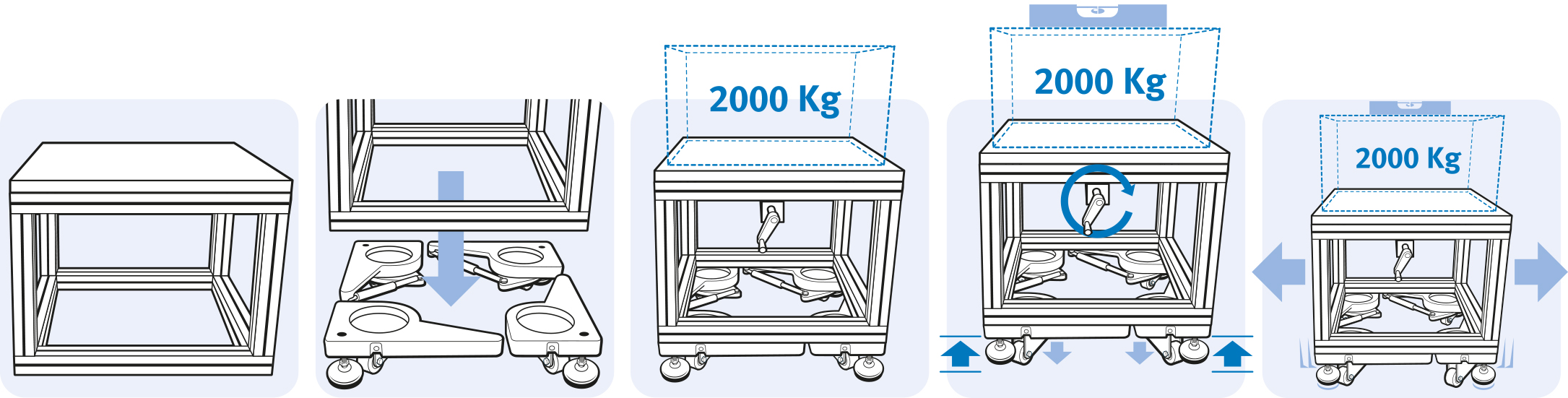

Lift castor system for a fast and flexible placing of plants or assembling tables;
gear transmission ratio: 10:1

Material:
Housing: Aluminum die-cast with PTFE bearing
Roller: Plastic PA with ball bearing
Roller housing: Zinc plated steel

Set:
4 lifting units
1 hydraulic drive unit
4 hydraulic pipes at each 3 m, pre-filled

Specials:
Other sets on request

Tip:
* Positioned centered

Zolltarifnummer:
84254200000
(ECLASS 6.0): 23370290
(ECLASS 7.0): 23370290
(ECLASS 8.0): 23370290
(ECLASS 9.0): 23370290
(ECLASS 10.0): 23370290
(ECLASS 11.0): 23370290
(ECLASS 12.0): 23370290
(ECLASS 13.0): 23370290
Model: Aluminum die-cast
Pack Quantity: 1 set
Weight (kg): 30.8

Variants

Product ID Profile Max. Load per Lifting Unit (kg) Fmax (N)
06001HR2000 I / B 500 *19600
