Industry Standard Quarter Turn Lock 22.5 / 18, SS

Description:

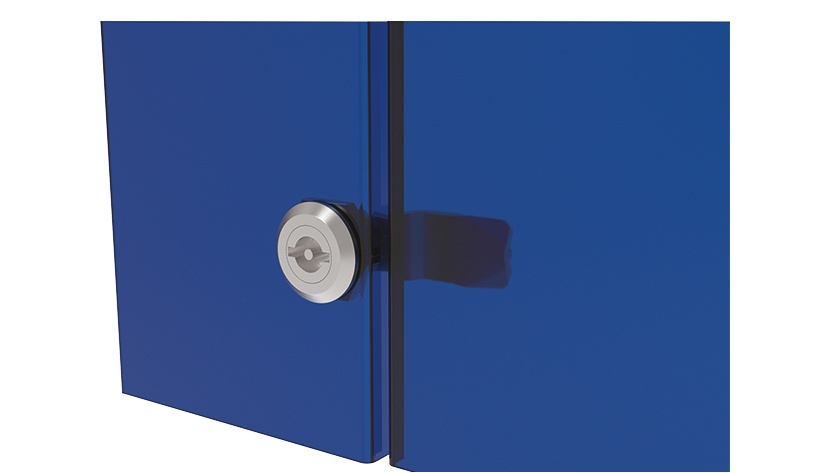

For easy and secure latching and locking of doors and flaps;
Wide range of inserts, cams and accessories

Material:
Insert: Stainless steel SS304
Housing: Stainless steel SS304
Cam: Steel
Seals: Rubber NBR
Wave washer: Stainless steel SS304
Nut: Zinc die-cast
Screw: Stainless steel SS304

Surface:
Cam: Zinc plated
Nut: Zinc plated

Color:
Seals: Black

Tip:
Compatible Cams see 0810247 et sq.
Accessories see 0890032 et sq.

Delivery Countries:
North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, Bulgaria

Pack Quantity:	10 pieces
Weight (g):	95.7
IP Rating:	IP65 / NEMA 4
Door Version:	Right, left
ERP Number:	124144

Variants

Part #	a (mm)	Insert type
0810159	4.0	Double bit 3.0 mm
0810160	4.0	Double bit 4.0 mm
0810161	4.0	Double bit 5.0 mm
0810127E	4.0	Slotted recess 2 x 4
0810162	4.0	Triangular 7.0 mm
0810163	4.0	Triangular 8.0 mm
0810164	4.0	Square 7.0 mm
0810165	4.0	Square 8.0 mm
0810123E	6.0	Key locking (Keyed FH333)
