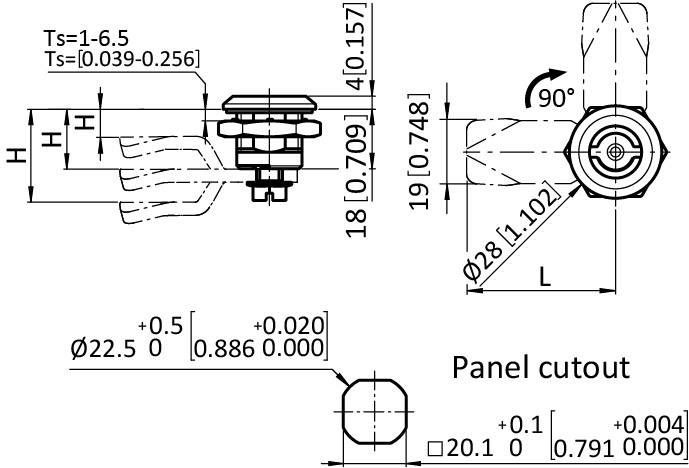

Industry Standard Quarter Turn Lock 22.5 / 18, Vibration Resistant

Product information "Industry Standard Quarter Turn Lock 22.5 / 18, Vibration Resistant"

Color:
Insert: Black / chrome
Housing: Black / chrome
Seal: Black

Delivery Countries:
North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, Bulgaria

Description:
For easy and secure latching and locking of doors and flaps;
Wide range of cams and accessories

Material:
Insert: Zinc die-cast
Housing: Zinc die-cast
Spring washer: Steel
Seal: Rubber NBR
Nut: Zinc die-cast
Screw: Steel

Surface:
Insert: Powder coated / chrome plated
Housing: Powder coated / chrome plated
Nut: Zinc plated
Screw: Zinc plated

Tip:
Compatible Cams see 0810247 et sq.
Accessories see 0890032 et sq.

Zolltarifnummer:
83014090000

(ECLASS 6.0):	23199090
(ECLASS 7.0):	23199090
(ECLASS 8.0):	23199090
(ECLASS 9.0):	23199090
(ECLASS 10.0):	23199090
(ECLASS 11.0):	23199090
(ECLASS 12.0):	23199090
(ECLASS 13.0):	23199090
Door Version:	Right, left
IP Rating:	IP65 / NEMA 4
Pack Quantity:	10 pieces
Pack Quantity (1):	10
Weight (g):	59.6

Variants

Product ID	Material	Color	Surface	Insert type
0850207	Zinc die-cast	Black	Powder coated	Double bit 4.0 mm
0850208	Zinc die-cast	Black	Powder coated	Slotted recess 2 x 4
0850209	Zinc die-cast	Black	Powder coated	Triangular 7.0 mm
0850210	Zinc die-cast	Black	Powder coated	Triangular 8.0 mm
0850211	Zinc die-cast	Black	Powder coated	Square 7.0 mm
0850212	Zinc die-cast	Black	Powder coated	Square 8.0 mm
0850213	Zinc die-cast	Chrome	Chrome plated	Double bit 4.0 mm
0850214	Zinc die-cast	Chrome	Chrome plated	Slotted recess 2 x 4
0850215	Zinc die-cast	Chrome	Chrome plated	Triangular 7.0 mm
0850216	Zinc die-cast	Chrome	Chrome plated	Triangular 8.0 mm
0850217	Zinc die-cast	Chrome	Chrome plated	Square 7.0 mm
0850218	Zinc die-cast	Chrome	Chrome plated	Square 8.0 mm
