Industry Standard Quarter Turn Lock 22.5 / 18, ZN Black

Product information "Industry Standard Quarter Turn Lock 22.5 / 18, ZN Black"

Color:
Insert: Black
Housing: Black
Seals: Black

Delivery Countries:
North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, Bulgaria

Description:

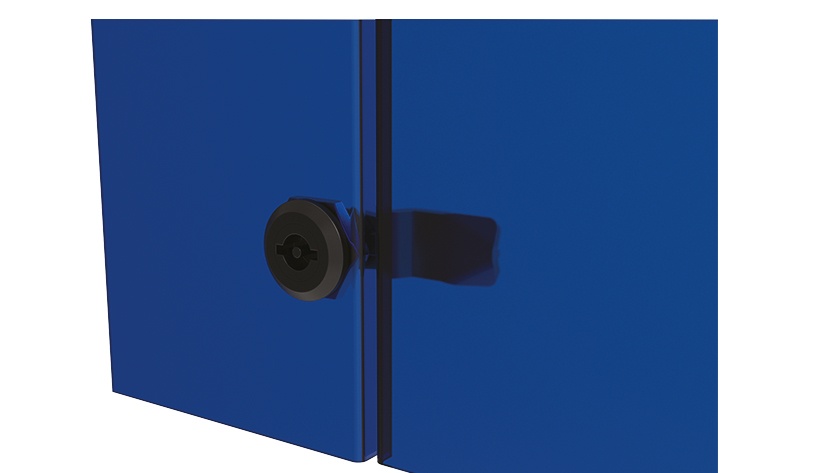

For easy and secure latching and locking of doors and flaps;
Wide range of inserts, cams and accessories

Material:
Insert: Zinc die-cast
Housing: Zinc die-cast
Cam: Steel
Seals: Rubber NBR
Wave washer: Stainless steel SS304
Nut: Zinc die-cast
Screw: Steel

Surface:
Insert: Powder coated
Housing: Powder coated
Cam: Zinc plated
Nut: Zinc plated
Screw: Zinc plated

Tip:
Compatible Cams see 0810247 et sq.
Accessories see 0890032 et sq.

Pack Quantity:	10 pieces
Weight (g):	89.0
IP Rating:	IP65 / NEMA 4
Door Version:	Right, left
ECLASS 6.0:	23199090
ECLASS 7.0:	23199090
ECLASS 8.0:	23199090
ECLASS 9.0:	23199090
ECLASS 10.0:	23199090
ECLASS 11.0:	23199090
ECLASS 12.0:	23199090
ECLASS 13.0:	23199090
Zolltarifnummer:	83014090000
Customs Tariff Number Export:	83014090
ERP Number:	137047

Variants

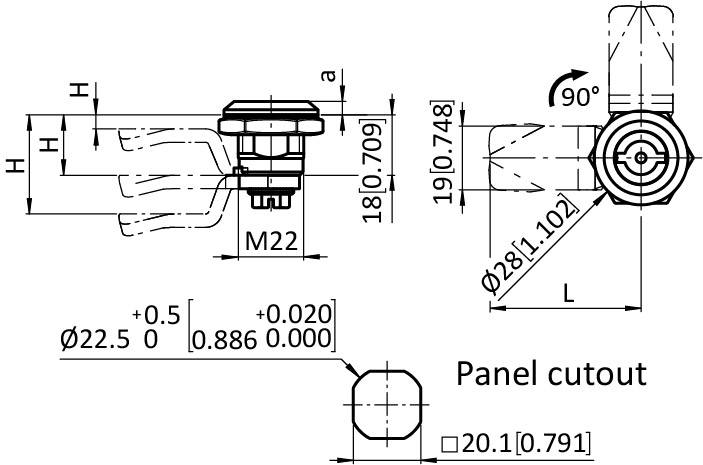

Part #	a (mm)	Insert type
0810141	6.0	Key locking (Keyed FH333)
0810142	4.0	Double bit 3.0 mm
0810143	4.0	Double bit 4.0 mm
0810144	4.0	Double bit 5.0 mm
0810145	4.0	Slotted recess 2 x 4
0810145S01	4.0	Slotted recess 2 x 4 coin proof
0810146	4.0	Triangular 7.0 mm
0810147	4.0	Triangular 8.0 mm
0810148	4.0	Square 7.0 mm
0810149	4.0	Square 8.0 mm
0810150	4.0	Square 7.0 mm with slotted recess
0810151	4.0	Square 8.0 mm with slotted recess
0810152	4.0	Female square 7.0 mm
0810153	4.0	Female hexagon 8.0 mm
0810153S01	4.0	Female hexagon 9.0 mm
0810154	4.0	Female hexagon with 3 mm pin (Bellcore Standard) 5/16"
0810155	4.0	Male hexagon 11.0 mm
0810554	4.0	Square 6.0 mm
0810558	4.0	Triangular 10.0 mm with M5 screw hole
0810561	4.0	Female hexagon 10.0 mm
