Inner Connector R

Product information "Inner Connector R"

Delivery Countries:
Worldwide

Description:

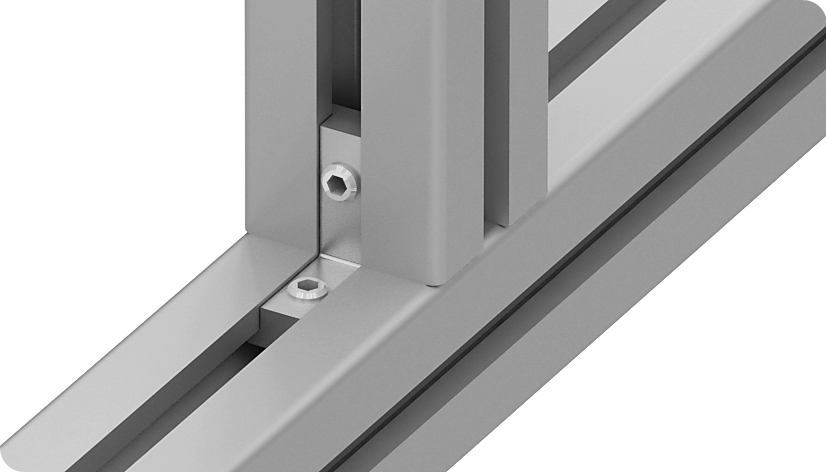

To connect two aluminum profiles, assembly without machining

Material:
Inner Connector ST version: Zinc-plated cast steel
Inner Connector ZN version: Zinc-plated zinc die-cast
Hexagon socket set screws: Zinc-plated steel

(ECLASS 6.0):	23360290
(ECLASS 7.0):	23360290
(ECLASS 8.0):	23360290
(ECLASS 9.0):	23360290
(ECLASS 10.0):	23360290
(ECLASS 11.0):	23360290
(ECLASS 12.0):	23360290
(ECLASS 13.0):	23360290
Customs Tariff Number Export:	73259990
Model:	Cast steel / zinc die-cast
Pack Quantity:	10 pieces
Weight (g):	27.0
pA Number:	132679

Variants

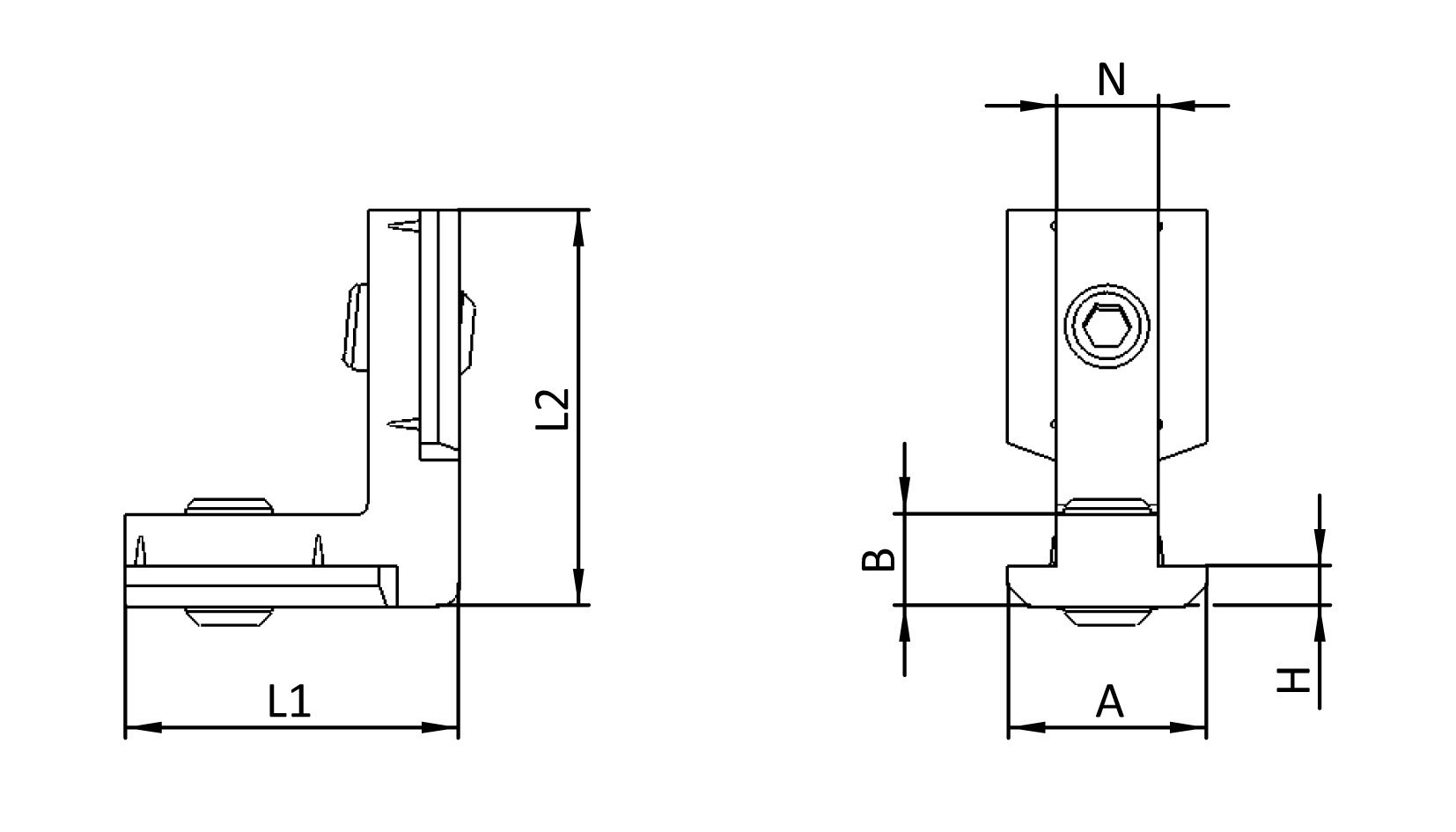

Product ID	L1 (mm)	Profile	Version	B (mm)	H (mm)	Hexagon socket set screw	Slot N (mm)	A (mm)	L2 (mm)
099I90R06	21.6	B	ZN zinc die-cast	4.5	3.0	M5	6	11.3	21.6
099I90R06M	21.6	B	ST cast steel	4.5	3.0	M5	6	11.3	21.6
099I90R08	21.6	B	ZN zinc die-cast	7.8	6.0	M6	8	15.8	30.0
099I90R08M	21.6	B	ST cast steel	7.8	6.0	M6	8	15.8	30.0
099I90R10	32.0	B	ZN zinc die-cast	8.8	3.8	M8	10	19.0	38.0
099I90R10M	32.0	B	ST cast steel	8.8	3.8	M8	10	19.0	38.0
