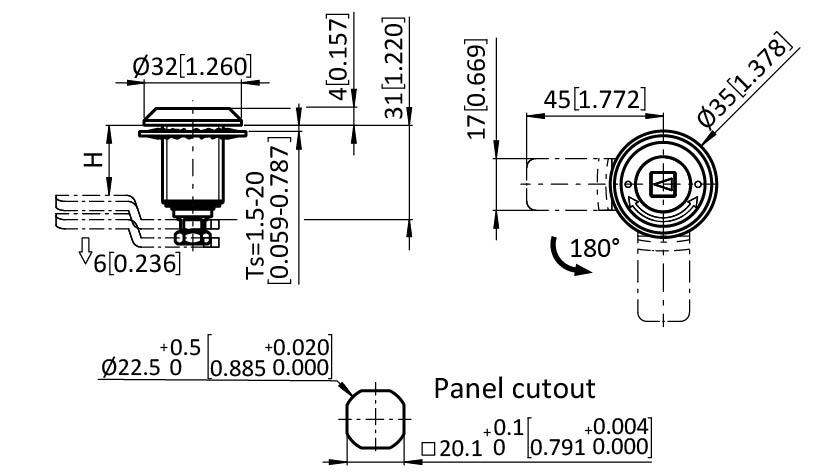

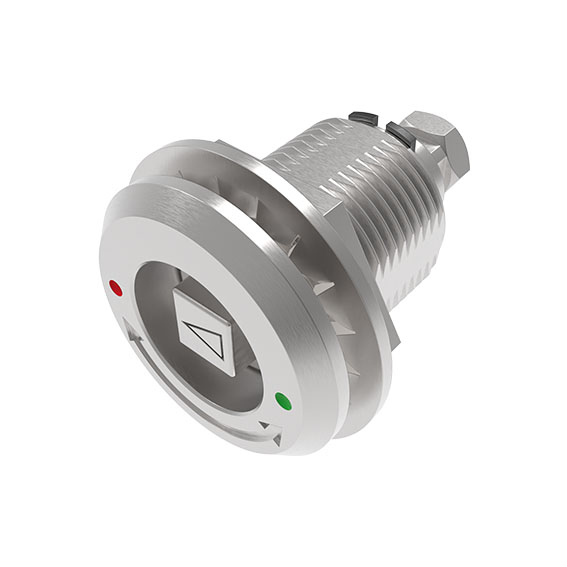

Large Compression Latch, 22.5 / 31, SS, Arrowhead with Indicator

€0.00*

Prices excl. VAT plus shipping costs

Door Version

Left

Right

Insert type

Square 8.0 mm

Part #: 0813130

Product information "Large Compression Latch, 22.5 / 31, SS, Arrowhead with Indicator"

Color:
Seal: Black

Delivery Countries:
North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, Bulgaria

Description:

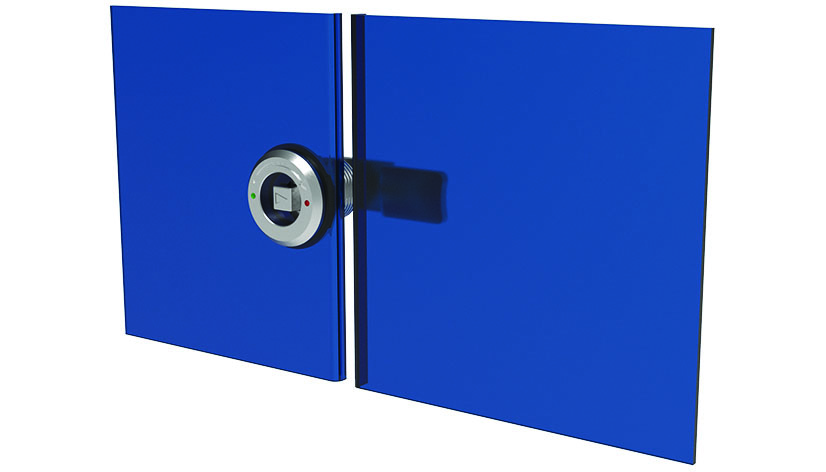

For easy, secure and compressive latching and locking of doors and flaps;
Wide range of inserts, cams and accessories

Material:
Insert: Stainless steel SS316
Shaft: Stainless steel SS316
Retaining spring: Stainless steel SS440
Housing: Stainless steel SS316
Seal: Rubber NBR
Washer: Steel
Nut: Stainless steel SS316
Screw: Steel

Specials:
IP65 / NEMA 4 on request

Surface:
Washer: Zinc plated
Screw: Zinc plated

Tip:
Compatible Cams see 0810247 et sq.
Accessories see 0890032 et sq.

(ECLASS 6.0):	23199090
(ECLASS 7.0):	23199090
(ECLASS 8.0):	23199090
(ECLASS 9.0):	23199090
(ECLASS 10.0):	23199090
(ECLASS 11.0):	23199090
(ECLASS 12.0):	23199090
(ECLASS 13.0):	23199090
Customs Tariff Number Export:	83014090
ERP Number:	139467
Pack Quantity:	10 pieces
Weight (g):	97.2
Zolltarifnummer:	83014090000

Variants

Product ID	Insert type	Door Version
0813130	Square 8.0 mm	Left
0813131	Square 8.0 mm	Right
