Large Compression Latch, 22.5 / 31, SS

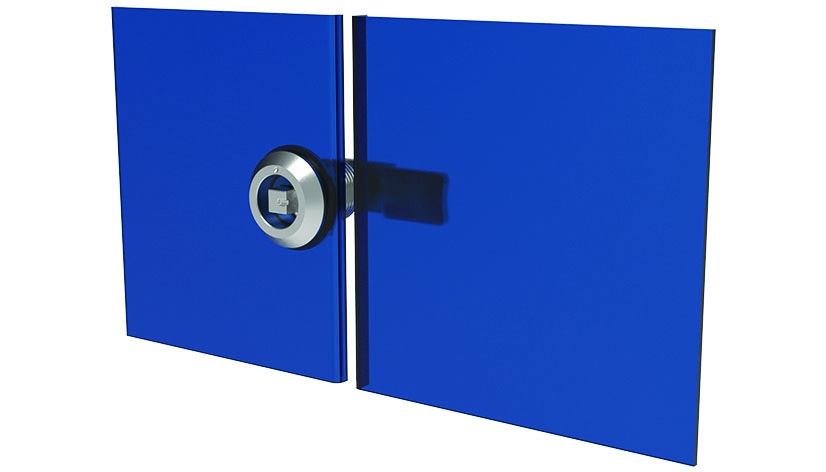

Large Compression Latch, 22.5 / 31, SS – application example

€0.00

Insert type

Double bit 3.0 mm

Double bit 5.0 mm

Slotted recess 2 x 4

Square 8.0 mm

Part #: 0813129

Pack Quantity: 10 pieces

Product information "Large Compression Latch, 22.5 / 31, SS"

Color:
Seal: Black

Delivery Countries:
North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, Bulgaria

Description:
For easy, secure and compressive latching and locking of doors and flaps;
Wide range of inserts, cams and accessories

Material:
Insert: Stainless steel SS316
Shaft: Stainless steel SS316
Retaining spring: Stainless steel SS440
Housing: Stainless steel SS316
Seal: Rubber NBR
Washer: Steel
Nut: Stainless steel SS316
Screw: Steel

Specials:
IP65 / NEMA 4 on request

Surface:
Washer: Zinc plated
Screw: Zinc plated

Tip:
Compatible Cams see 0810247 et sq.
Accessories see 0890032 et sq.
