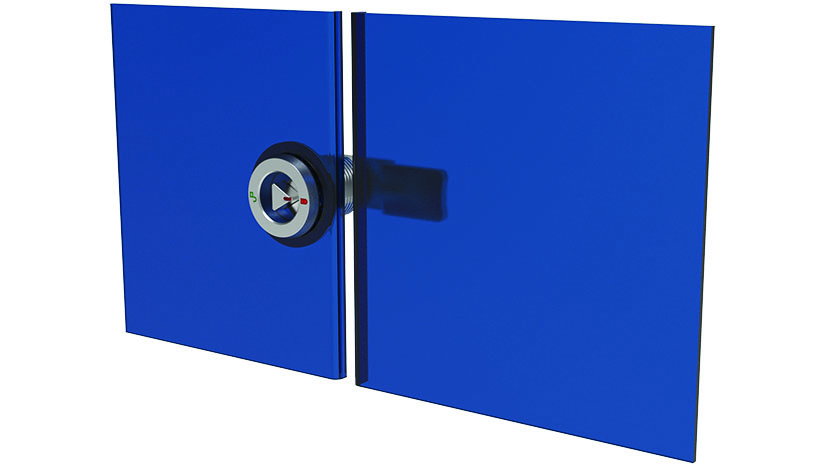

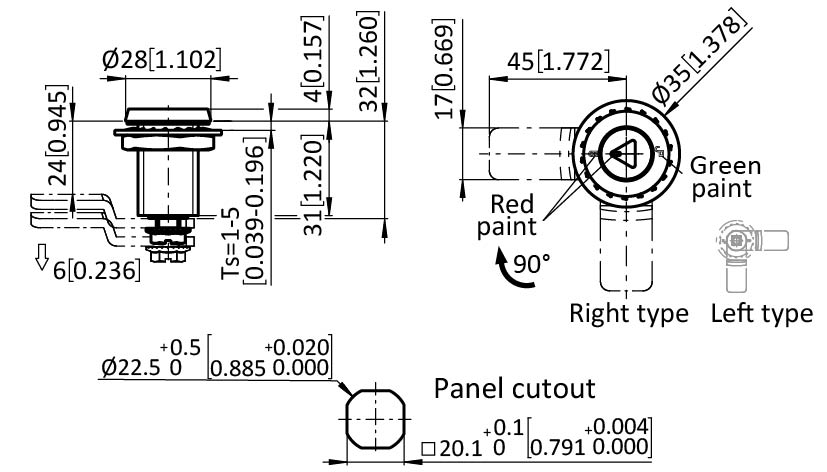

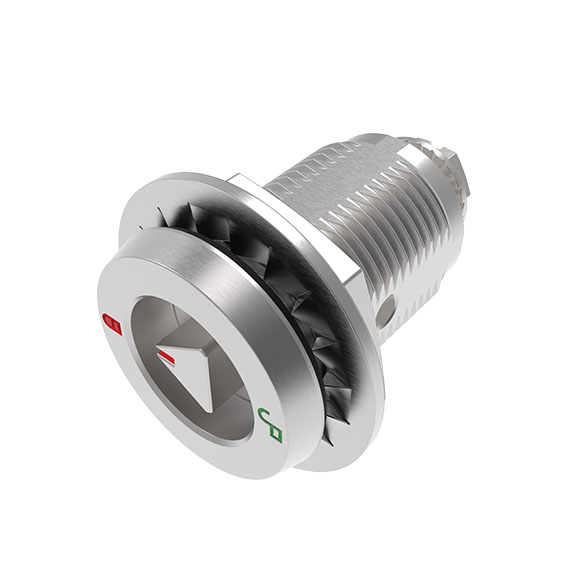

Large Compression Latch, 22.5 / 31, with Indicator, SS

Product information "Large Compression Latch, 22.5 / 31, with Indicator, SS"

Color:
Seals: Black

Delivery Countries:
North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, Bulgaria

Description:
For easy, secure and compressive latching and locking of doors and flaps;
Wide range of inserts, cams and accessories

Material:
Insert: Stainless steel SS316
Shaft: Stainless steel SS316
Housing: Stainless steel SS316
Cam: Steel
Seals: Rubber NBR
Washer: Steel
Nut: Stainless steel SS316
Screw: Steel

Surface:
Washer: Zinc plated
Cam: Zinc plated
Screw: Zinc plated

Tip:
Compatible Cams see 0810247 et sq.
Accessories see 0890032 et sq.

Zolltarifnummer:
83014090000
(ECLASS 6.0): 23199090
(ECLASS 7.0): 23199090
(ECLASS 8.0): 23199090
(ECLASS 9.0): 23199090
(ECLASS 10.0): 23199090
(ECLASS 11.0): 23199090
(ECLASS 12.0): 23199090
(ECLASS 13.0): 23199090
Door Version: Right, left
Pack Quantity: 10 pieces
Weight (g): 134.0

Variants

Product ID Door Version Insert type
0813058 Left Square 7.0 mm
0813059 Right Square 7.0 mm
0813060 Left Triangular 8.0 mm
0813061 Right Triangular 8.0 mm
