Large Compression Latch 22.5 / 32, Long Shaft, incl. Cam Offset (Set)

Product information "Large Compression Latch 22.5 / 32, Long Shaft, incl. Cam Offset (Set)"

Color:
Insert: Black
Housing: Black
Seals: Black

Delivery Countries:
North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, Bulgaria

Description:

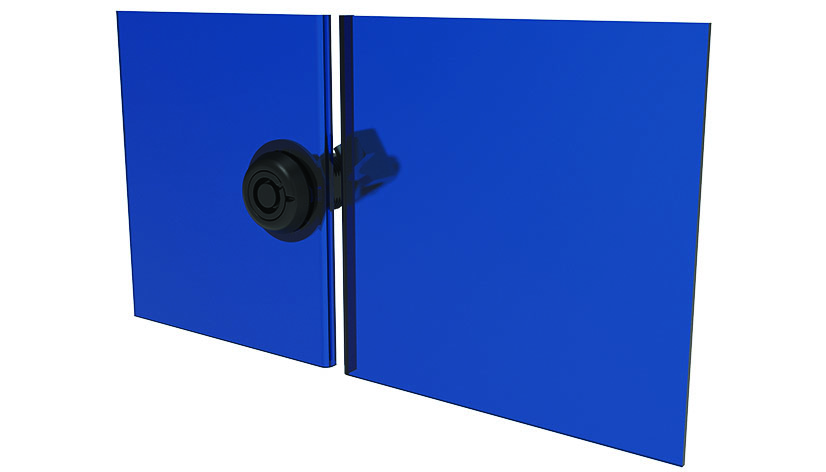

For easy, secure and compressive latching and locking of doors and flaps

Material:
Insert: Zinc die-cast
Shaft: Steel
Retaining spring: Stainless steel SS316
Housing: Zinc die-cast
Cam: Steel
Seals: Rubber NBR
Washer: Steel
Nut: Steel
Assembly material: Steel

Surface:
Insert: Powder coated
Shaft: Zinc plated
Housing: Powder coated
Cam: Zinc plated
Washer: Zinc plated
Nut: Zinc plated
Assembly material: Zinc plated

Tip:
Compatible Dust Cap see 0890037
Compatible Finger Pull see 0890034

Pack Quantity:	10 pieces
Weight (g):	141.7
IP Rating:	IP65 / NEMA 4
Door Version:	Right, left
ECLASS 6.0:	23199090
ECLASS 7.0:	23199090
ECLASS 8.0:	23199090
ECLASS 9.0:	23199090
ECLASS 10.0:	23199090
ECLASS 11.0:	23199090
ECLASS 12.0:	23199090
ECLASS 13.0:	23199090
Customs Tariff Number Export:	83015000
ERP Number:	121994

Variants

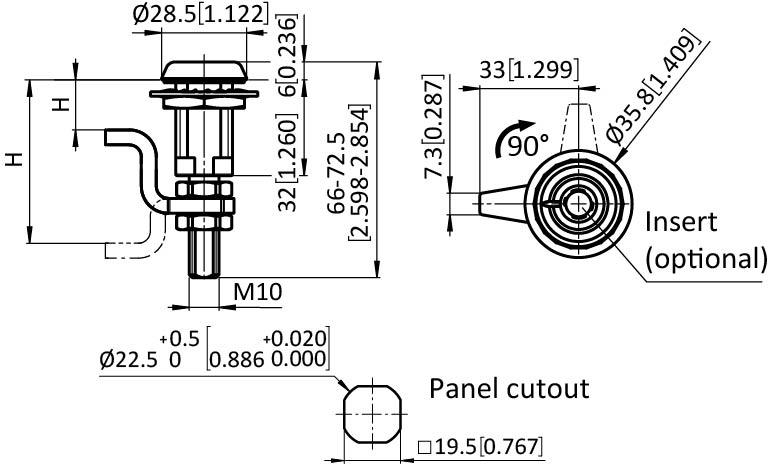

Part #	H (mm)	Insert type
0810237	11.4 - 27.2 / 66.3 - 76.2	Tubular
0810238	25.4 - 41.1 / 52.6 - 68.3	Tubular
0810240	11.4 - 27.2 / 66.3 - 76.2	Double bit 3.0 mm
0810241	25.4 - 41.1 / 52.6 - 68.3	Double bit 3.0 mm
0810243	11.4 - 27.2 / 66.3 - 76.2	Triangular 7.0 mm
0810244	25.4 - 41.1 / 52.6 - 68.3	Triangular 7.0 mm
0810355	11.4 - 27.2 / 66.3 - 76.2	Triangular 8.0 mm
0810356	25.4 - 41.1 / 52.6 - 68.3	Triangular 8.0 mm
0810358	11.4 - 27.2 / 66.3 - 76.2	Square 7.0 mm
0810359	25.4 - 41.1 / 52.6 - 68.3	Square 7.0 mm
0810361	11.4 - 27.2 / 66.3 - 76.2	Slotted recess
0810362	25.4 - 41.1 / 52.6 - 68.3	Slotted recess
0810364	11.4 - 27.2 / 66.3 - 76.2	Female hexagon 8.0 mm
0810365	25.4 - 41.1 / 52.6 - 68.3	Female hexagon 8.0 mm
0810367	11.4 - 27.2 / 66.3 - 76.2	Male hexagon 10.0 mm
0810368	25.4 - 41.1 / 52.6 - 68.3	Male hexagon 10.0 mm
0810370	25.4 - 41.1 / 52.6 - 68.3	Wing knob
0810371	25.4 - 41.1 / 52.6 - 68.3	Wing knob
0811039	11.4 - 27.2 / 66.3 - 76.2	Square 8.0 mm
0811040	25.4 - 41.1 / 52.6 - 68.3	Square 8.0 mm
