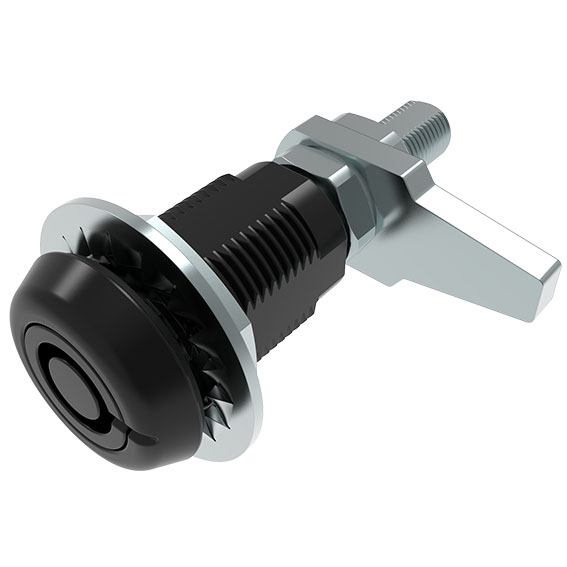

Large Compression Latch 22.5 / 32, Long Shaft, incl. Cam Straight (Set)

Product information "Large Compression Latch 22.5 / 32, Long Shaft, incl. Cam Straight (Set)"

Color:
Insert: Black
Housing: Black
Seals: Black

Delivery Countries:
North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, Bulgaria

Description:

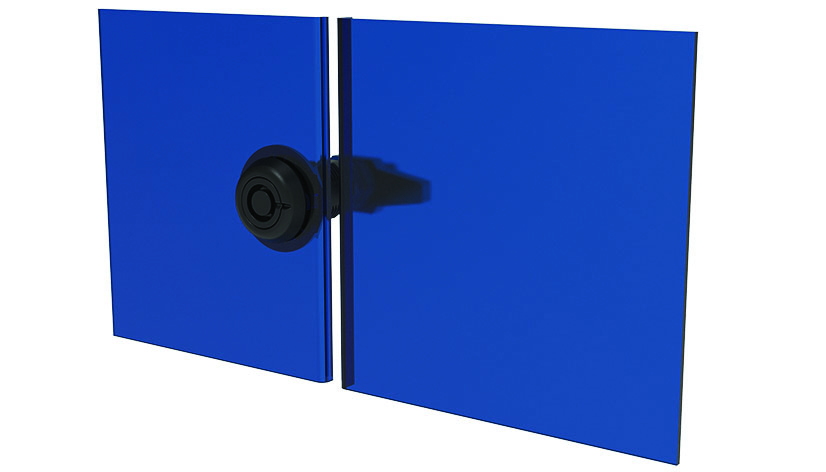

For easy, secure and compressive latching and locking of doors and flaps

Material:
Insert: Zinc die-cast
Shaft: Steel
Retaining spring: Stainless steel SS316
Housing: Zinc die-cast
Cam: Steel
Seals: Rubber NBR
Washer: Steel
Nut: Steel
Assembly material: Steel

Surface:
Insert: Powder coated
Shaft: Zinc plated
Housing: Powder coated
Cam: Zinc plated
Washer: Zinc plated
Nut: Zinc plated
Assembly material: Zinc plated

Tip:
Compatible Dust Cap see 0890037
Compatible Finger Pull see 0890034

Pack Quantity:	10 pieces
Weight (g):	141.7
IP Rating:	IP65 / NEMA 4
Door Version:	Right, left
ERP Number:	139309

Global keywords / tags:

Application Area	Machinery & Plant Engineering

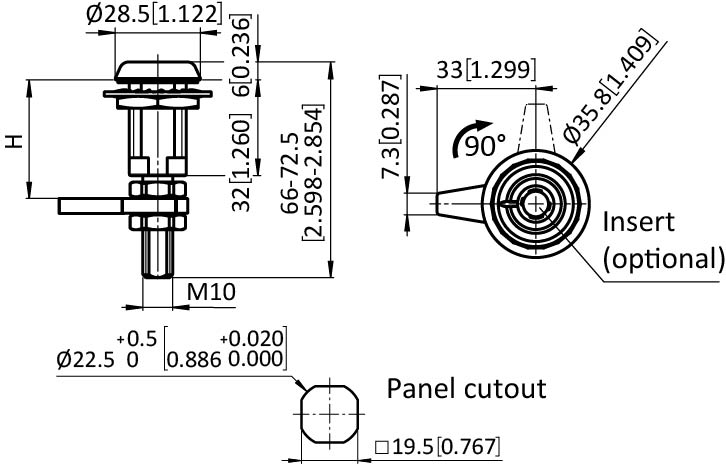

Variants

Part #	H (mm)	Insert type
0810239	38.9 - 54.6	Tubular
0810242	38.9 - 54.6	Double bit 3.0 mm
0810245	38.9 - 54.6	Triangular 7.0 mm
0810357	38.9 - 54.6	Triangular 8.0 mm
0810360	38.9 - 54.6	Square 7.0 mm
0810363	38.9 - 54.6	Slotted recess
0810366	38.9 - 54.6	Female hexagon 8.0 mm
0810369	38.9 - 54.6	Male hexagon 10.0 mm
0810372	38.9 - 54.6	Wing knob
0811041	38.9 - 54.6	Square 8.0 mm

CAD Downloads

Classifications

ECLASS 6.0: 23199090
ECLASS 7.0: 23199090
ECLASS 8.0: 23199090
ECLASS 9.0: 23199090
ECLASS 10.0: 23199090
ECLASS 11.0: 23199090
ECLASS 12.0: 23199090
ECLASS 13.0: 23199090
Zolltarifnummer: 83015000000
Customs Tariff Number Export: 83015000

Certificates
