Large Compression Latch 22.5 / 32, ZN Black

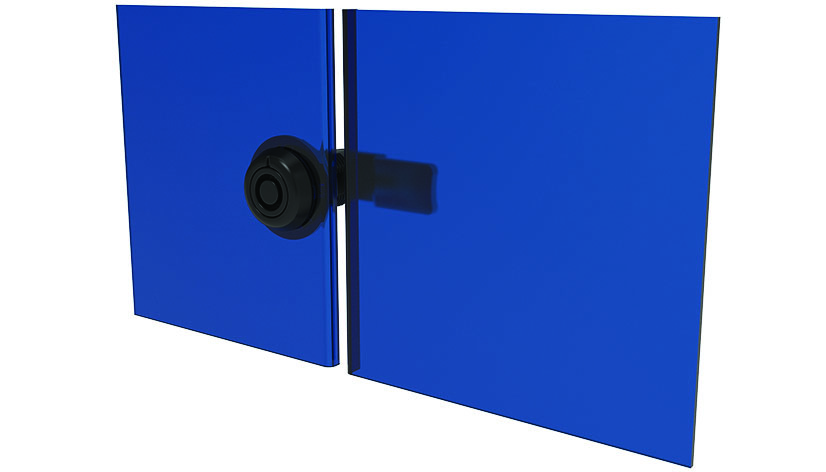

Large Compression Latch 22.5 / 32, ZN Black – application example

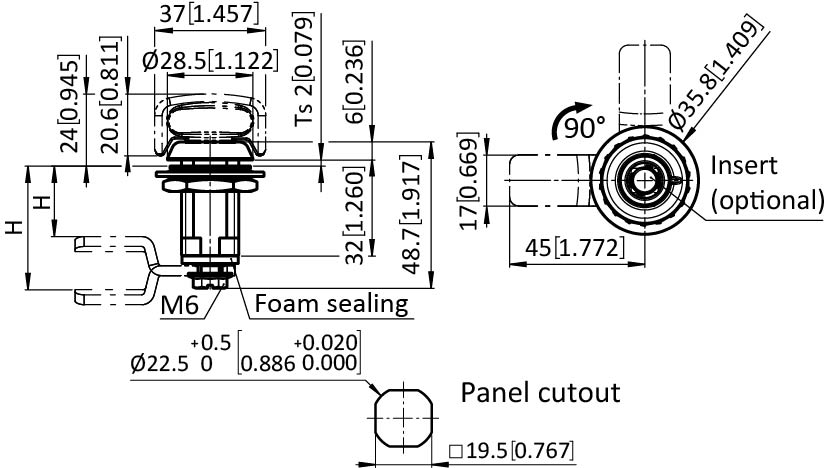

Product information "Large Compression Latch 22.5 / 32, ZN Black"

Color:
Insert: Black
Housing: Black
Seals: Black

Delivery Countries:
North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, Bulgaria

Description:
For easy, secure and compressive latching and locking of doors and flaps;
Wide range of inserts, cams and accessories

Material:
Insert: Zinc die-cast
Shaft: Steel
Retaining spring: Stainless steel SS316
Housing: Zinc die-cast
Seals: Rubber NBR
Washer: Steel
Nut: Zinc die-cast
Screw: Steel

Surface:
Insert: Powder coated
Shaft: Zinc plated
Housing: Powder coated
Washer: Zinc plated
Nut: Zinc plated
Screw: Zinc plated

Tip:
Compatible Cams see 0810247 et sq.
Accessories see 0890032 et sq.

Pack Quantity:	10 pieces
Weight (g):	86.5
Door Version:	Right, left
ERP Number:	135240

Global keywords / tags:

Application Area	Machinery & Plant Engineering

Variants

Part #	Insert type
0810488	Tubular
0810489	Double bit 4.0 mm
0810490	Triangular 7.0 mm
0810491	Triangular 8.0 mm
0810492	Square 7.0 mm
0810493	Square 8.0 mm
0810494	Slotted recess
0810495	Female hexagon 8.0 mm
0810496	Male hexagon 10.0 mm
0810497	Wing knob

CAD Downloads

Classifications

ECLASS 6.0: 23199090
ECLASS 7.0: 23199090
ECLASS 8.0: 23199090
ECLASS 9.0: 23199090
ECLASS 10.0: 23199090
ECLASS 11.0: 23199090
ECLASS 12.0: 23199090
ECLASS 13.0: 23199090
Zolltarifnummer: 83014090000
Customs Tariff Number Export: 83014090
