Leveling Caster with Mounting Plate 40 / 45

Product information "Leveling Caster with Mounting Plate 40 / 45"

Color:
Housing: White aluminum ≈ RAL 9006
Adjustment wheel: Orange ≈ RAL 2004
Stamp: Black
Roller: Black

Delivery Countries:
Worldwide

Description:
Reliable leveling caster with integrated mounting plate
For fixation to aluminum profiles with modular dimension 40 and 45 mm without overhang
No additional transport and base plate needed;

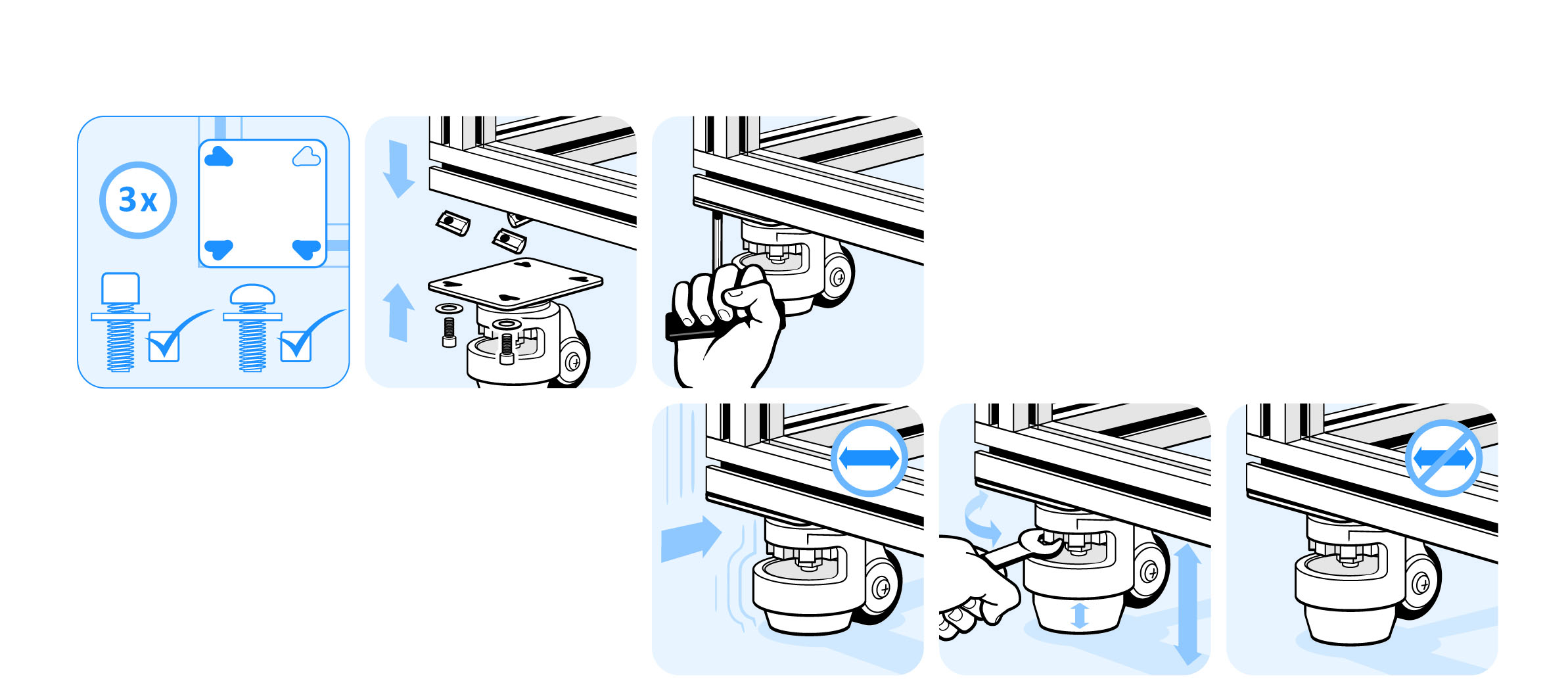

Roller movement locking by temporary positioning on stamp, actuation of the height adjustment of the stamp via adjustement wheel in the caster housing with wrench

Material:
Mounting plate: Steel
Housing: Aluminum die-cast
Adjustment wheel: Plastic PA
Stamp: Rubber NBR
Roller: Plastic PA

Surface:
Mounting plate: Zinc plated
Housing: Powder coated

Zolltarifnummer:
76169910990
(ECLASS 6.0): 23370290
(ECLASS 7.0): 23370290
(ECLASS 8.0): 23370290
(ECLASS 9.0): 23370290
(ECLASS 10.0): 23370290
(ECLASS 11.0): 23370290
(ECLASS 12.0): 23370290
(ECLASS 13.0): 23370290
Model: With mounting plate
Pack Quantity: 1 piece
Weight (g): 1345.0

Variants

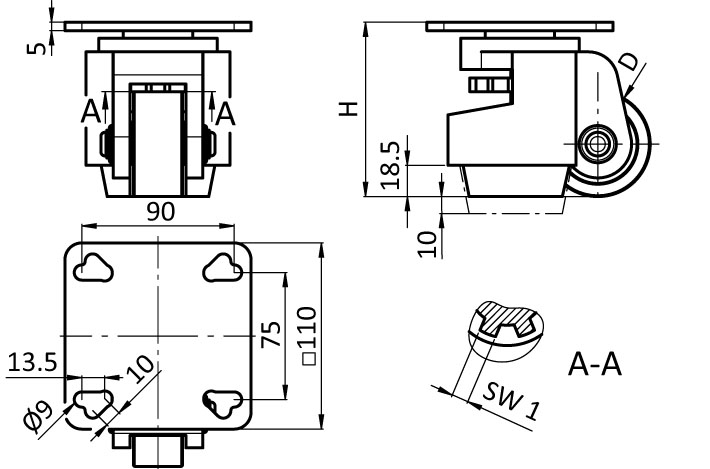

Product ID H (mm) SW 1 Max. Load (kg) D (mm)
098LF062AF110110 103 12 500 62
