Leveling Foot Bracket 80/90 x 100

Product information "Leveling Foot Bracket 80/90 x 100"

Assembly Set:
2 centering pieces - slot 8 to slot 10

Color:
Alu color

Delivery Countries:
Worldwide

Description:

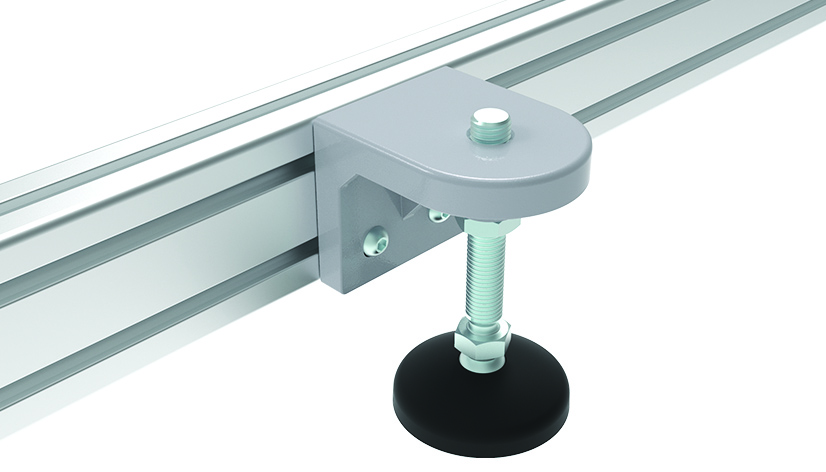

For height-adjustable mounting of leveling feet on the side of the profile frame, for small floor distance and low center of gravity

Material:
Leveling foot bracket: Aluminum die-cast
Centering piece: Zinc die-cast

Surface:
Leveling foot bracket: Powder coated
Centering piece: Plain

Zolltarifnummer:
76169910990
(ECLASS 6.0): 23250190
(ECLASS 7.0): 23250190
(ECLASS 8.0): 23250190
(ECLASS 9.0): 23250190
(ECLASS 10.0): 23250190
(ECLASS 11.0): 23250392
(ECLASS 12.0): 23250392
(ECLASS 13.0): 23250392
Model: Aluminum die-cast, profile 80 and up
Pack Quantity: 10 pieces / 10 set
Weight (g): 374.1

Variants

Product ID M Version
093BA1001D80M12 M12
093BA1001D80M12S01 M12 incl. assembly set
093BA1001D80M16 M16
093BA1001D80M16S01 M16 incl. assembly set

CAD Downloads

Certificates
