Lift Door Guide (Set)

Product information "Lift Door Guide (Set)"

Color:
Housing: Black

Delivery Countries:
Worldwide

Description:

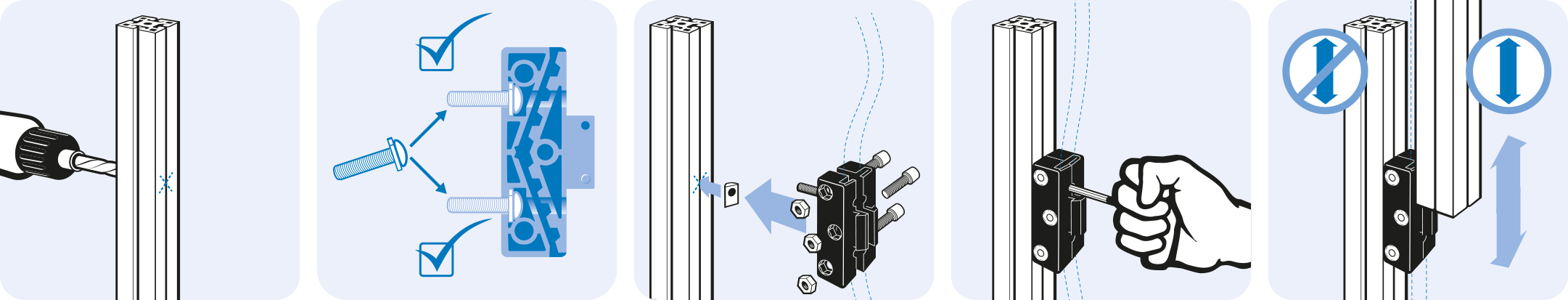

To assemble sliding doors with 25 mm width PUR toothed belt DIN 7721 T10 (not included in delivery)

Material:
Housing: Plastic POM
Assembly set: Steel

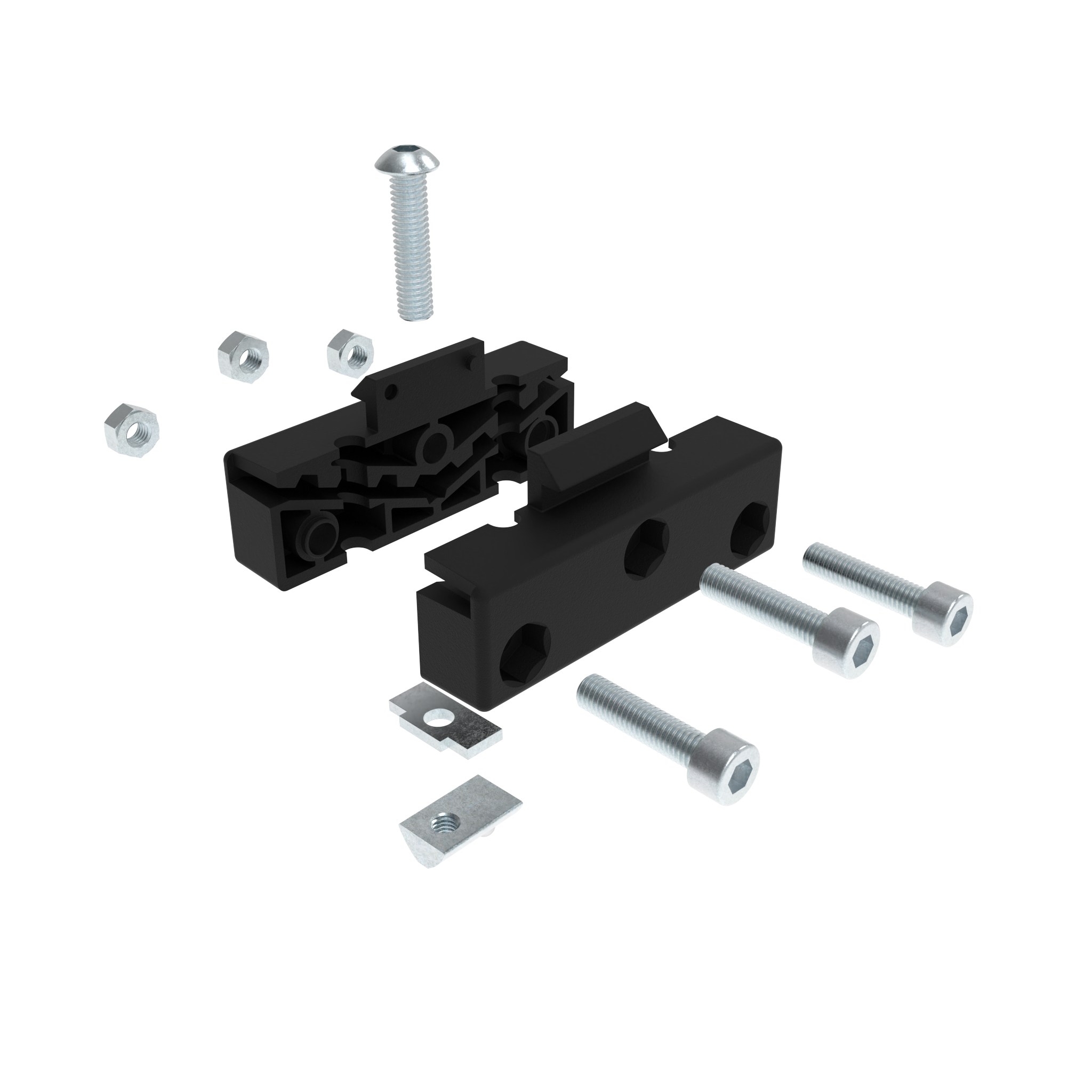

Set:
1 two-part housing,
1 inlay sheet,
1 screw DIN EN ISO 7380 (DIN 34805) - M6 x 25,
3 hexagon nuts DIN EN ISO 4032 (DIN 934) - M6,
3 screws DIN EN ISO 4762 (DIN 912) - M6 x 25,
1 T-slot nuts - Nut 8 - M 6

Surface:
Assembly set: Zinc plated
(ECLASS 6.0): 23369290
(ECLASS 7.0): 23369290
(ECLASS 8.0): 23369290
(ECLASS 9.0): 23369290
(ECLASS 10.0): 23369290
(ECLASS 11.0): 23360192
(ECLASS 12.0): 23360192
(ECLASS 13.0): 23360192
Customs Tariff Number Export: 39269097
Model: Plastic POM
Pack Quantity: 10 sets
Weight (g): 97.0
Zolltarifnummer: 39269097900
pA Number: 100428

Variants

Product ID Profile Slot N (mm)
093087S01 I 8

CAD Downloads

Certificates
