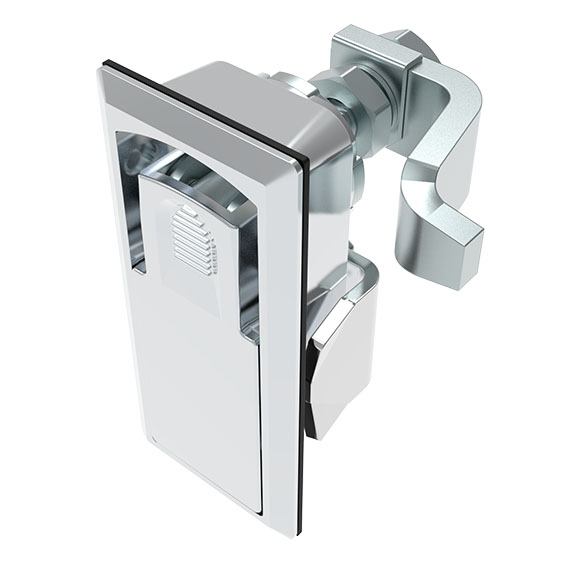

Lift & Turn Compression Latch 73 x 30 Chrome, incl. Cam (Set)

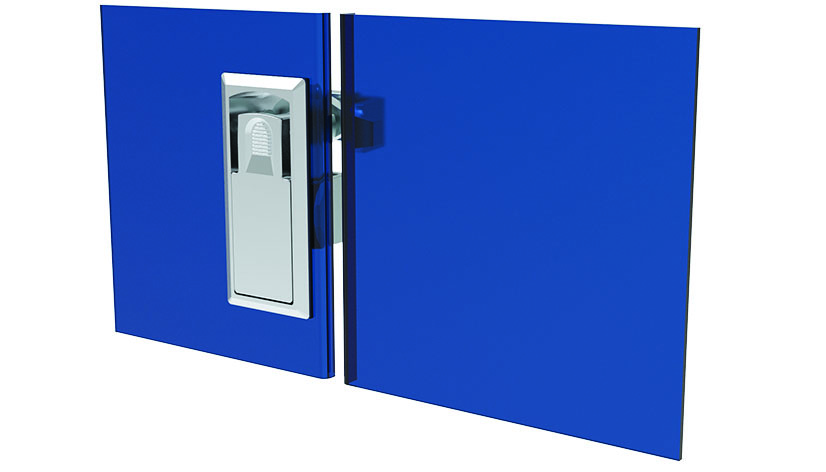

Lift & Turn Compression Latch 73 x 30 Chrome, incl. Cam (Set) – application example

€0.00

H (mm)

6 - 16 / 56 - 66

16 - 26 / 46 - 56

26 - 36 / 36 - 46

Insert type

Key locking (Keyed FH751)

Non-locking

Part #: 0811051

Pack Quantity: 10 pieces

Product information "Lift & Turn Compression Latch 73 x 30 Chrome, incl. Cam (Set)"

Color:
Handle: Chrome
Housing: Chrome
Washer Housing: Black

Delivery Countries:
North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, Bulgaria

Description:
For easy, secure and compressive latching and locking of doors and flaps

Material:
Handle: Zinc die-cast
Shaft: Steel
Return spring: Spring steel SS9260
Housing: Zinc die-cast
Cam: Steel
Mounting bracket: Steel
Srew: Steel
Washers: Steel
Washer housing: Rubber NBR
Assembly material: Steel

Surface:
Handle: Chrome plated
Shaft: Zinc plated
Housing: Chrome plated
Cam: Zinc plated
Mounting bracket: Zinc plated
Screw: Zinc plated
Washers: Zinc plated
Assembly material: Zinc plated

Pack Quantity:	10 pieces
Weight (g):	227.0
ERP Number:	139317

Global keywords / tags:

Application Area	Machinery & Plant Engineering

Variants

Part #	H (mm)	Insert type
0811051	6 - 16 / 56 - 66	Non-locking
0811053	16 - 26 / 46 - 56	Non-locking
0811055	26 - 36 / 36 - 46	Non-locking
0811057	6 - 16 / 56 - 66	Key locking (Keyed FH751)
0811059	16 - 26 / 46 - 56	Key locking (Keyed FH751)
0811061	26 - 36 / 36 - 46	Key locking (Keyed FH751)

CAD Downloads

Classifications

ECLASS 6.0: 23199090
ECLASS 7.0: 23199090
ECLASS 8.0: 23199090
ECLASS 9.0: 23199090
ECLASS 10.0: 23199090
ECLASS 11.0: 23199090
ECLASS 12.0: 23199090
ECLASS 13.0: 23199090
Zolltarifnummer: 83015000000
Customs Tariff Number Export: 83015000

Certificates
