Light Metal Hinge (Set)

Product information "Light Metal Hinge (Set)"

Color:
Black

Delivery Countries:
Worldwide

Description:

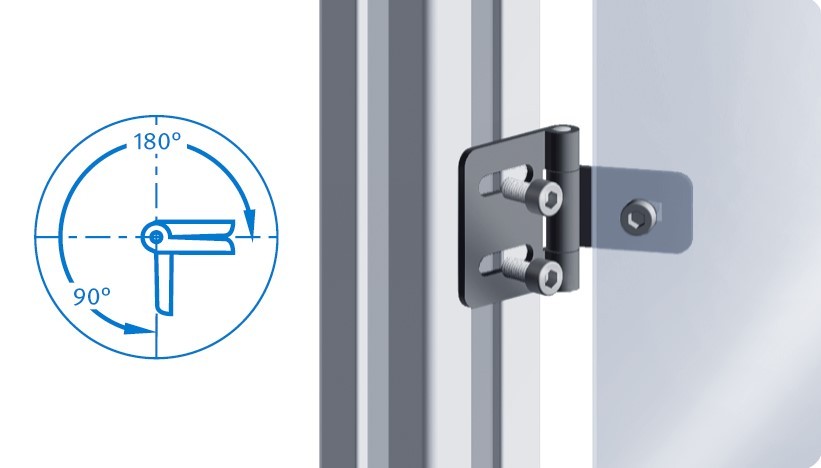

To hinge panels or aluminum profiles

Material:
Steel

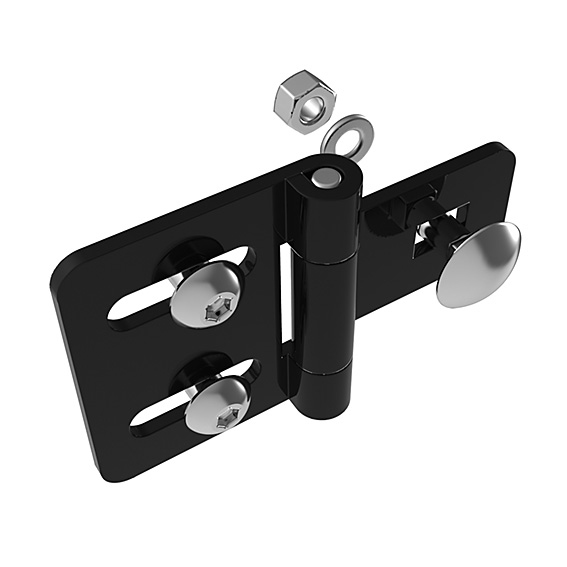

Set:
1 light metal hinge,
3 screws ISO 7380 - M5 x 8,
1 screw DIN 903 - M5 x16,
1 nut - DIN 934 - M5,
1 washer DIN EN ISO 7089 (DIN 125) Ø 5.3 - black zinc plated (RoHS compliant)

Specials:
Other surfaces, other colors on request

Surface:
Powder coated

Zolltarifnummer:
83021000900
(ECLASS 6.0): 23219090
(ECLASS 7.0): 23219090
(ECLASS 8.0): 23219090
(ECLASS 9.0): 23219090
(ECLASS 10.0): 23219090
(ECLASS 11.0): 23219090
(ECLASS 12.0): 23219090
(ECLASS 13.0): 23219090
Model: Non-detachable
Pack Quantity: 10 sets
Weight (g): 39.0

Variants

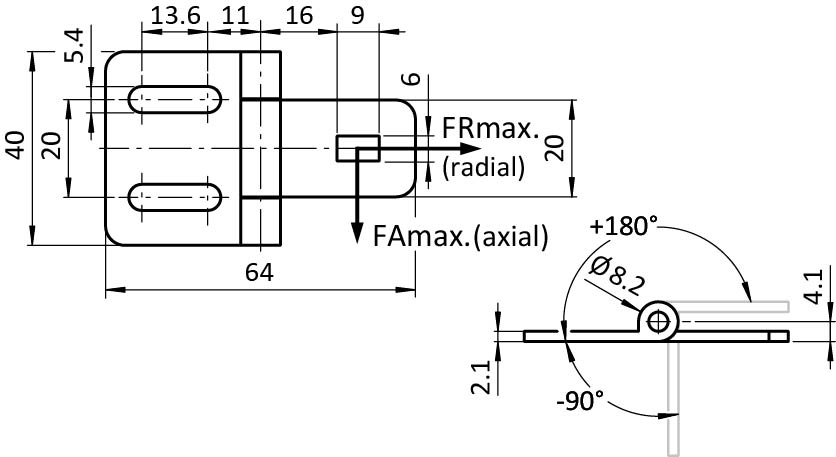

Product ID FRmax (N) FAmax (N)
095990S 75 250
