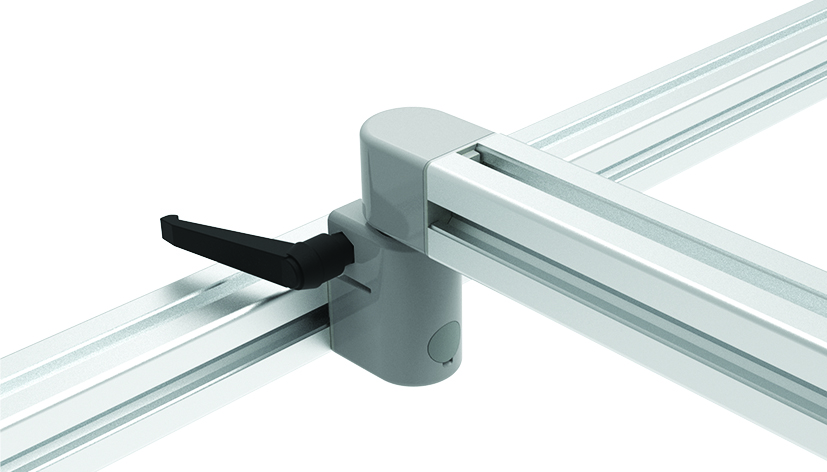

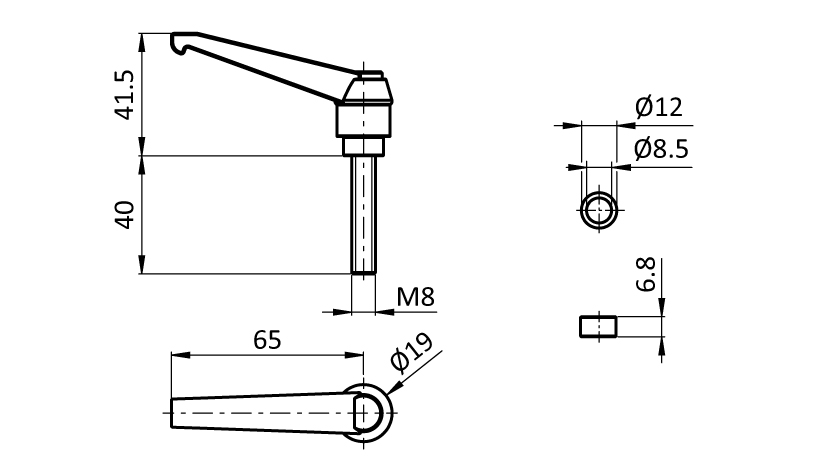

Locking Lever for Adjustable Friction Joint (Set)
€0.00
To adjust the friction without tools
Locking lever: Plastic PA
Bush: Copper
Color:
Locking lever: Black
Assembly Set:
1 bush
Tip:
Compatible Adjustable Friction Joints see 061FFZ40LN08 and 061FFZ40LN10
Delivery Countries:
Worldwide
| Pack Quantity: | 1 piece |
|---|---|
| Model: | Plastic PA |
| Weight (g): | 48.4 |
| ERP Number: | 162085 |
| Old Part #: | 041LL065K91M0840MS01 |
Product Portraits
Classifications
- Zolltarifnummer
- 73181595890
- Customs Tariff Number Export
- 73181595
Certificates
Matching accessories
Description:Connection joint with friction for the creation of system arms using profile pieces; pivotable 360°, friction is continuously adjustable via clamping screw (or optional locking lever); End side can be attached lateral or transverse on the profile slot, friction axis is positioned at right angles to the profile; Friction joint side can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: SteelSurface:Housing: Powder coated Centering plates: Powder coated Screws: Zinc plated Washers: Zinc plated T-slot nuts: Zinc platedColor:Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu colorSet:1 friction joint 2 cover caps 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut) 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole) 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 35 (for clamping 2 washers 8-FSt 2 centering plates 2 T-slot nuts - slot 10 - M8Tip:Compatible Locking Lever for Adjustable Friction Joint see 041LL065K91M840M1-Delivery Countries:Worldwide
