Low Profile Quarter Turn Lock 22.5 / 15.5

€0.00

Material

Zinc die-cast

Surface

Chrome plated

Powder coated

Color

Black

Chrome

Insert type

Long wingknob

Short wingknob

Slotted recess 2 x 4

Part #: 0811022

Pack Quantity: 10 pieces

Description:

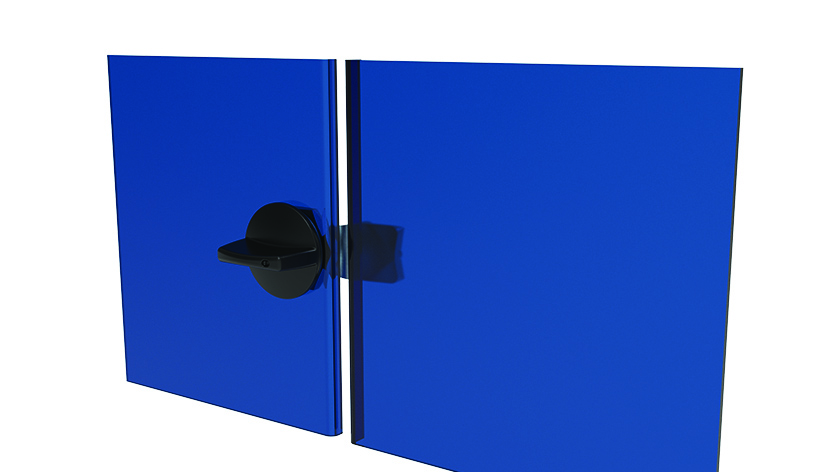

For easy and secure latching and locking of doors and flaps;
Wide range of cams and accessories

Material:
Insert: Zinc die-cast
Housing: Zinc die-cast
Seal: Rubber NBR
Nut: Zinc die-cast
Screw: Steel

Surface:
Insert: Powder coated / chrome plated
Housing: Powder coated / chrome plated
Nut: Zinc plated
Screw: Zinc plated

Color:
Insert: Black / chrome
Housing: Black / chrome
Seal: Black

Tip:
Compatible Cams see 0810247 et sq.
Accessories see 0890032 et sq.

Delivery Countries:
North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, Bulgaria

Pack Quantity:	10 pieces
Weight (g):	64.9
IP Rating:	IP65 / NEMA 4
Door Version:	Right, left
ERP Number:	139291

Variants

Part #	Material	Surface	Color	Insert type
0811017	Zinc die-cast	Powder coated	Black	Short wingknob
0811018	Zinc die-cast	Powder coated	Black	Long wingknob
0811019	Zinc die-cast	Powder coated	Black	Slotted recess 2 x 4
0811020	Zinc die-cast	Chrome plated	Chrome	Short wingknob
0811021	Zinc die-cast	Chrome plated	Chrome	Long wingknob
0811022	Zinc die-cast	Chrome plated	Chrome	Slotted recess 2 x 4
