Machine Handle 240

Product information "Machine Handle 240"

Color:
Black

Delivery Countries:
Worldwide

Description:

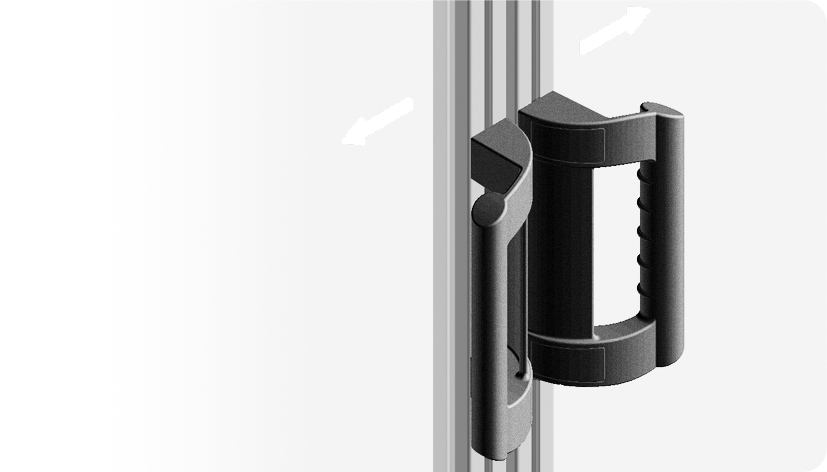

Large machine handle with ergonomic design and finger protection; to mount on doors, flaps and aluminum profiles;

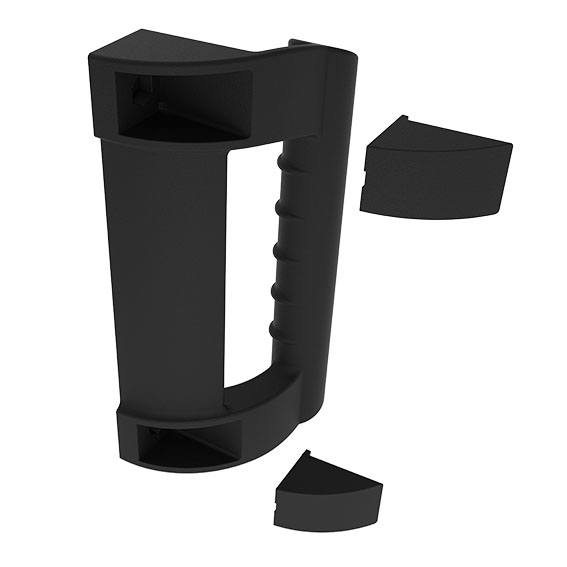

with cover caps

Material:
Plastic PA, glass ball reinforced

Specials:
ESD electrostatical discharging, other sizes, other colors on request
(ECLASS 6.0): 23010103
(ECLASS 7.0): 23010103
(ECLASS 8.0): 23010103
(ECLASS 9.0): 23010103
(ECLASS 10.0): 23010103
(ECLASS 11.0): 23010103
(ECLASS 12.0): 23010103
(ECLASS 13.0): 23010103
Customs Tariff Number Export: 39269097

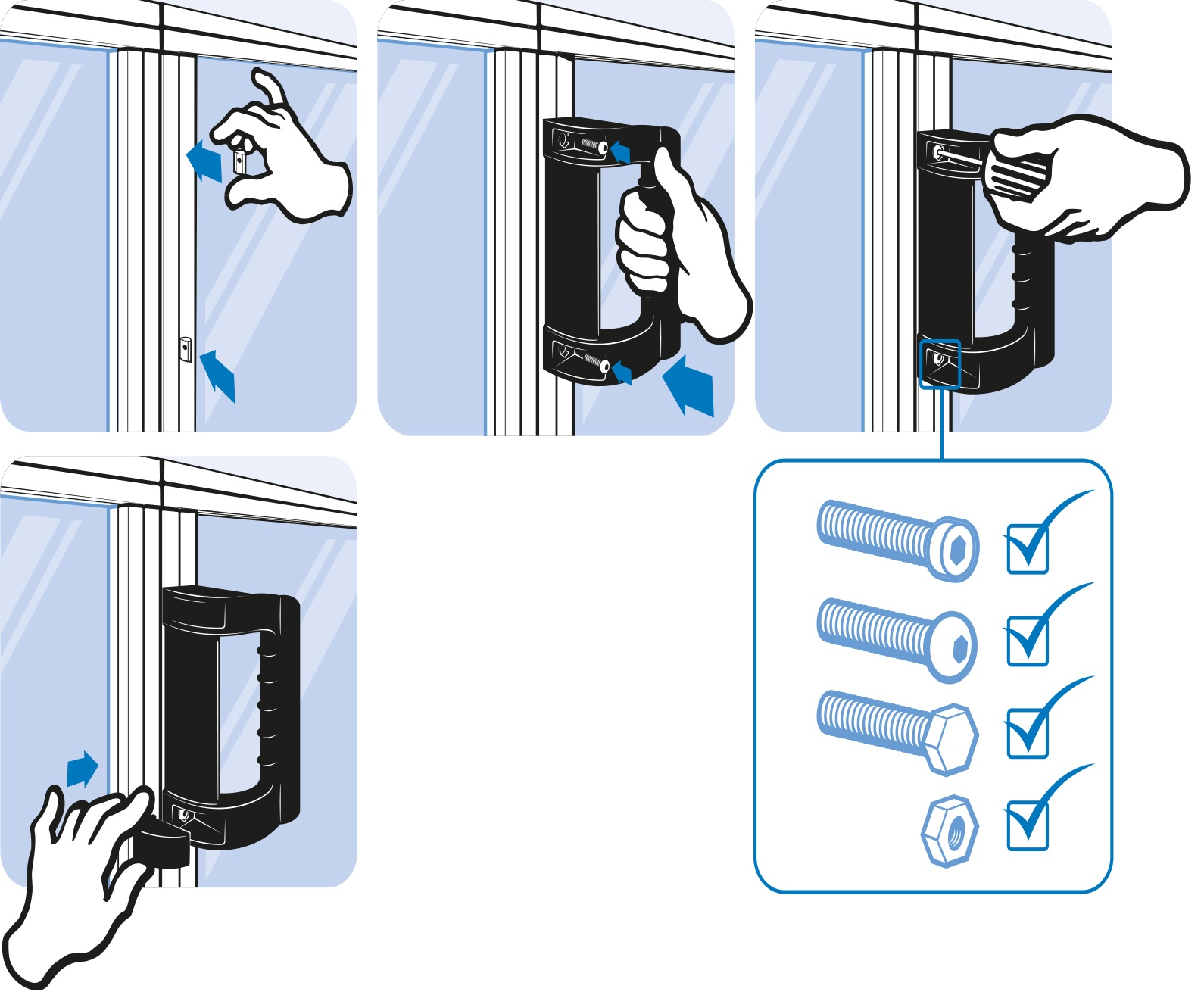

Fastening: From the front with hexagon cap screws or socket head screws, or from the back using M8 hexagon nuts and bolts
Model: Plastic PA
Pack Quantity: 1 piece
Weight (g): 356.0
Zolltarifnummer: 39269097900
pA Number: 100257

Variants

Product ID for Screw Version
092008 M8 With cover caps
